Need a replacement 22 spline birfield joint grease fitting for your 1985-1995 Suzuki Samurai? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part
Sometimes I upload things that I find personally useful but expect nobody else to use. This is one of those things.

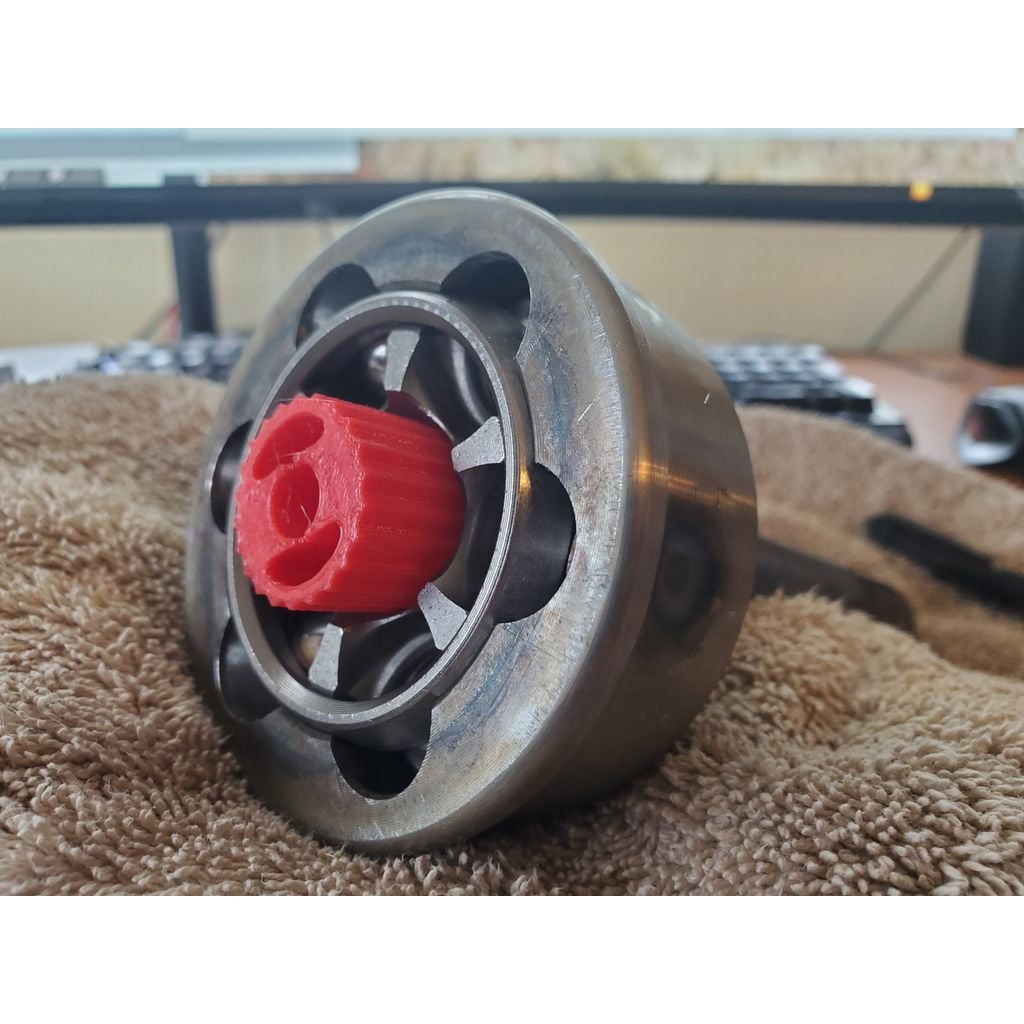

I wanted a fitting to make it easier to load grease into the 22 spline birfield joint of the front axle of my Suzuki Samurai, so I designed this.
Maybe you have the same problem, or maybe you are just interested in how to do axle splines in CAD. I did this in Autodesk Inventor, and the source file is included.
Compatible vehicles
- 1985-1995 Suzuki Samurai
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | 22 Spline Birfield Joint Grease Fitting |
|---|---|
| Make | Suzuki |
| Model | Samurai |
| Year | 1985 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-ec8ac434 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Suzuki parts
Browse all Suzuki replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
