Need a replacement a/c blend door actuator gear for your 2005-2010 Ford Mustang? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part
If you have ever tried to turn on your cars A/C or heater and heard a clicking noise, more often then not it means one of your actuators have failed. Usually one or more of the gears in the actuator fail and instead of moving to open and close blend doors, the actuator motor spins without registering a position change from the arm decoder located within the unit.

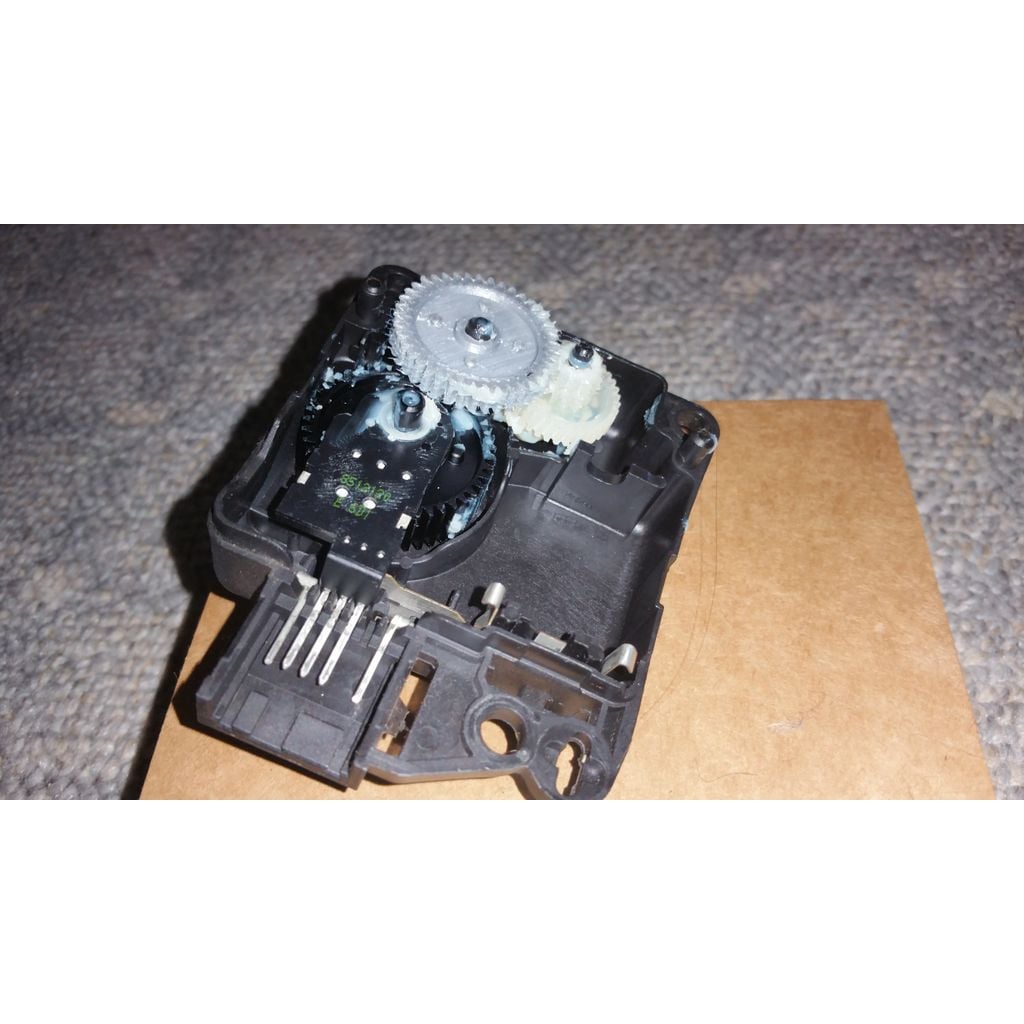

This is the center gear used inside an A/C door blend actuator in 05-10 Ford Mustangs. Drop in replacement gear saves you the money in having to order a whole new actuator. The plan is to model all the gears within the actuator so hopefully someone can repair any broken part within the gear train.
Short install walk through here:
\http://imgur.com/gallery/6jjZU
Compatible vehicles
- 2005-2010 Ford Mustang
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | A/c Blend Door Actuator Gear |
|---|---|
| Make | Ford |
| Model | Mustang |
| Year | 2005 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-3434301c |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
