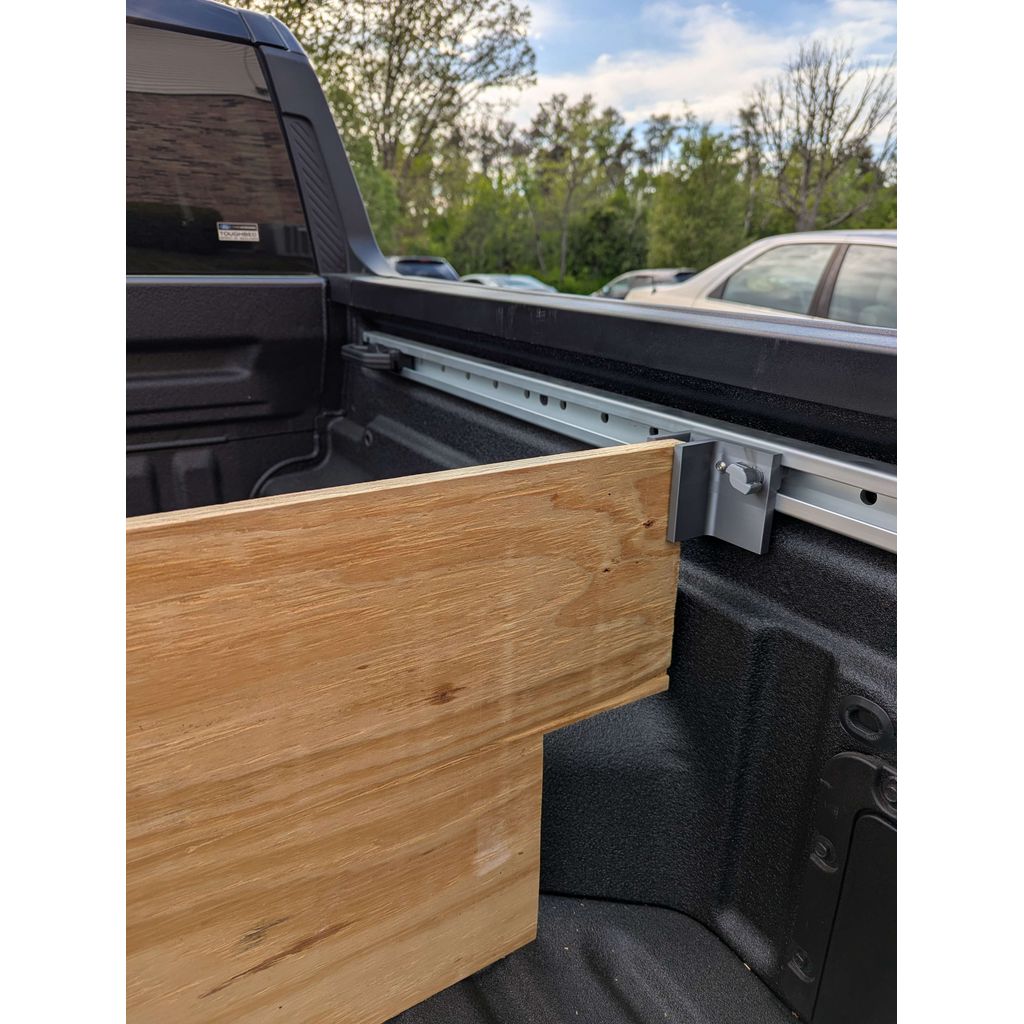

Adjustable Cargo Divider – Bed Rail Mounted – 2022 Ford Maverick

3D-printed adjustable cargo divider – bed rail mounted for the 2022 Ford Maverick, made to order as an affordable alternative to a discontinued or expensive original part.

About this part

Ford Maverick Adjustable Cargo Divider – Bed Rail Mounted
-------------------------------------------------------------------
<br/>
Looking for an affordable, customizable cargo divider for your Ford Maverick? This design provides a sturdy, adjustable solution that mounts directly to the bed rails saving you from the hefty ~$300 price tag of the OEM option.

**Features & Functionality:**
*Adjustable Design:* Uses a 3/4" plywood sheet (cut to fit your bed) slotted into brackets on both sides, keeping cargo secure. Slide it along the rails in your bed and lock the pin at any of the holes in the back of the rail to keep it in place.

*Secure Mounting:* Each side of the bed utilizes two M5x20mm bolts and two M5 nuts (4 of each required), as well as a printed pin to keep the divider from moving around

*Rail-Integrated Hardware:* The T-Nut slots into the rail. **During printing, the process is paused before the top of the hex holes are printed (layer 75 for me at 0.2mm layers) so the M5 hex nuts can be inserted before resuming.**

*Future-Proofing:* The T-Nut was designed as a separate component, allowing for future expansion or attachment of other bed rail-mounted accessories.

*PETG Recommended:* Prints should be done in PETG for durability against heat and exposure.
<br/>
*Update 5/10/25:* Lengthened the "fingers" on the left/right brackets to have them stick out a little bit more to make a more sturdy connection
<br/>
*Update 5/11/25:* Lengthened the "fingers" on the left/right brackets to 1.5", added rail insert on brackets to make installation easier.
<br/> <br/>
*This design was created based on my personal available hardware, but if there’s interest, I can modify it to accommodate different bolt sizes or configurations.*

Compatible vehicles

• 2022 Ford Maverick

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Ford parts

Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
