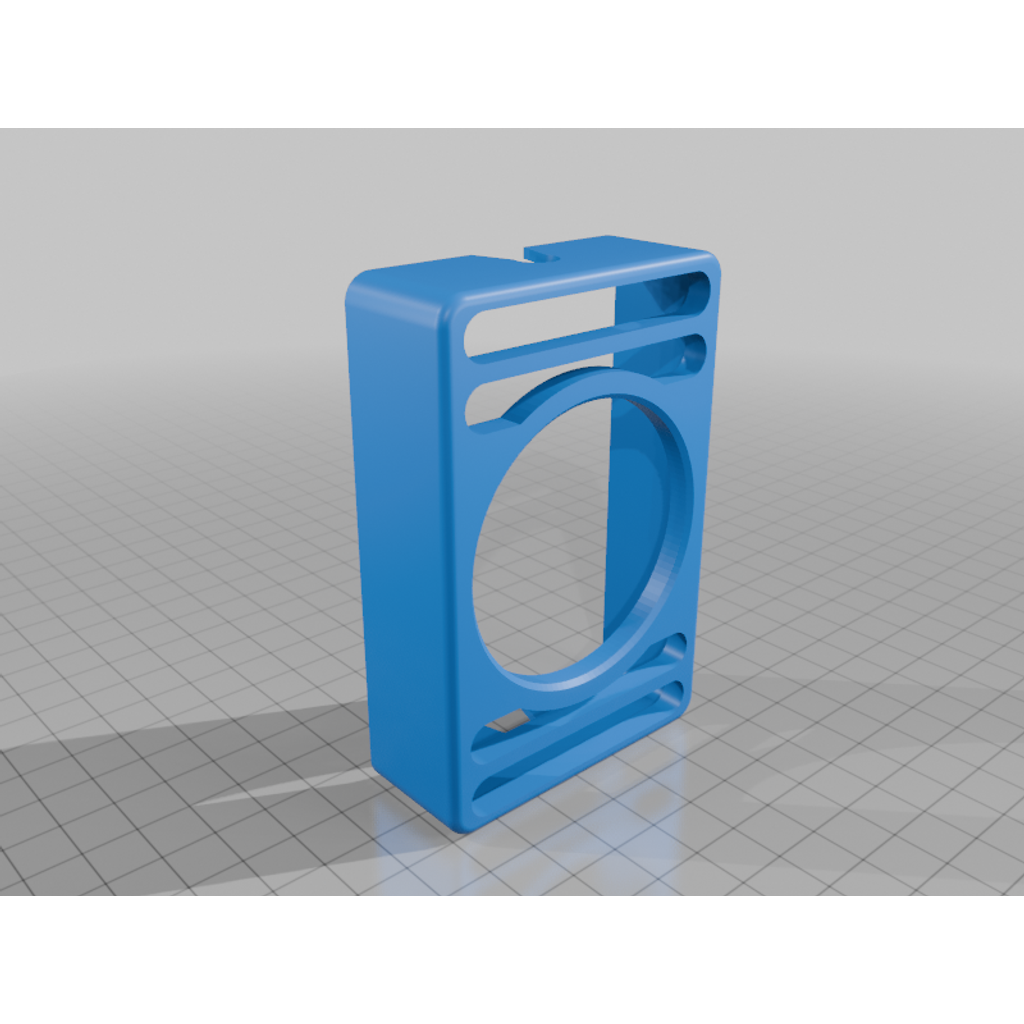

3D-printed air vent gauge mount for the 1997-2006 Jeep Cherokee / Wrangler XJ / TJ, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
Should fit dashboard side vents for '97-'01 XJ Cherokee and '97-'06 TJ Wrangler. Inspired by an existing design that was floating around (which I can't find now), but re-modeled from scratch with more robust attachment clips. FreeCAD project file included.
Print face-down without support. Should probably be printed in ABS to cope with summer heat (and winter use of the heater), but I'm YOLO-ing it with PLA for now.

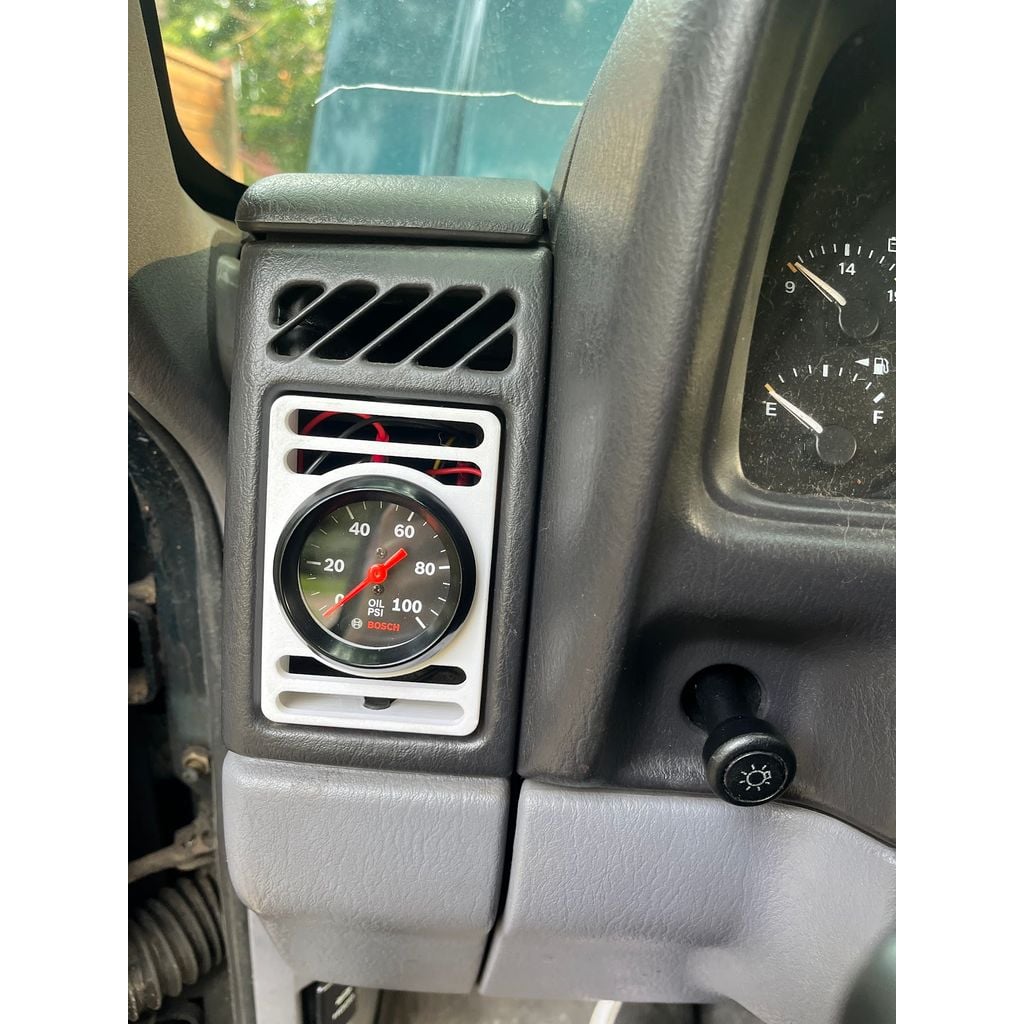

Remove the original vent by gently prying out at the top and bottom. Install this one by bending the top and bottom walls over the mounting posts. Note that the top and bottom mounting posts are different sizes - the vent can only go in one way up!
Compatible vehicles
- 1997-2006 Jeep Cherokee / Wrangler XJ / TJ
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Air Vent Gauge Mount |
|---|---|
| Make | Jeep |
| Model | Cherokee |
| Year | 1997 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-315a7909 |
Print settings
No special print instructions provided.
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
