Replace a broken or missing armrest on your 2011 Kia Picanto with this 3D-printed part, produced to order by PartsRemade.
About this part
**Armrest for 2011 Kia Picanto / Morning**

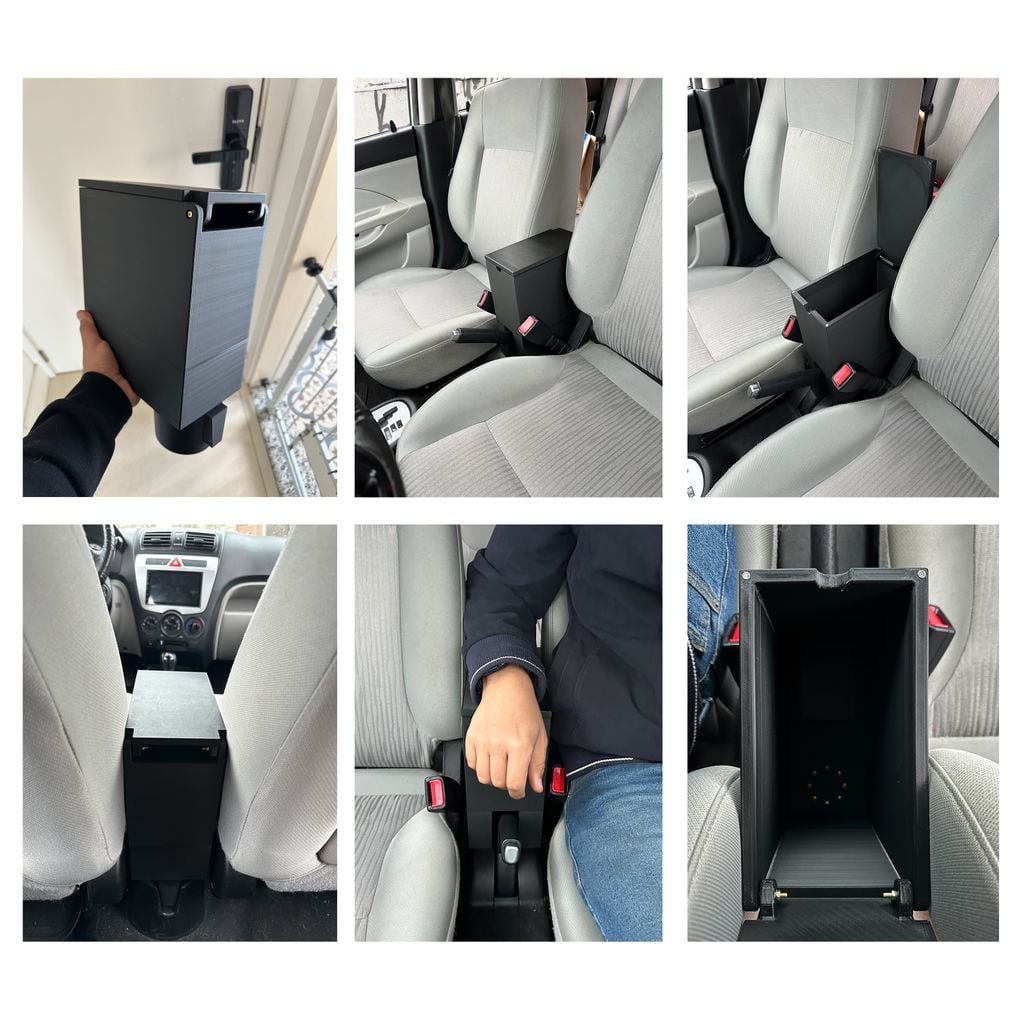

I designed and 3D printed an armrest for comfort and storage to my car (a 2011 Kia Picanto / Kia Morning). It fits well between the seats and mounts perfectly in the cup holder, without modifications to the car. The armrest has a hinged top lid for easy access to the storage compartment, with 5mm neodimium magnets to keep the lid closed, avoiding "plastic bump noises". I printed in PLA on my Creality K1C, but PETG or ASA is recommended for higher heat resistance in vehicles.
**Print configs (for PLA):**
- Printer: Creality K1C
- Slicer: CrealityPrint
- Profile: 0.2mm Standard @Creality K1C 0.4 nozzle (Generic PLA)
- Infill: 15% in 45º square grids
- Temperature: 230ºC
- Layer height: 0.2mm
- Wall loops: 2
- Supports are only needed for the Box (The Lid and the Cup don't require any support):
- Type: Tree Auto ("Normal" would exceed the maximum print size)
- On build plate only: true
- Small overhang area: 20 mm (no need for support on hinge holes)
**Other materials needed**
- 10 M3x25mm screws (+10 nuts and 20 washers)
- 8 to join the cup to the box
- 2 for the lid hinge
- 2 cilindrical neodimium magnets (h = 3mm, Φ = 5mm)
**Filament Cost**
| Part Name | Weight (g) | Length (m) | Time (hh:mm) |
|:-----------------|------------------:|----------------:|---------------------------:|
| Cup | 76 | 25.5 | 01:42 |
| Box | 707 | 237.2 | 13:49 |
| Lid | 98 | 32.9 | 1:48 |
| **Total** | **881** | **295.6** | **17:19** |
Compatible vehicles
- 2011 Kia Picanto
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Armrest |
|---|---|
| Make | Kia |
| Model | Picanto |
| Year | 2011 |
| Production | 3D printed to order (FDM) |
| Design files | 3 (STL) |
| Part number | CAT-5a19a795 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
