Replace a broken or missing armrest delete cover on your 2013 Fiat 500 with this 3D-printed part, produced to order by PartsRemade.
About this part

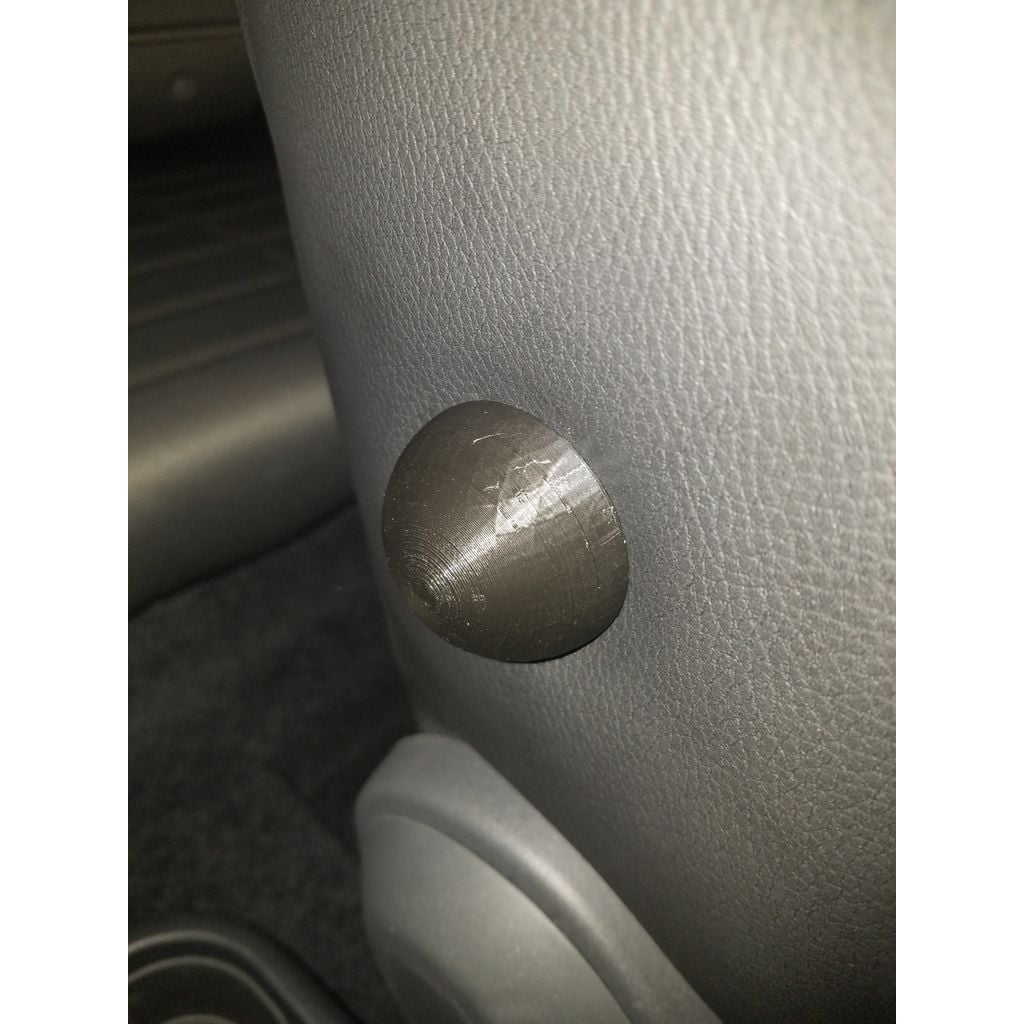

This is a "cover" for the armrest mounting pole in the 2013 US model Fiat 500 (and other models that use the same armrest mount)
Removing the armrest is a simple matter of pushing the seat material in far enough to remove a retaining clip. But this leaves a hole in the seat with a post protruding about 20mm.
This fixes that problem using the same retaining clip, with no permanent damage to your seat or armrest.
I have also included the files for the coupler only. Just in case you want to put something other than a dome there. Keep in mind you will still need to provide a hole for the post (12mm dia, 20mm deep)
My design is not a load bearing one, so your print settings should not matter structurally. Just print it so it looks good enough for you. I printed it oriented as a "mushroom" so that the "bottom" would be pressed against the seat. That way I could be sloppy removing the supports. and the dome would still look decent even with a quick print.
Compatible vehicles
- 2013 Fiat 500
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Armrest Delete Cover |
|---|---|
| Make | Fiat |
| Model | 500 |
| Year | 2013 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (STL) |
| Part number | CAT-a752c04e |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Fiat parts
Browse all Fiat replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
