Need a replacement ashtray replacement panel (nos control unit housing) for your 2003-2008 Mazda Rx-8 Gen 1? This 3D model lets you print a replacement for a broken, worn or missing original piece.
About this part
I wanted a nice and clean installation for my Nitrous Oxide System in my Mazda RX-8. My installation has the following components:
- Main kit
- Bottle heater
- Purge
- NOS pressure sensor and gauge
- Fuel pressure sensor and gauge
- Oil pressure sensor and gauge
- Oil temperature sensor and gauge
Each components comes with wires and switches, so at the end of the day you end-up with a cockpit full of holes and different looking switches all over the place.

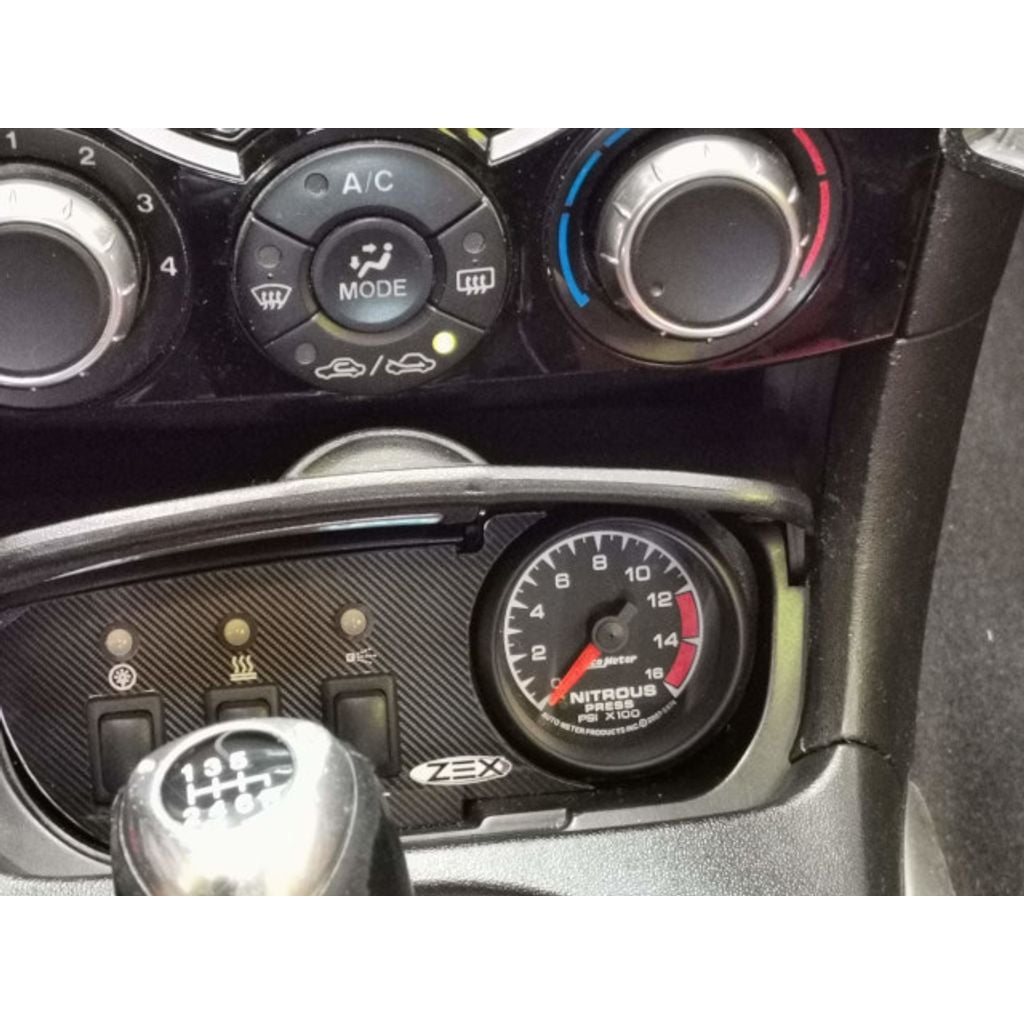

My goal for this project was to have all the system controls nitrous gauges at the same place, under the original ashtray cover. I wanted also something that was easily serviceable. For example if I need to remove a sensor, I should be as easy as any other factory components.
There is two 3D printed components, one for the main control board enclosure and the other one for the head unit, in place of the ashtray. The parts were printed in ASA since it can support high and freezing temperature without deforming.
The electrical design is available [here](https://github.com/topolittle/nitrous-setup-rx8) on GitHub
Compatible vehicles
- 2003-2008 Mazda Rx-8 Gen 1
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Ashtray Replacement Panel (nos Control Unit Housing) |
|---|---|
| Make | Mazda |
| Model | RX-8 |
| Year | 2003 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 4 (STL) |
| Part number | CAT-29f7c6a0 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
