Auxbeam Ra60 6-gang Switch Panel Mount – 2010-2024 Toyota 4runner 5th Generation

3D-printed auxbeam ra60 6-gang switch panel mount for the 2010-2024 Toyota 4runner 5th Generation, made to order as an affordable alternative to a discontinued or expensive original part.

About this part

This is a solution for those who want to install an Auxbeam 6-gang auxiliary switch panel but do not want to drill holes into their dash for mounting brackets. This simply inserts into an already existing blank switch spot.

It was designed around the Auxbeam RA60 but might work with other models and could fairly easily be adapted to fit an 8-gang panel.

The self-tapping screws that were included with the switch panel were used to mount the two printed parts together as well as the included small screws to mount the bracket to the switch panel itself. After assembly, remove the blank switch and insert this one into the dash. The round cutout is used to run the wire behind the dash.

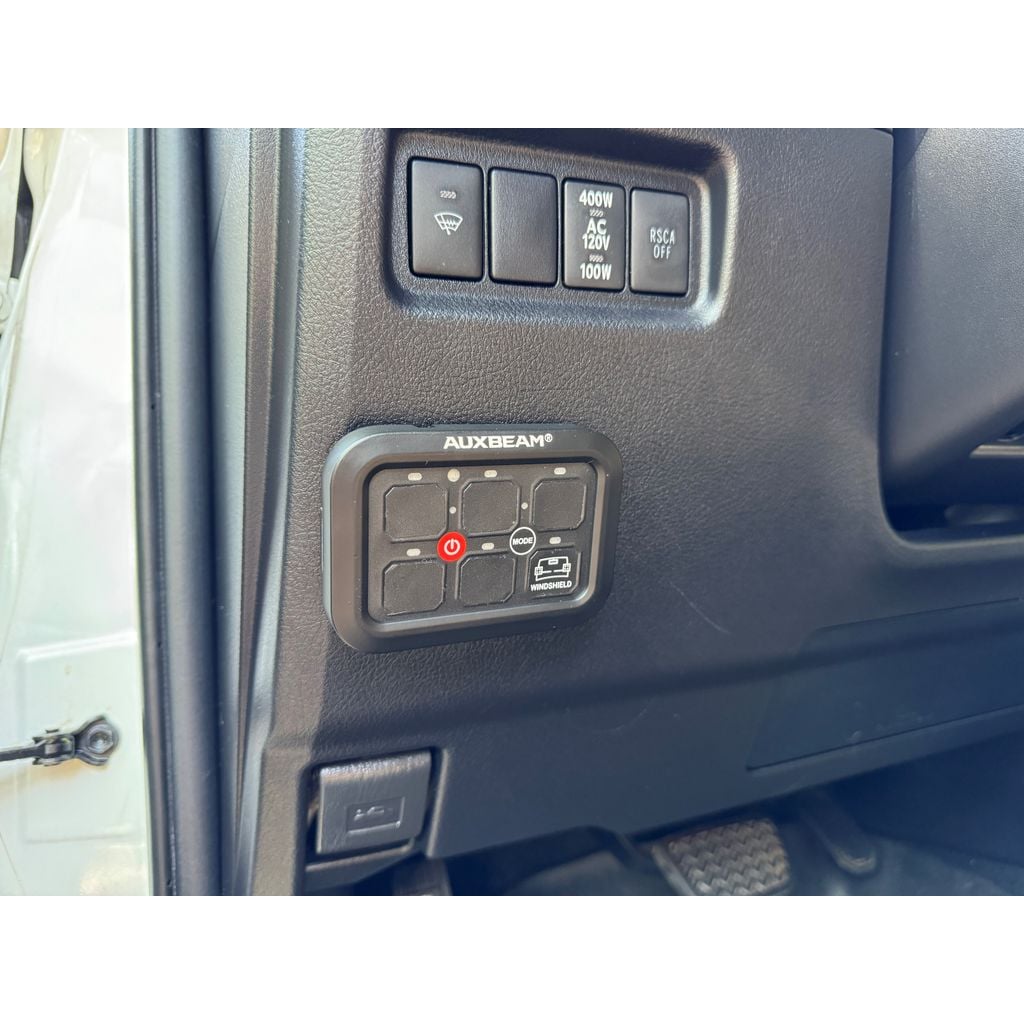

While originally designed for the blank switch location pictured in a 5th-generation 4Runner, this will likely work in other Toyota models and spots, provided the removed switch size is roughly 33mm x 22mm.

Thanks to user "tiggerrr" for designing the original blank switch part. I just modified it for my use and created the bracket to be used with it.

Compatible vehicles

• 2010-2024 Toyota 4runner 5th Generation

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Toyota parts

Browse all Toyota replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
