3D-printed replacement battery hold down made for the 1994 Lexus Sc400 Z30: a simple way to replace a cracked, lost or hard-to-find original part.
About this part

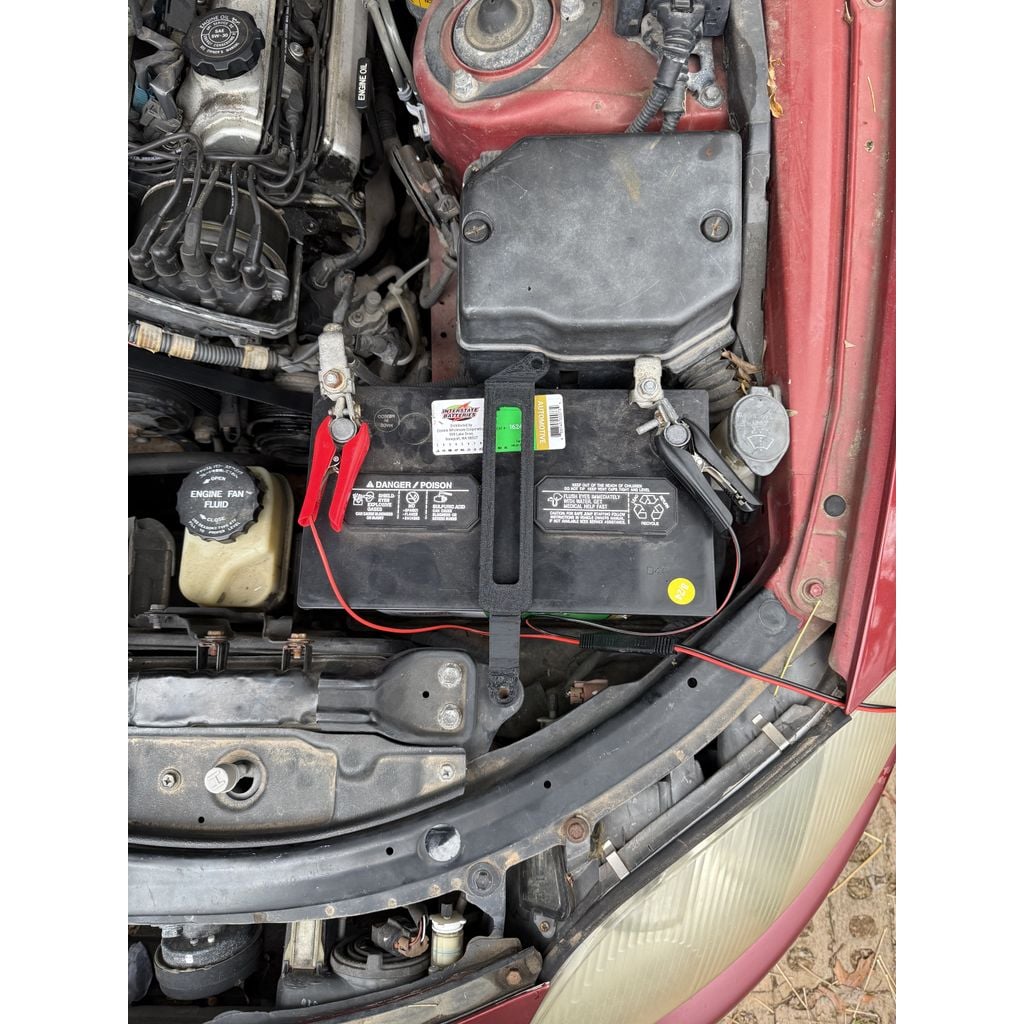

This is a quick and dirty battery hold-down design that I made recently for my 1994 Lexus SC400 which didn't come with one when I bought it.
This hold-down is designed to work with group 27F size batteries (although YMMV since some batteries are larger than others. Spacers can be used to make it fit larger batteries if needed). I also used the 8" j-bolts shown in the photo gallery for the battery tray side, although the hook part needed some bending to go into the hole on the SC's battery tray.
I printed this with supports enabled on my Ender 3 V3 SE with a failing mainboard, so my print came out pretty poorly in PETG. I recommend printing it on its side so that the layer lines are less likely to separate when tightening the bolts. As a sidenote as well, I would also recommend using ABS to print this, as engine bays can get very hot, I will run this for a few months on PETG and update to see if it's held up at all.
Compatible vehicles
- 1994 Lexus Sc400 Z30
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Battery Hold Down |
|---|---|
| Make | Lexus |
| Model | SC400 |
| Year | 1994 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-c5e7c2be |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
