Battery Hold Down Clamp – 2008 Lotus Elise (SC)

3D-printed battery hold down clamp for the 2008 Lotus Elise (SC), made to order as an affordable alternative to a discontinued or expensive original part.

About this part

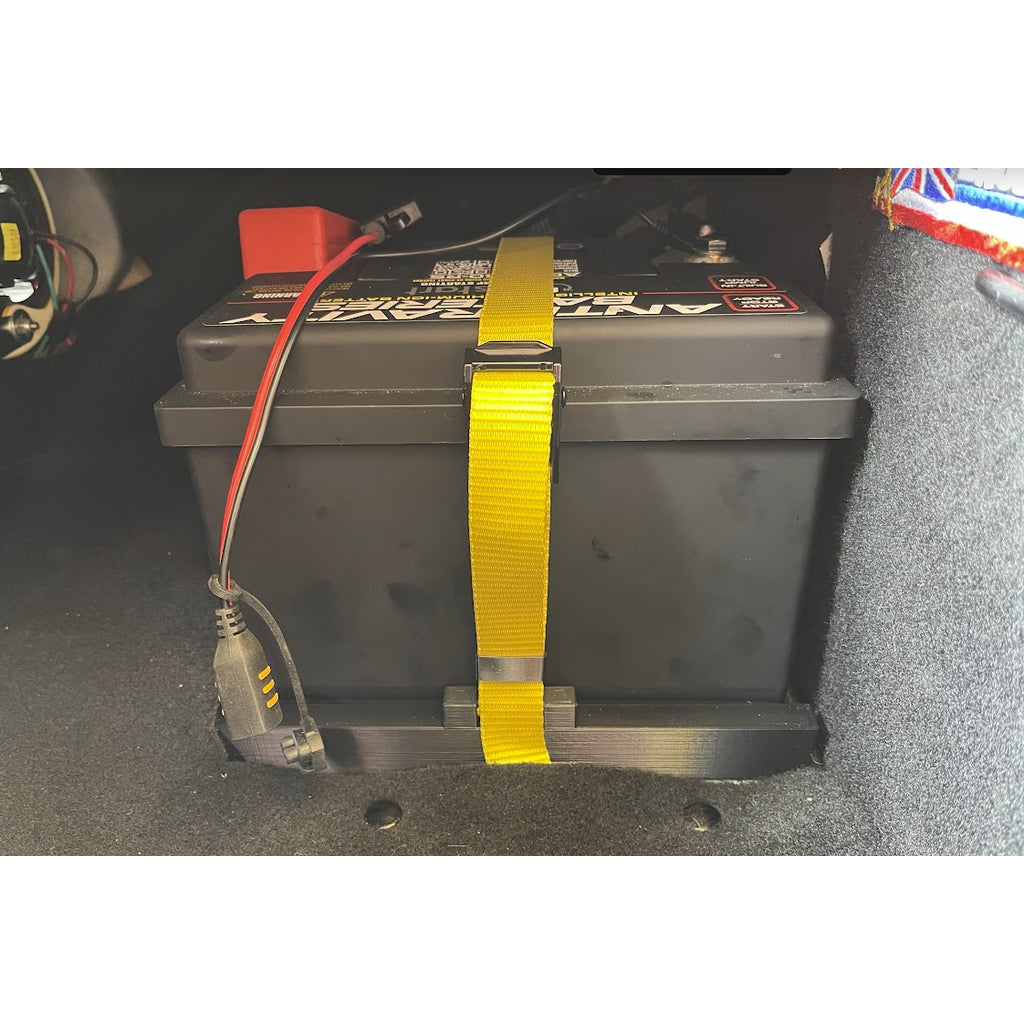

This model provides a 3D printed hold down mechanism for the Antigravity H5/Group 47 Lithium Car Battery in a 2008 Lotus Elise SC. It also fits a Bosch H5-650B lead acid battery, which is likely now obsolete.

The Antigravity H5/Group 47 Lithium Car Battery is a 12 volt battery that is the same size as a standard H5 or Group 47 car battery, but weighs just 14.25 pounds and delivers 1500 cranking amps. However, even though this reduced the weight of a lead acid battery (weighing over 33 lbs), the OEM Lotus Elise hold down clamp may not retain a H5/Group 47 battery securely.

Note that the Lotus Elise is a hand-build car and the attachment points might vary from car to car. No guarantee is made that the clamps will line up with the boltholes on all cars.

The clamp components are printed in ABS. However, the band loop to secure the end of the tie down is printed in TPU. The cap screws are M5x50 with stainless lock nuts. The tie-down strap is modified by cutting off one hook with a hacksaw and then shortening the strap.

Compatible vehicles

• 2008 Lotus Elise (SC)

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Lotus parts

Browse all Lotus replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
