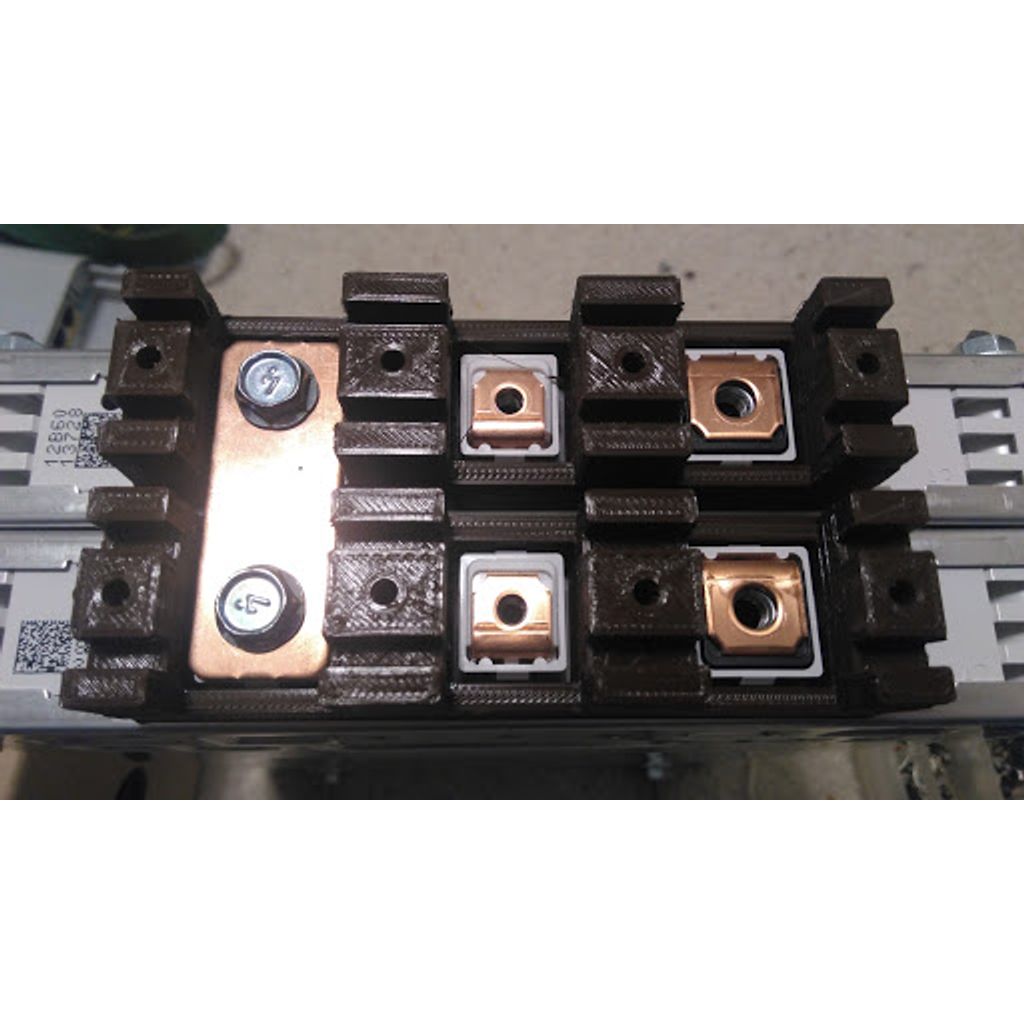

Battery Module Terminal Bracket – 2011-2026 Nissan Leaf

3D-printed battery module terminal bracket for the 2011-2026 Nissan Leaf, made to order as an affordable alternative to a discontinued or expensive original part.

About this part

This is another take on protection for NIssan Leaf battery module terminals. There are several designs posted here already, mine was intended to address a few caveats:

- Bracket is per module. Combine as many as you like for parallel or series
- Bracket is easier to retrofit onto existing packs module per module, don't need to disconnect everything at once
- Bracket allows for any spacing between modules
- Bracket has plenty of openings for running BMS and power wires
- Bracket is designed for a fairly tight fit without wobble when pinned by the bus bars. There is a notch on the bottom of one side that needs to be aligned with the correct terminal
- Once assembled, is easily closable by screwing a piece of plastic across, such as plexiglass

Note that this was tested with Gen2 modules, but may also work with Gen1.

2021-06-07 update: added 14 module cover model for laser cutting

Compatible vehicles

• 2011-2026 Nissan Leaf

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
