3D-printed bits to electrify the il motorsport console light for the 1989-1997 Mazda Mx-5 Miata NA, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
Consider this newer design that doesn't require the il Motorsport light and is nicer and less expensive. It also incorporates glasses holders.
https://www.thingiverse.com/thing:7168050
The Il Motorsport console is a great console. It has some cool accessories, including a 12v battery powered light that turns on when the lid is opened. It is very bright and cold harsh light. The below allow you to use dimmer/warmer leds and connect it to the lighting circuit of the car, using the ashtray light harness from the oem console. You can probably do either of these mods if you like the quality of light or don't mind occasional battery replacement.

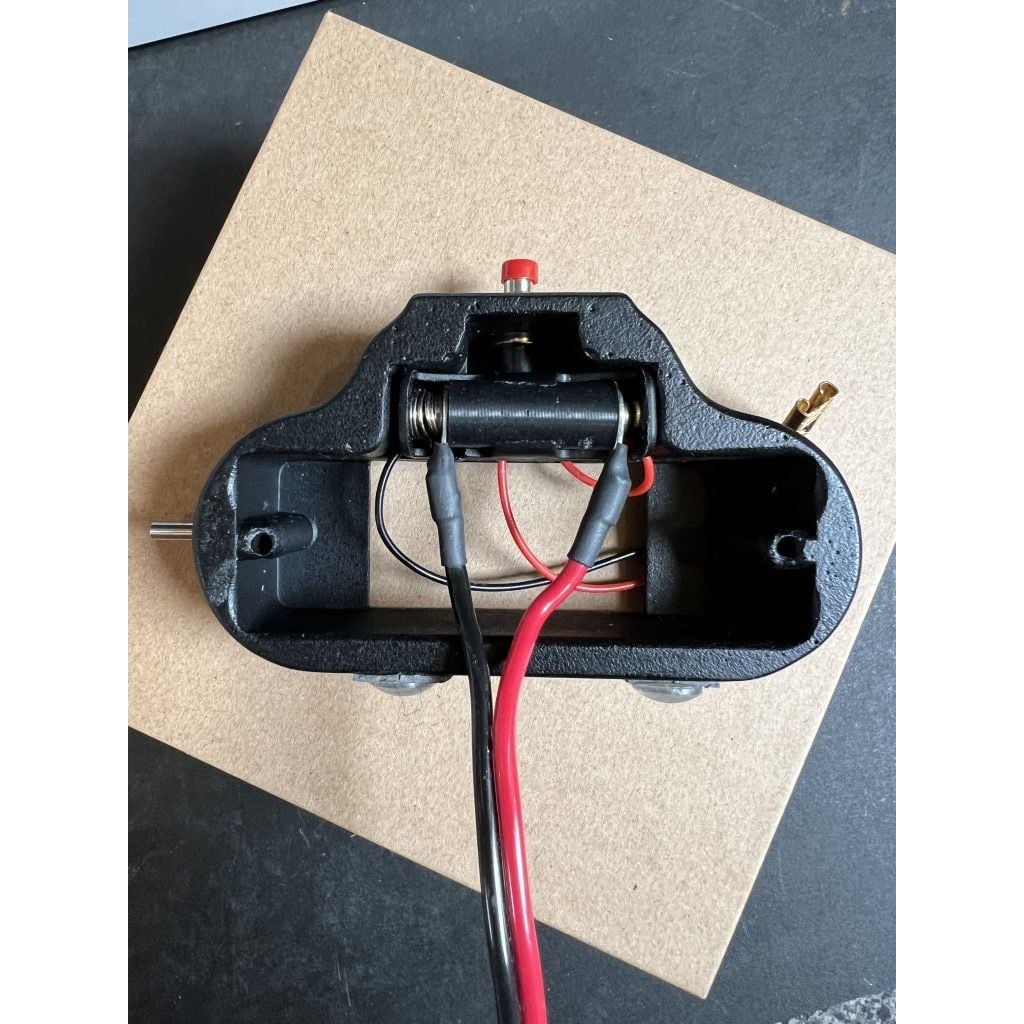

1 is a dummy MN21/23 battery that is used to bring 12v from the ashtray light connector on the OEM console to the accessory light for the popular aftermarket Il Motorsport console.
Use small ring terminals and short screws, I think #4 x .25" to connect the wire to each end.
2 is a replacement card for the led circuit board insert. It fits in the lamp assembly like the original board. It has 4 notches to allow two small zip ties to secure 3 new dimmer/warmer LED modules. The notches are spaced so the zip ties fit between the leds on the new led modules. There is a square hole that accomodates the led module wires and the largest component on the rear of the new modules.
Harvest the modules from these lights:
https://www.superbrightleds.com/miniature-rectangle-led-accent-light-24-lumens
Compatible vehicles
- 1989-1997 Mazda Mx-5 Miata NA
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Bits To Electrify The Il Motorsport Console Light |
|---|---|
| Make | Mazda |
| Model | MX-5 Miata |
| Year | 1989 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (STL) |
| Part number | CAT-79ba1355 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
