Replace a broken or missing cable throttle conversion on your 2003-2012 Mazda Rx-8 with this 3D-printed part, produced to order by PartsRemade.
About this part

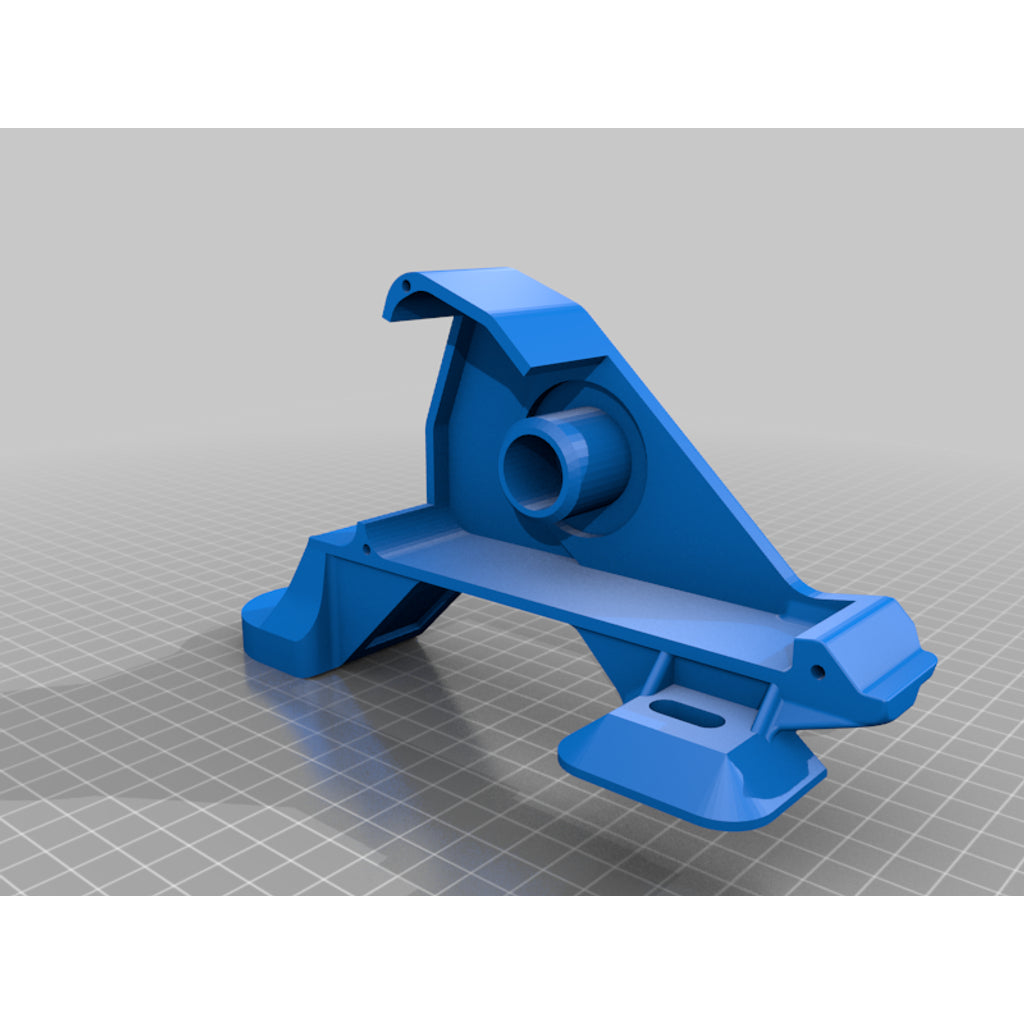

This is a conversion housing as well as an extension arm for converting the RX-8 throttle to Drive by Cable. Should be pretty straight forward, stock pedal arm will need some modification in the form of cutting away the ''toothed'' inner section of hinge, hole drilled for 10/24 bolt and riv-nut, as well as hole cut for return spring relocation.
Its functional for now, though I am sure there's room for modification. Uses one 10/24 allen head bolt, one 10/24 riv-nut, three m3x12 bolts(your choice of length). Offers about 60mm of cable travel. In my case drives a Holley 92mm throttle body perfectly. testing with PLA+, might be better served using PETG.
STEP & STL.
Compatible vehicles
- 2003-2012 Mazda Rx-8
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Cable Throttle Conversion |
|---|---|
| Make | Mazda |
| Model | RX-8 |
| Year | 2003 |
| Production | 3D printed to order (FDM) |
| Design files | 5 (STEP, STL) |
| Part number | CAT-688b7c80 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
