Cargo Cover Button Linkage And Eject Block – 1998-2004 Audi A6 C5 (Avant / Allroad / S6 / RS6)

Need a replacement cargo cover button linkage and eject block for your 1998-2004 Audi A6 C5 (Avant / Allroad / S6 / RS6)? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

Does your Audi C5 avant (allroad/A6/S6/RS6) cargo cover have broken ends or missing internal parts? I CNC machine replacement endcaps from 6061 aluminum - contact for pricing/availability.
Here are 2 commonly lost interior parts for the right (button side) that you can 3d print.
NOTE:

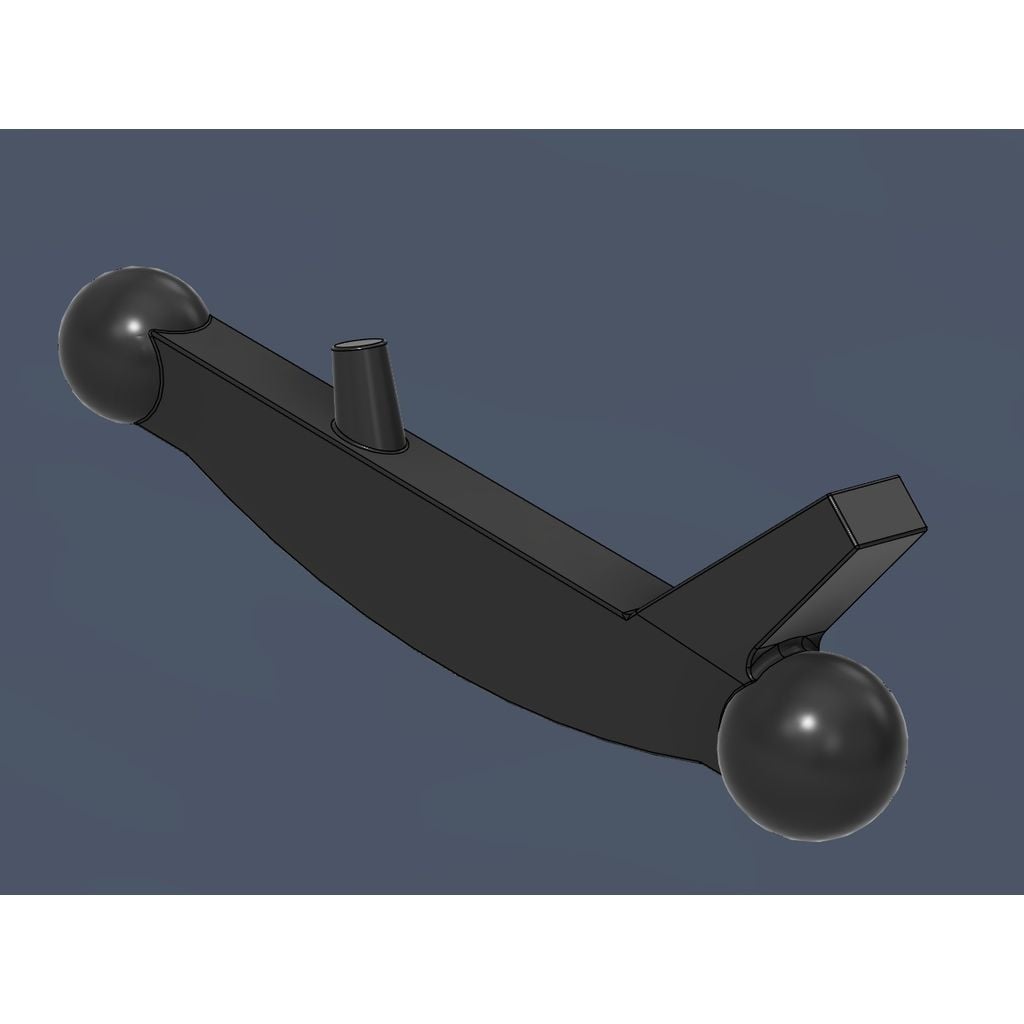

1. The linkage should be made from something structurally rigid, as it is subject to high compression forces. Finished print should measure 34.5mm L x 13mm H x 3.5 W (the angled rectangular portion). The ball ends should be 6mm and 5mm respectively. A "close enough" return spring can be sourced from McMaster-Carr p/n 8969T122.
2. The eject block finished print should measure 14.75mm L x 15.5mm W x 15.25mm H with a 10.5mm diameter hole. The closest approximation to the spring for this part needs to be cut to length (30mm with ends bent/flattened so they are parallel) from McMaster-Carr p/n 96565K32.

Compatible vehicles

• 1998-2004 Audi A6 C5 (Avant / Allroad / S6 / RS6)

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Audi parts

Browse all Audi replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
