Ccv Vacuum Fitting – 1997-2006 Jeep Wrangler TJ

3D-printed ccv vacuum fitting for the 1997-2006 Jeep Wrangler TJ, made to order as an affordable alternative to a discontinued or expensive original part.

About this part

This was made for a 4.0 engine, I'm not sure if it is useful for a 2.5 or any other engine.

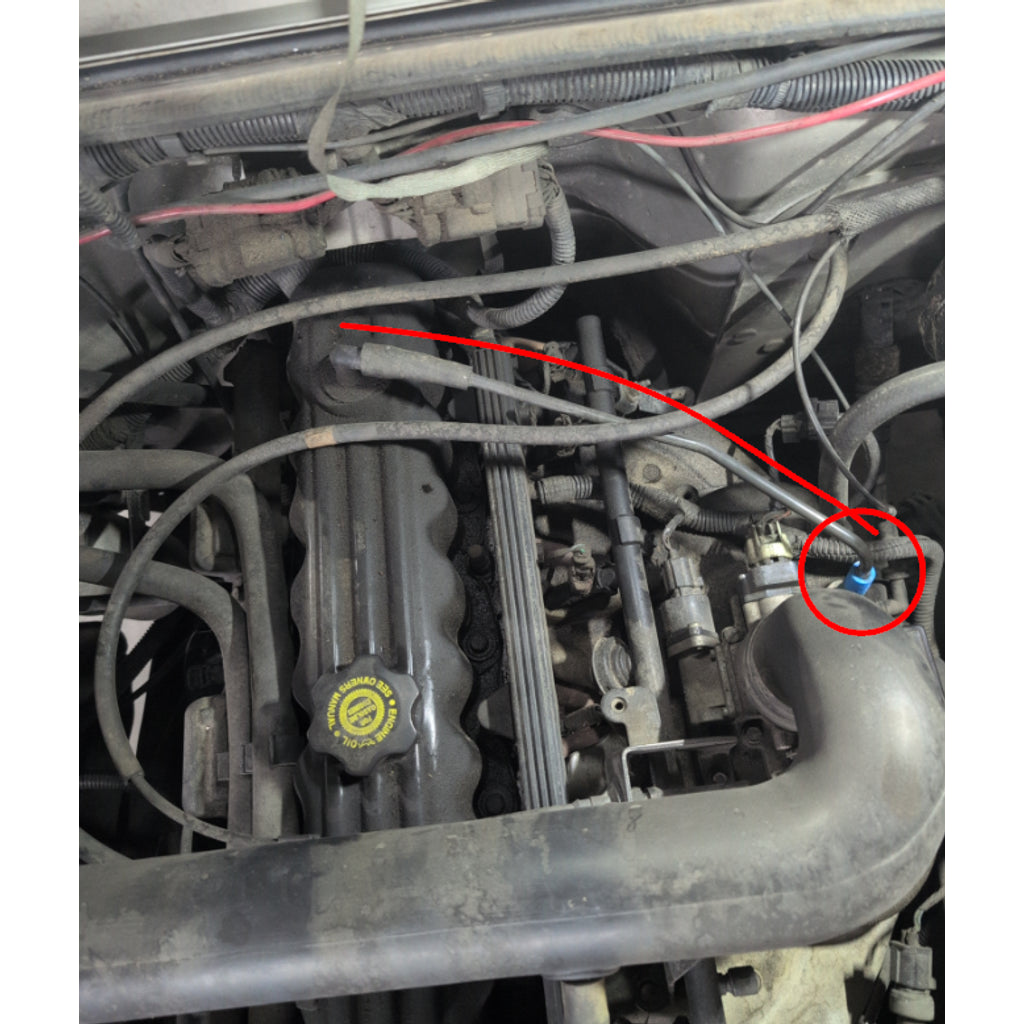

This is a printable (using TPU) connector for the vacuum line that connects to the manifold behind the MAP sensor. The vacuum line runs to the top of the valve cover. This printable item is the blue thing in the photos.

I was driving down the road and noticed my Jeep was idling high. When I looked under the hood, I saw the factory rubber fitting had split and the vacuum line was hanging loose. I taped the rubber fitting up and stopped at a parts store but they couldn't find it in their database. I thought a piece of 3/8 hose would work but it turns out that the nipple on the manifold and the vacuum line are two different sizes, so I went home and printed this out of TPU.

The vacuum line and the manifold nipple are basically tubes but they have bulges going around them to help hold a fitting on them, and I made a groove on the inside of this piece. I didn't measure it to make the bulges fit into the groove precisely or anything, I just slapped a groove in there that kinda looked like it might be close to the same size. I have no idea how it fits internally, but it does fit really tight. Once it's on, it's not going anywhere.

I'm not sure if this is a longtime solution, but the melting point of TPU is around 350-400F. I made this in spring and it has survived many 95+ summer days which are a lot hotter under the hood.

Later, I found that this piece comes with the vacuum line and the part number is 4854265. It's about $40. It looks like Dorman 47128 but the Dorman doesn't fit.

Compatible vehicles

• 1997-2006 Jeep Wrangler TJ

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Jeep parts

Browse all Jeep replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
