Center Console Armrest Lid Latch – 2010-2015 Ford F-150
Center Console Armrest Lid Latch – 2010-2015 Ford F-150

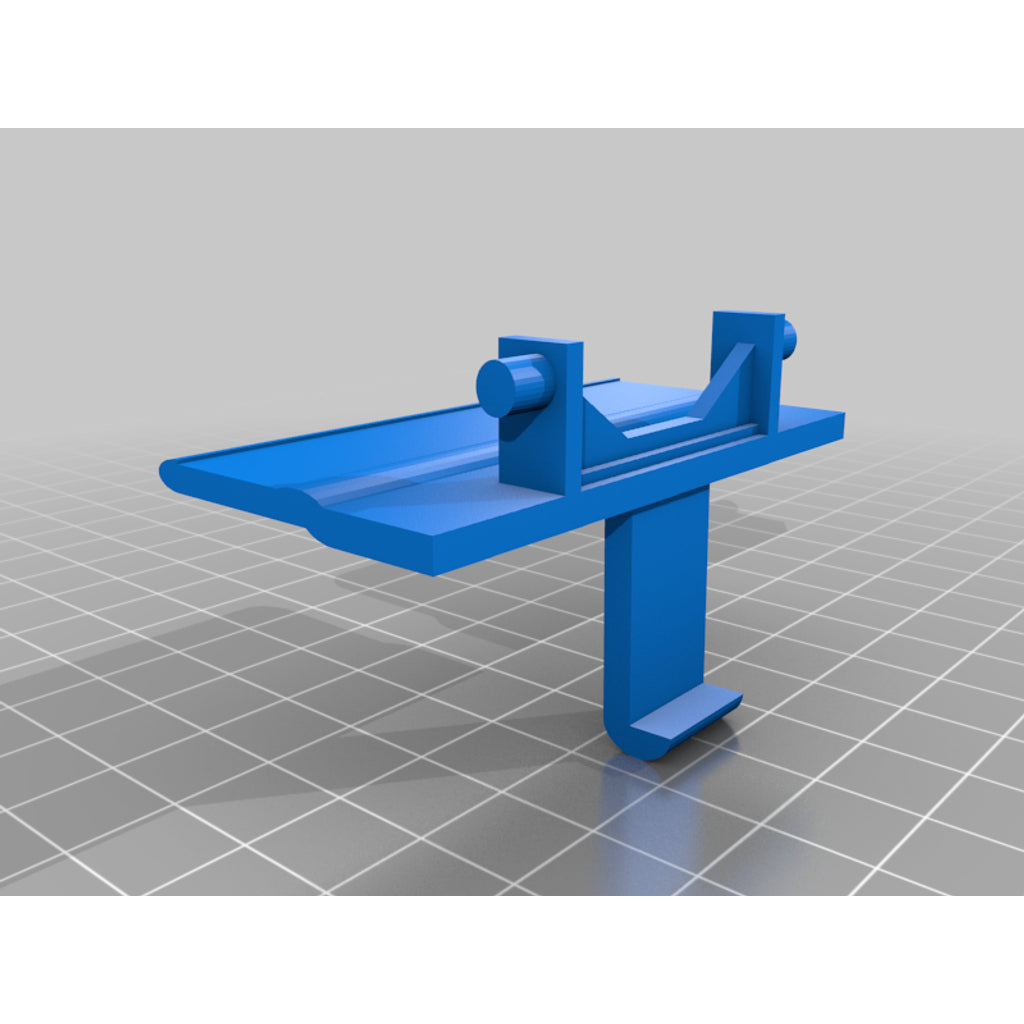

3D-printed replacement center console armrest lid latch made for the 2010-2015 Ford F-150: a simple way to replace a cracked, lost or hard-to-find original part.
About this part
I broke my original latch on my 2012 F-150. I remixed this and made the pins braces a little narrower to make it easier to put in i also removed the 3d printed spring part and reinforced the pins instead this was still a very tight fit you might need to still sand the pins down shorter. might modify more if it breaks in future. A paper clip spring will work but If you have original spring, use that instead. attached is a youtube of how to install the latch i do not own this video.
https://www.youtube.com/watch?v=ic1-wjW6yOk
Compatible vehicles
- 2010-2015 Ford F-150
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Center Console Armrest Lid Latch |
|---|---|
| Make | Ford |
| Model | F-150 |
| Year | 2010 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-eab96d5d |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
