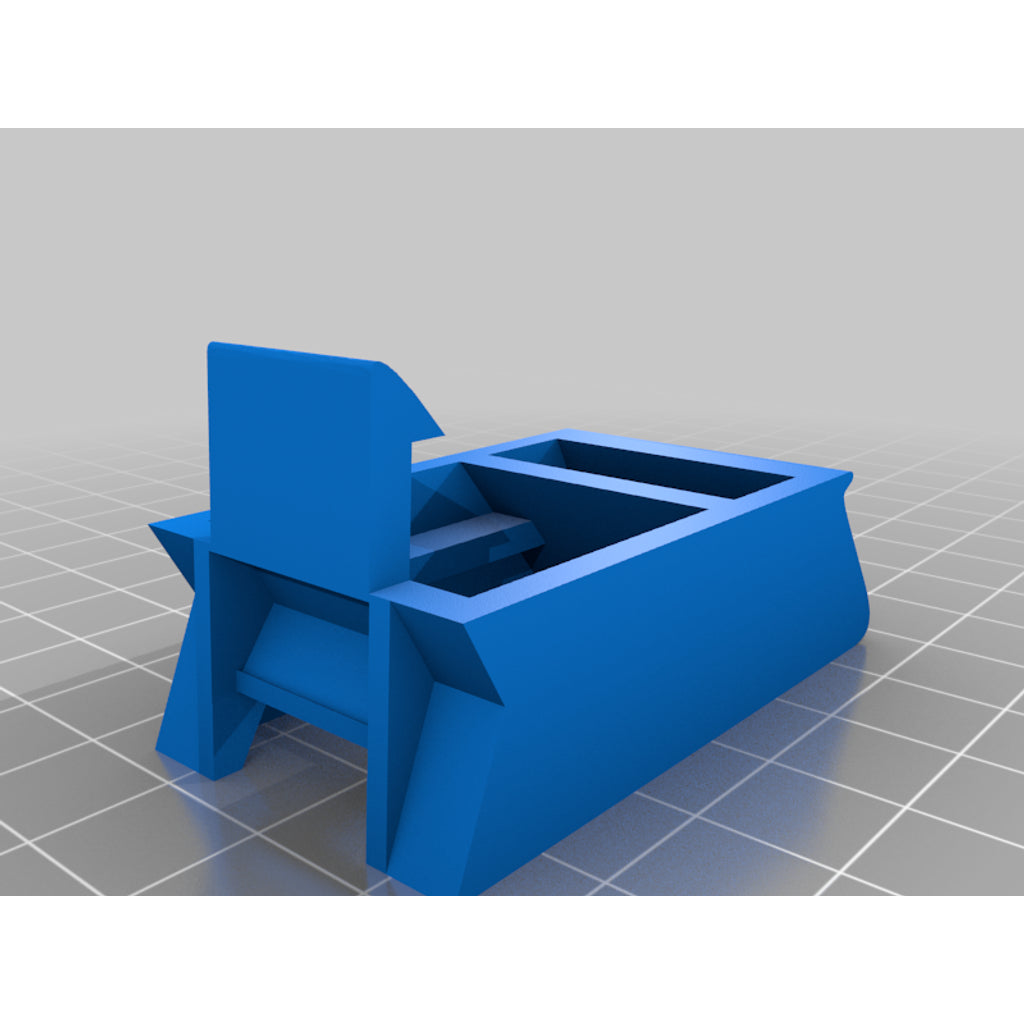

3D-printed center console latch for the 1987 Jeep Cherokee XJ, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
Center latch was broken on my '87 XJ before I bought it . Designed this one off of pictures online and the pieces left.
Printing:
Needed to add a brim to keep the back corners from peeling up and a support for the clip edge.
Notes:
-The sides don't have the taper as the original did but some sanding should fix that. It works fine as is.
-This is only the main latch body. There is also a metal clip/spring and a center plastic slider that make up the entire latch.
Compatible vehicles
- 1987 Jeep Cherokee XJ
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Center Console Latch |
|---|---|
| Make | Jeep |
| Model | Cherokee |
| Year | 1987 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-ee29c94e |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
