Center Console Latch – 1997-2001 Jeep Cherokee XJ
Center Console Latch – 1997-2001 Jeep Cherokee XJ

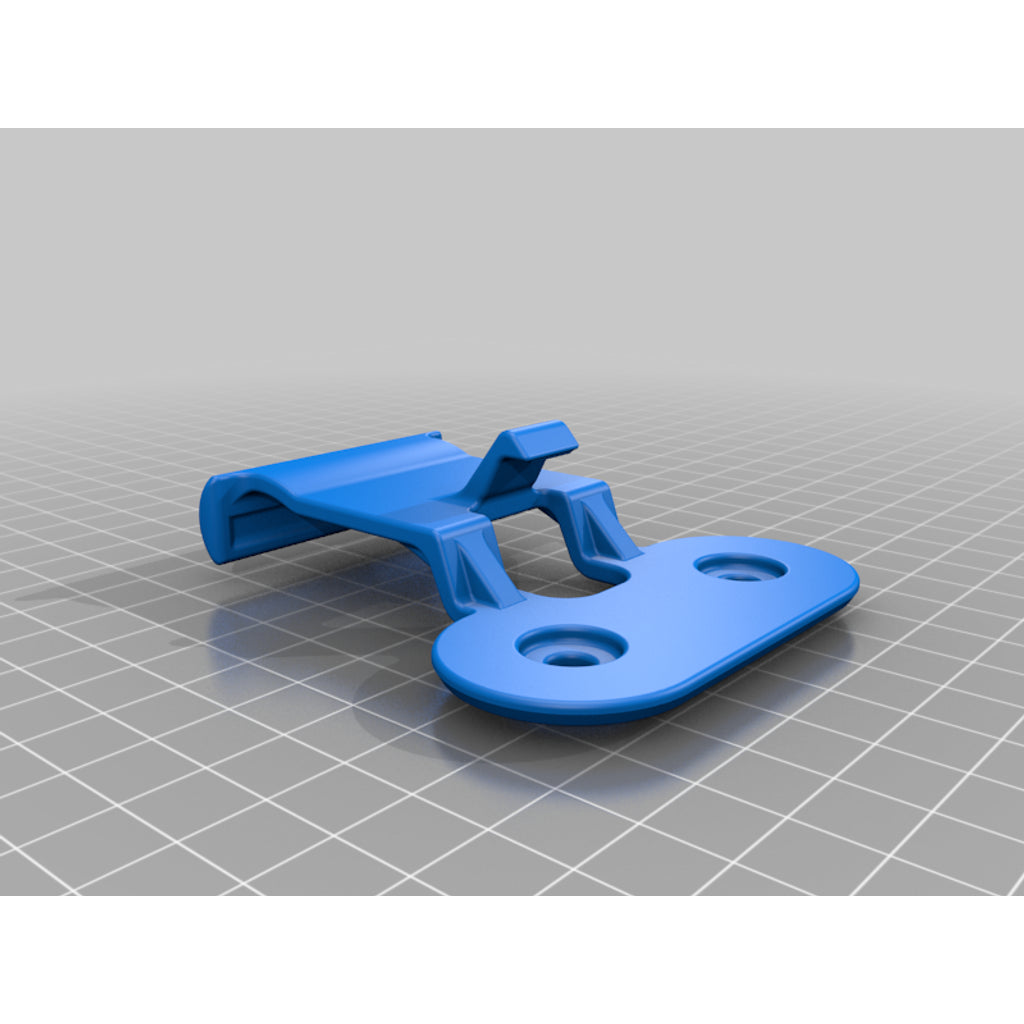

Replace a broken or missing center console latch on your 1997-2001 Jeep Cherokee XJ with this 3D-printed part, produced to order by PartsRemade.
About this part
Replaces MOPAR 55037537AA. Will NOT fit Cherokee models 1984-1996. Should fit all trim levels of 1997-2001. Part has been thickened and gusseted in areas prone to failure on OEM parts.
Print perpendicular to bed surface. This method ensures that the filament tensile strength gives the part its structure when in use, as opposed to the strength of the bonds between layers.
Infill over 50% tends to make the part too stiff and has seen cracking at 100% infill. Infill type should be any 3D-based pattern to ensure strength when printing perpendicular to bedplate. Tri-hexagon was used for test parts.
Tree supports and basic raft used.
PLA prototype part has performed well since part installation. In-vehicle temperatures between 55F and 85F with no visible deformation or weakness of part. PETG and ABS would, naturally, be preferred choices for full longevity.
Change Log:
Updated March 11th, 2022 - added stop bar fulcrum, doubled thickness of gussets at front and rear sides of lift. Added fillets, chamfers and edge breaks. Narrowed size of latch tooth opening to use as tunable part stiffness feature. Component is overall stronger.
Instruction Notes: For Rev. 07, adjustment may be required to the two sides of the hinge - in many cases, no adjustment is necessary, but due to tolerances of Chrysler manufacturing in 1997-2001, the latch may need to be positioned as far forward as possible by pulling on loosening the mounting screws to the hinge and lid, pulling them forward (upward) and retightening the screws. Future design will incorporate slotted mounting holes.
Compatible vehicles
- 1997-2001 Jeep Cherokee XJ
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Center Console Latch |
|---|---|
| Make | Jeep |
| Model | Cherokee |
| Year | 1997 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-abdc7a39 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Jeep parts
Browse all Jeep replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
