Need a replacement center console light adapter for your 2013 Mazda 6? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part

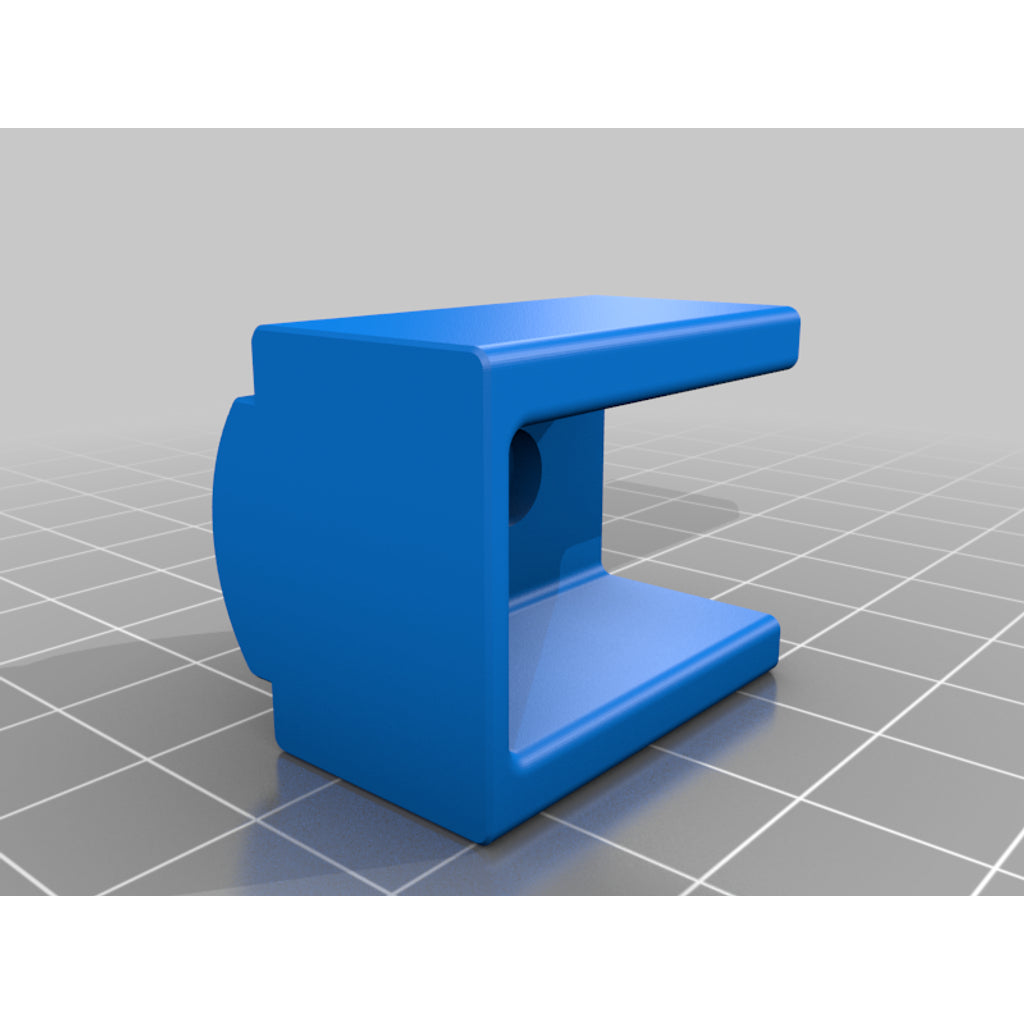

This is a Mazda 6 2013 and later ambient light adapter for center console. Any modding is done at your own risk and I can't be hold accountable for any damage.
Parts list:
1x LED 5mm 3V, preferably short one with 100 deg light cone
1x resistor 1k Ohm
2x M3x8mm bolt with locknut
some wire, AWG 20-24 recommended
multimeter
READ WHOLE INSTRUCTION BEFORE STARTING!
To remove the head console unscrew 2 screw hidden in sunglass compartment and pull firmly down holding sunglass compartment door. When clip releases slide whole assembly forward. BE CAREFUL for short wires above! Consult photos.
Using multi-meter measure voltage difference between 2 points marked GND and 12V on photos and make sure it is indeed 12V! BE VERY CAREFUL NOT TO SHORT ANYTHING!
When console is removed gently disconnect both plugs. They are both secured by little ping that need to be pushed inwards to release - see photos, marked by arrows.
Prepare LED assembly. Solder 1k resistor to + of LED, the longer leg (trim excess legs, leave only about 8-10mm on both LED and resistor legs but remeber/mark the + on LED). Solder GND wire to shorter LED leg. Insulate everything including resistor with heatshirk. When done use CA or any other glue to secure LED in printed assembly. Then whole module will just snap in place (it only fits one way, don't force it).
Then use 2 M3 bolts to connect power to the LED from marked locations. To access 12V screw from below you'll have to remove map light lens - see photo for how to. To access GND screw you'll have to remove middle cover - see photos for clips that need a gentle push with flat head screw driver.
With all done always check for any shorts. You can apply 9V battery voltage (use a fuse if possible) to 2 points where LED was connected and test everything (LED, map lights etc).
Be careful, work slowly and gently. Everything comes apart really easy.
Compatible vehicles
- 2013 Mazda 6
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Center Console Light Adapter |
|---|---|
| Make | Mazda |
| Model | 6 |
| Year | 2013 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-cf540d62 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
