Climate Control Fan Knob Adapter – 2004 Mazda Rx-8

Replace a broken or missing climate control fan knob adapter on your 2004 Mazda Rx-8 with this 3D-printed part, produced to order by PartsRemade.

About this part

My 2004 RX-8's climate control fan knob broke right on its stem. Cost of a new one is like fifty bucks! Gluing it back together is difficult because of the small surfaces and the fact that it's HDPE. So I made this little adapter that uses a friction fit on the remaining bits to re-create the necessary mounting hardware. It may fit other years, not sure.

Compatible vehicles

• 2004 Mazda Rx-8

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Here's an attempt at a step-by-step. Watch my YouTube video to get a slightly better idea of what's going on: http://youtu.be/Ira08ukeK8A

1) You need to clean up the remaining bits of the knob's stem (or stalk, whatever you wanna call it). Look down the D-shaft. You'll notice a small X inside the D-shaft. Trim the D-shaft down flush with that X.

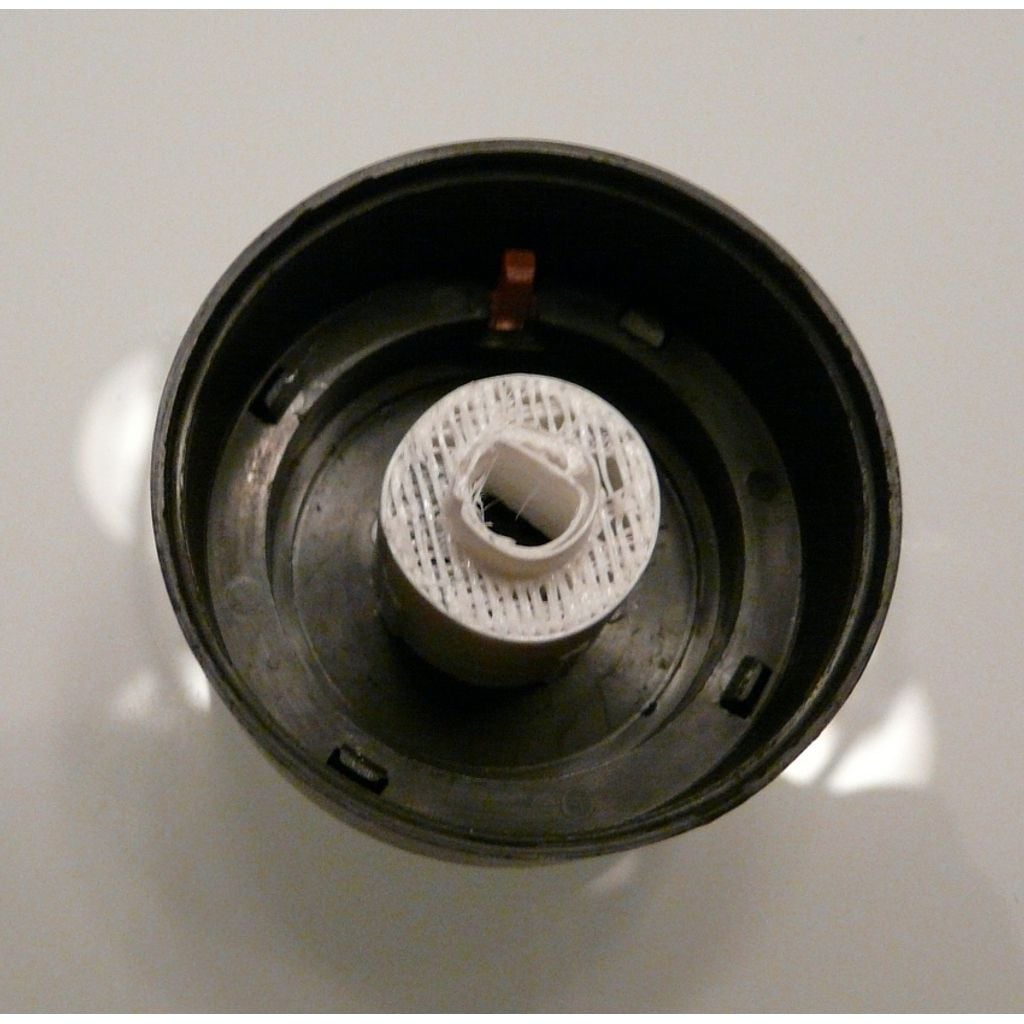

2) Print this out. I used 0.4 wall, 0.4 top/bottom, external supports, and 15% infill on Cura. I'd recommend using 0.6 wall/top/bottom if I were to re-print this; my print has gaps in the top layer as you can see.
3) Go to your car. Push the print onto the shaft.
4) Line up the knob and push it onto the print.
5) Enjoy your newfound control over the fan!

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Mazda parts

Browse all Mazda replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
