Replace a broken or missing clutch alignment tool on your 2003-2006 Bmw 3 Series E46 with this 3D-printed part, produced to order by PartsRemade.
About this part

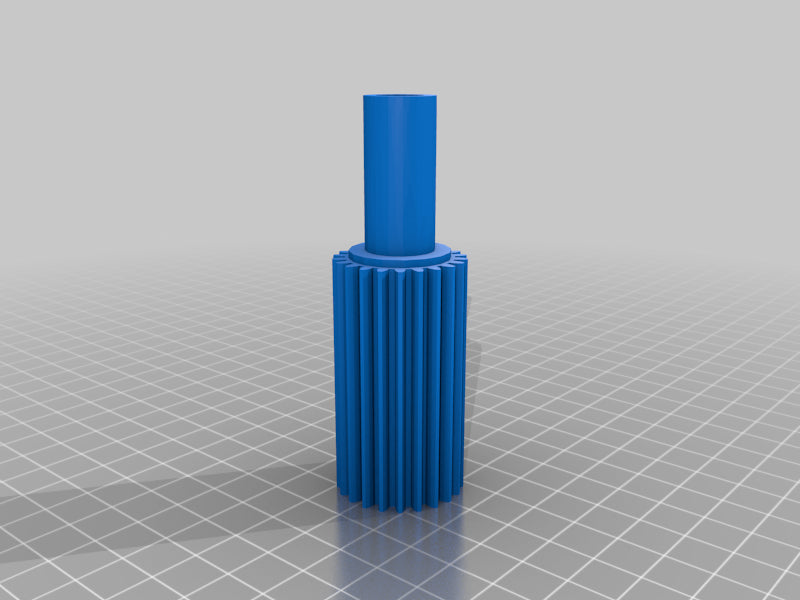

22 spline clutch tool used for post 03 3 series. This was specifically for the m54 b25. The shaft is 15mm (into pilot bearing) and the spline circle diameter is 29mm. This size might have also been used for 6 speed but I don't know. The tool itself does not have a handle but you could easily extend it's length in blender. Main reason I didn't make one is because the printing would take much longer. It is possible to "weld" the PLA with a hot knife onto another piece if you want to model one, or I can. Comment below if that's something you are interested in. You can also use a bolt to push into the supports. The PLA plastic is thin enough to be molded by the threads.
I used Mattercontrol for this.
Compatible vehicles
- 2003-2006 Bmw 3 Series E46
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Clutch Alignment Tool |
|---|---|
| Make | BMW |
| Model | 3 Series |
| Year | 2003 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (OBJ) |
| Part number | CAT-cbcc1366 |
Print settings
No special print instructions provided.
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More BMW parts
Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
