Need a replacement cubby 7inch screen holder for your 2005 Nissan 350z? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part
Disclaimer: I don't have the model for the brackets on the back.
This was originally a remix but it seems like the original model is not on Thingiverse anymore. Please make me aware of it, if its still online. I dont want to steal his stuff and not credit him.

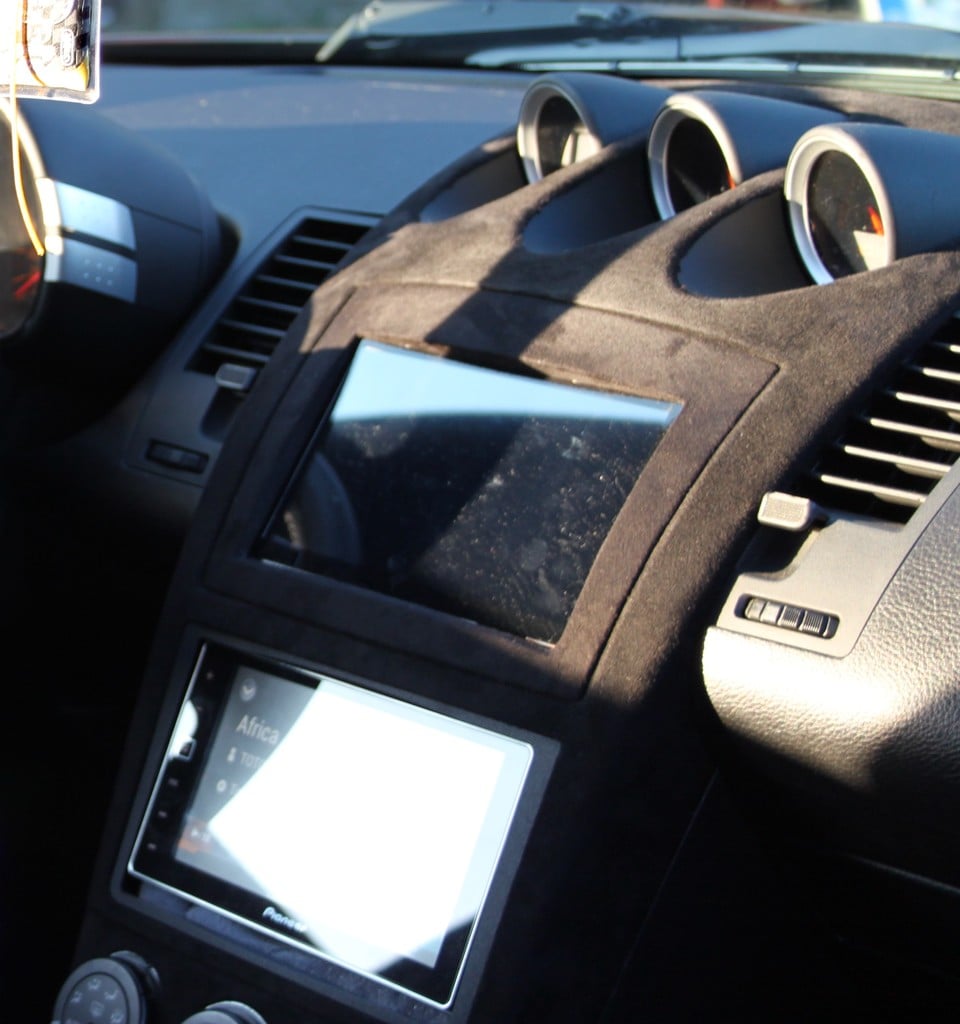

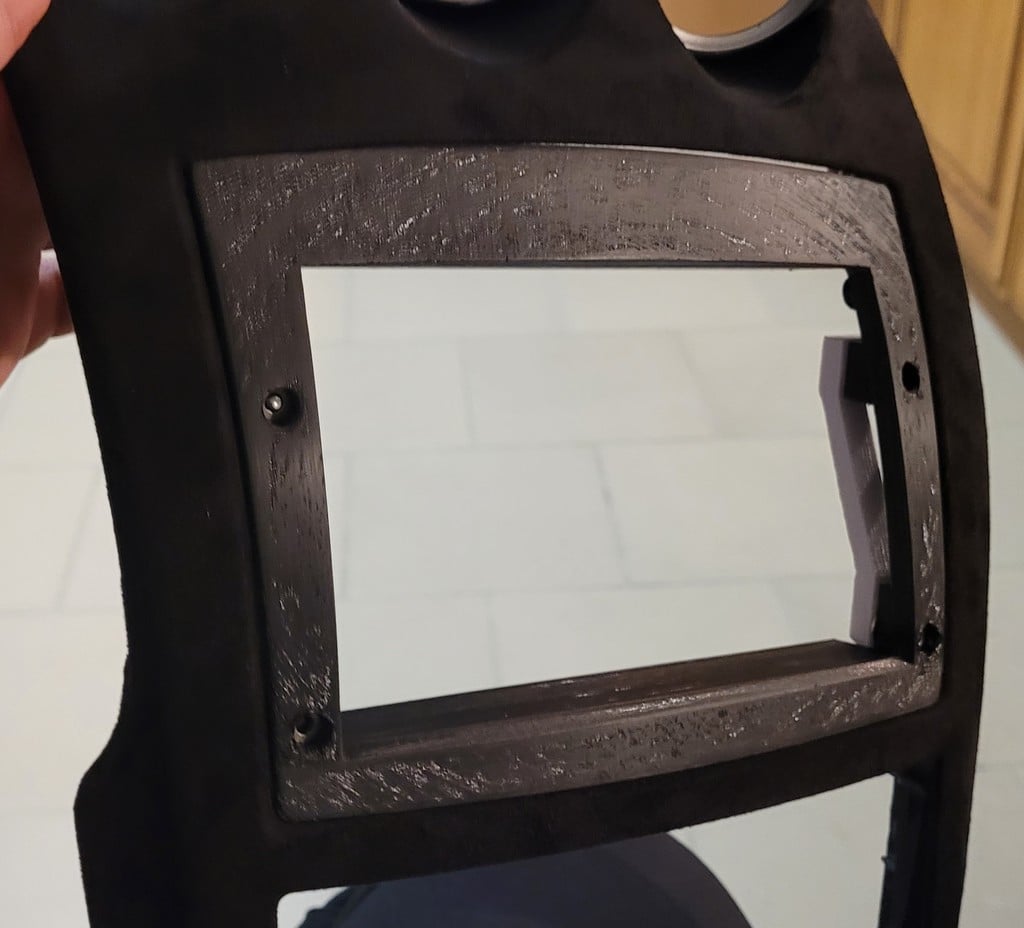

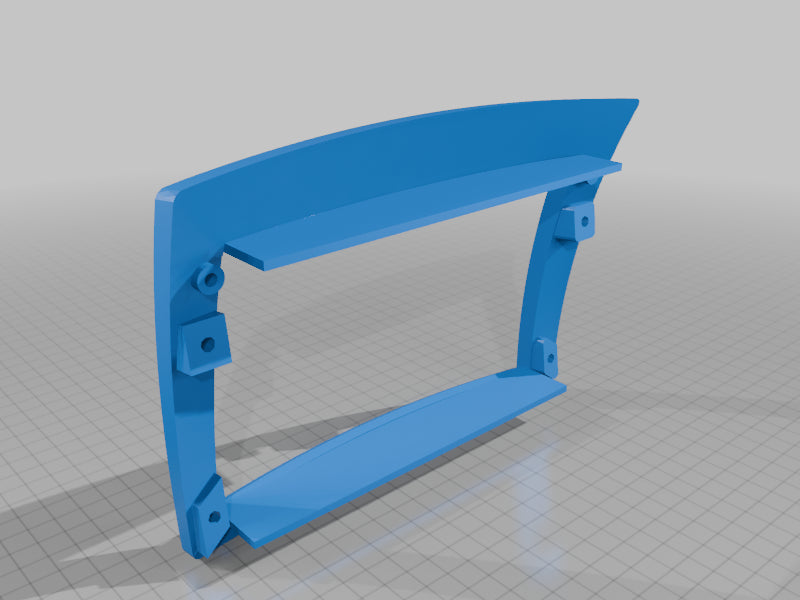

The model is for a 350Z pre facelift interior, no idea how this fits in the facelift interior. You can melt in some thread inserts in the holes, then mount a screen. The mounting is somewhat whacky, you will have to find your own solution. I did some bracket out of scrap acrylic glass pieces, which I have molten into shape, then drilled some holes. The fitment is nowhere near perfect, but it works.

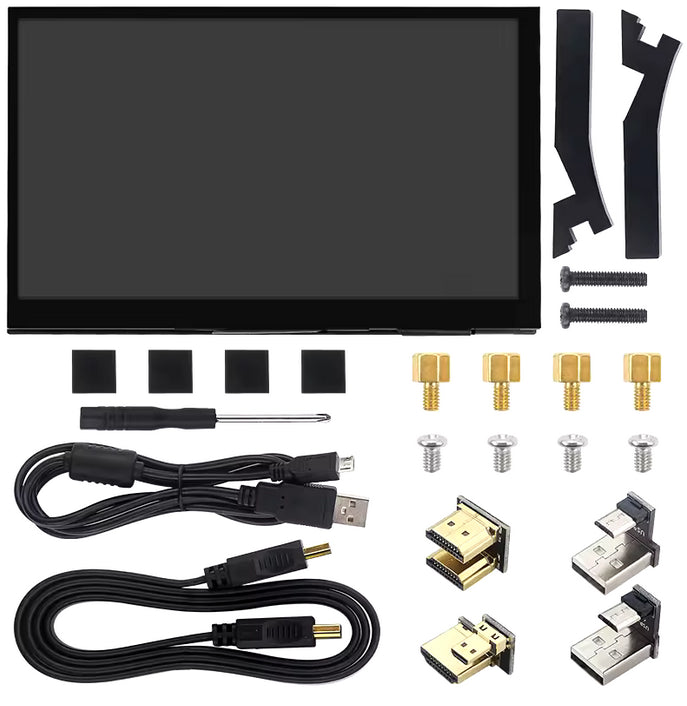

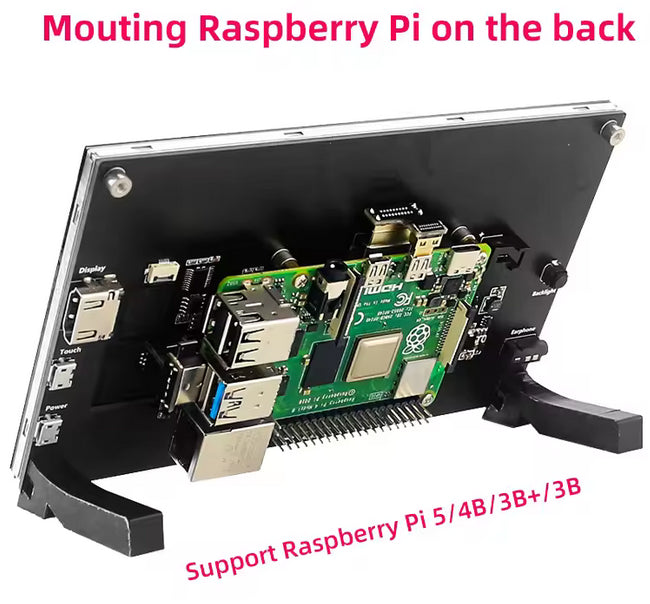

You can search for a screen on Aliexpress, pretty much any 7 inch screen that shows a Raspberry Pi on its back and has mounting holes in all 4 corners should fit. I attached a sample picture.
I am using a Raspberry Pi with OpenAutoPro, though thats discontinued at this moment. You can search for alternatives, though I have found none. For power delivery, I used this PCB: https://www.tindie.com/products/picotouch/raspberry-pi-automatic-onoff-v30-new-version/ . But thats also not being sold right now, you might find an alternative or just build it on your own with a 12V Relay.

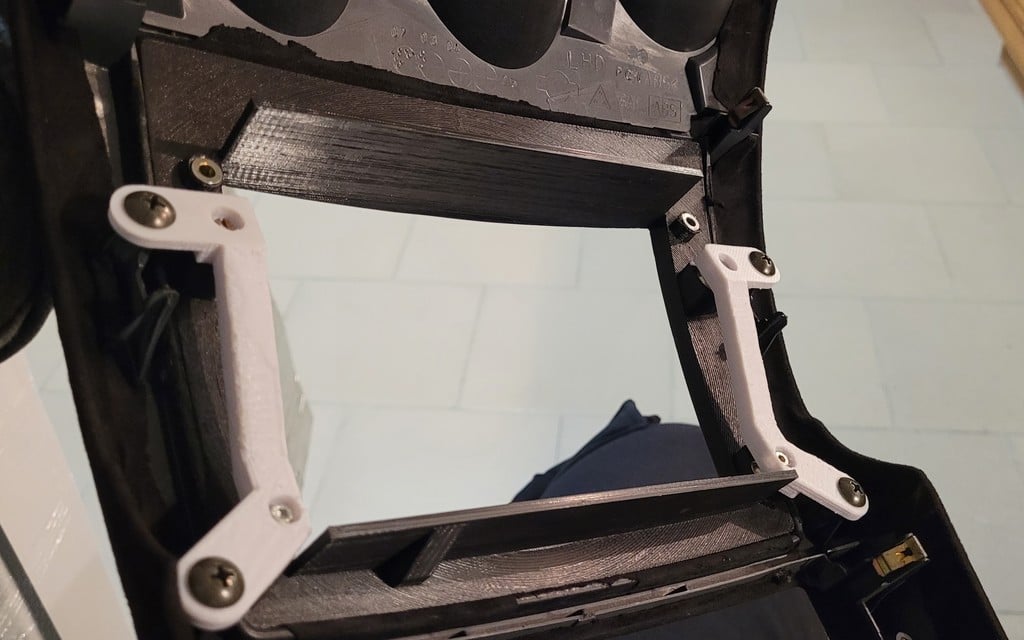

Honest to god, I cannot find the STL for those white arms I have on my model. You need those to attach the screen holder to the center console. I dont know why I dont have them anymore, I really must have deleted them since this project is 2 years back now.
You can fabricate your own arms pretty easily with some acrylic glass. Just cut it to size and heat it with a lighter, then bend it to shape, then drill some holes in it. Or design your own arms, but that's quite some work.
Also I wanted to upload the .step file but it's bigger than 600mb and it just won't upload to thingiverse, not even after letting it sit for 2 hours.
Compatible vehicles
- 2005 Nissan 350z
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Cubby 7inch Screen Holder |
|---|---|
| Make | Nissan |
| Model | 350Z |
| Year | 2005 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-84cd21de |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Nissan parts
Browse all Nissan replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
