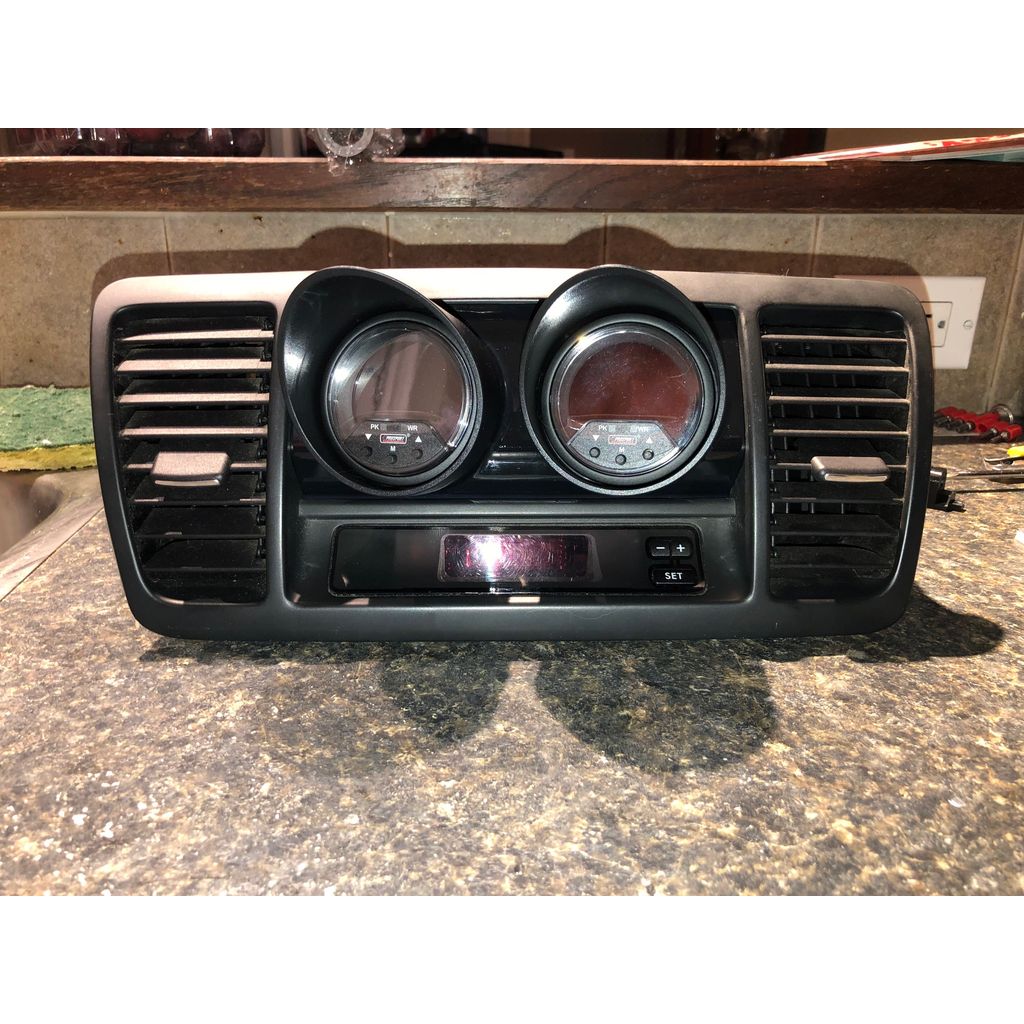

Cubby Gauge Pod – 2007 Subaru Legacy Gt / Outback Xt

Need a replacement cubby gauge pod for your 2007 Subaru Legacy Gt / Outback Xt? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

I ordered 60mm Gauges and couldn't find a suitable pod.
I have revised the STL for 52mm gauges as well.
The Gauges have been rotated 15 degrees towards the driver.

I redesigned the Tabs/Legs/Feet to better fit the dash. At least for my 2007 they now fit perfect. These are designed to slip over the existing posts. There is 1.75mm of smaller diameter to hold it to the post which is the same thickness as the factory cubby tabs. The tops are slotted exactly how the factory vents are constructed to fit perfectly in the original location. The lower tab has been shortened to better fit the location of the tab on the back of the clock. I also thickened the tab that inserts into the back of the body for a tighter fit. This may be year specific so please confirm with your own dash. You can use the factory screws to hold it all back in place.

A huge thanks goes out to the original designer which saved me a lot of time in design.

I used 3x10 countersunk screws to hold the tabs to the body.

Compatible vehicles

• 2007 Subaru Legacy Gt / Outback Xt

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Subaru parts

Browse all Subaru replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
