3D-printed cup holder for the 1990-1997 Mazda Mx-5 Miata NA, made to order as an affordable alternative to a discontinued or expensive original part.
About this part

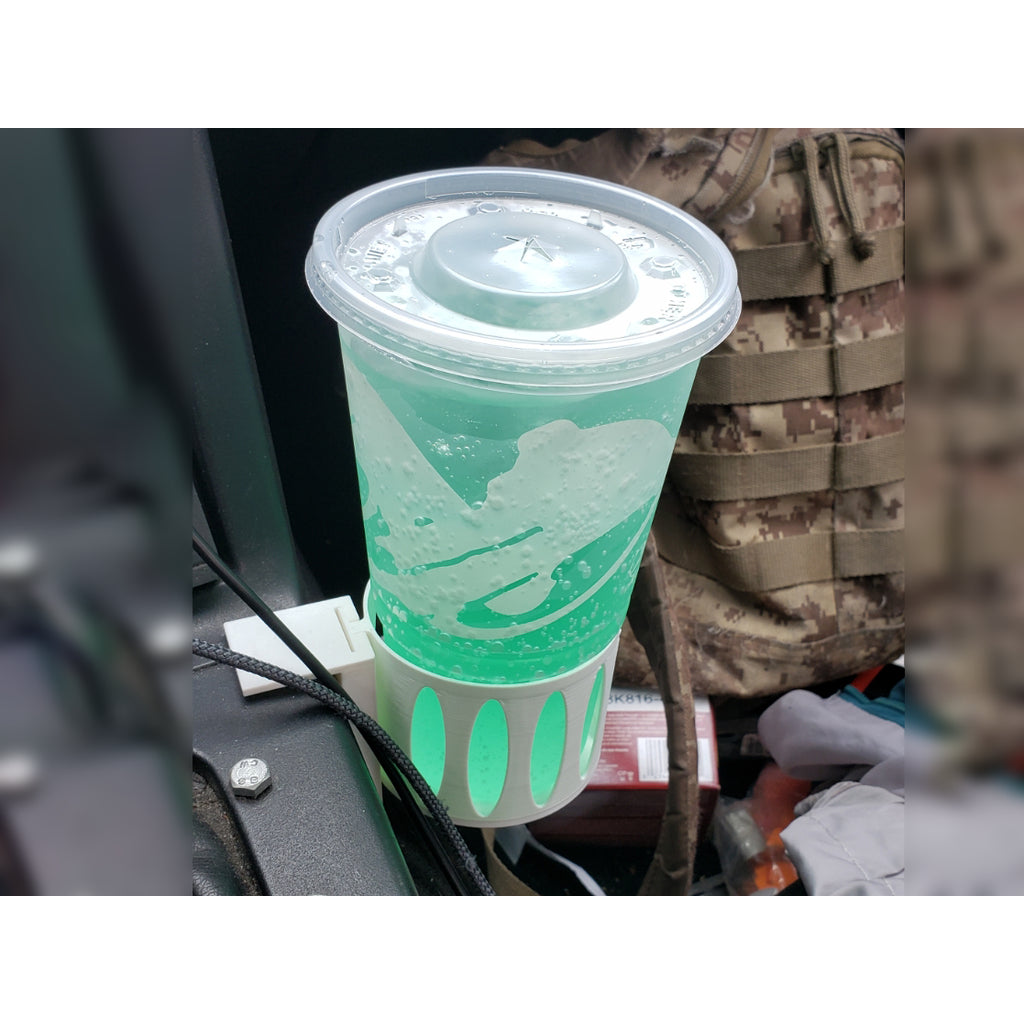

A larger cupholder (3" ID hole) made for the Mazda MX5 NA Miata cupholder support, originally made by 5tr3l0k. [Linked here](https://www.thingiverse.com/thing:2501911)
EDIT: 3" ID is perfect. 3.25" is too large.
~~I'm currently still working on this design, so the ID may change a little in the near future. I'm thinking it may need to be 3.25" or so to better fit large fast food style cups.~~
The connector piece was designed to be the same dimension as 5te3l0k's cup holder design. I simply added a fillet to the connector (to alleviate the stress in that area), changed the cut patterns, and increased the inner diameter.
As noted by 5tr3l0k, you should print this in ABS or similar material, but PLA should be fine if you don't leave it in a car in the summer. The glass transition temp for PLA is 140F (60C), so just be mindful of how you're storing it so it doesn't reach that temperature.
Included the .ipt for Inventor if you want to adjust any of the dimensions.
Compatible vehicles
- 1990-1997 Mazda Mx-5 Miata NA
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Cup Holder |
|---|---|
| Make | Mazda |
| Model | MX-5 Miata |
| Year | 1990 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-6d9303d9 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
