Dash Bezel For Atoto S8 Standard 7" Radio/nav Unit – 1988 Suzuki Samurai

Need a replacement dash bezel for atoto s8 standard 7" radio/nav unit for your 1988 Suzuki Samurai? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

This project is a work in progress, feel free to edit as necessary.

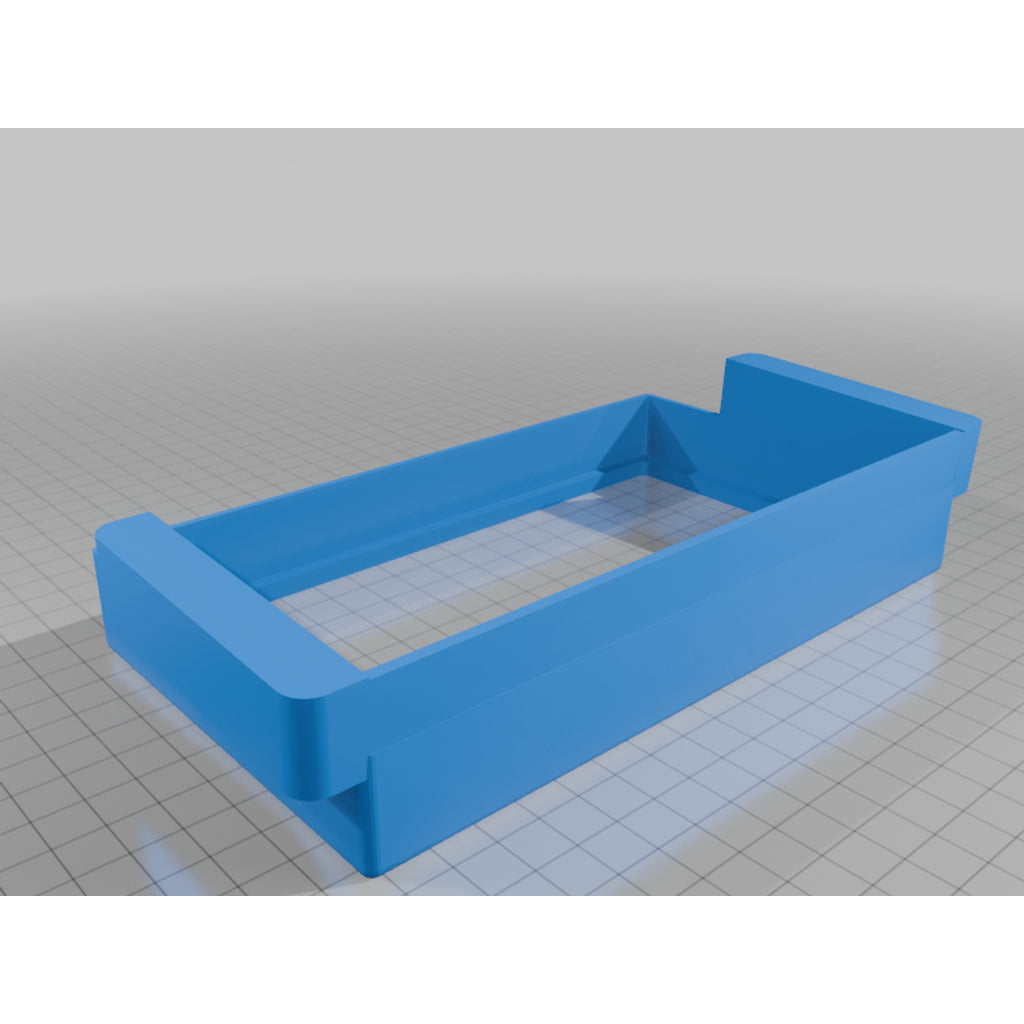

This is a custom dash bezel to fit a newer double-din sized radio into the Suzuki Samurai, specifically the square vent model. This will fit an ATOTO S8 Standard 7" screen into the top of the middle dash where the clock normally sits. Before this will work you will need to dremel/cut out the top hole in the middle dash flush with the surrounding outside bezel. Pull your existing radio wires up beside the instrument cluster and into the new cut out area. This model will fit snug into opening cut out from the clock area, you may have to get creative on additional mounting of the 3D printed bezel (Screws, brackets, etc.)

Note: The method of installation makes it difficult to reach the two middle dash screws behind the screen. I left the out on my install.

This model needs to have supports enabled on the overhang to the bed.

Compatible vehicles

• 1988 Suzuki Samurai

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Suzuki parts

Browse all Suzuki replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
