Need a replacement door handle cup for your 1990 Mazda Rx-7 FC (S5 Convertible)? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part

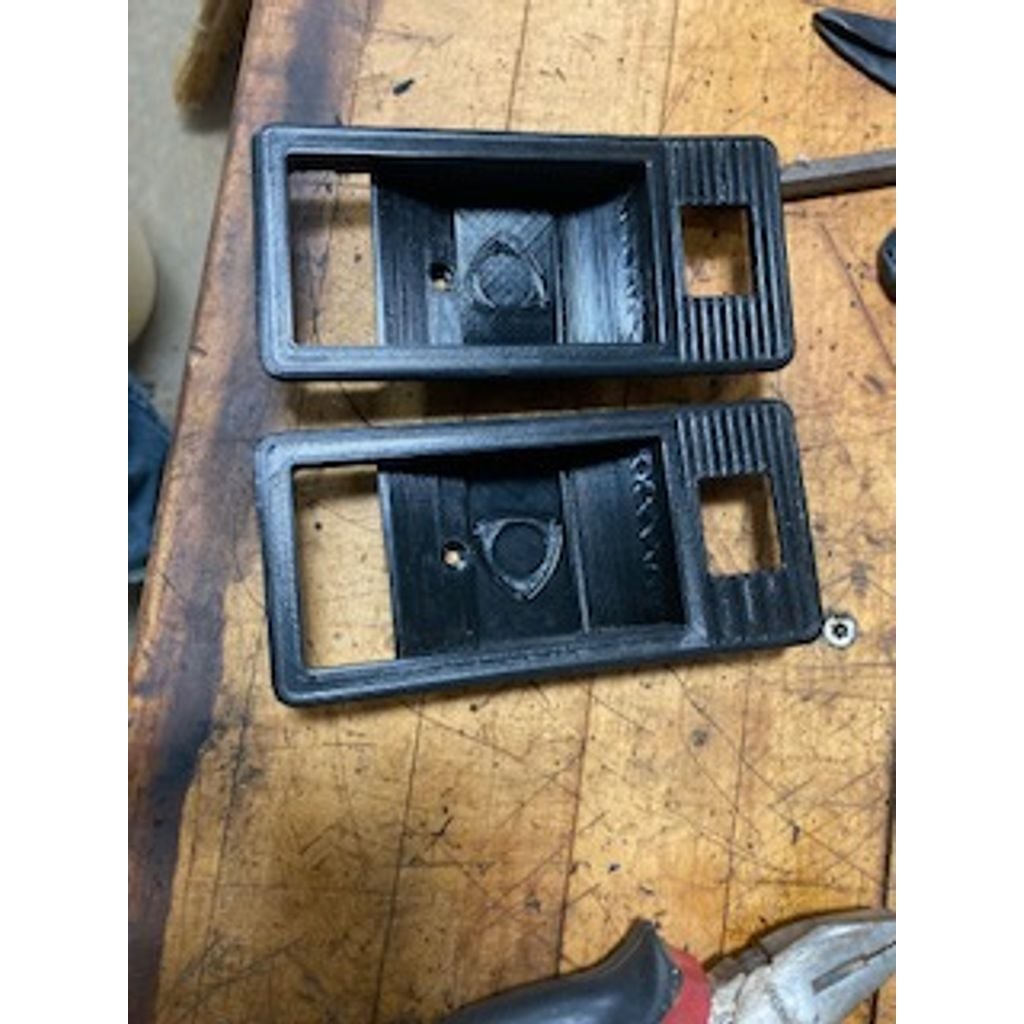

This was originally poseted by JAFA_Engineering. The basic file is exactly that but with a fixed hole in the mesh that would make it print filled in. The one that is labeled "with rotor" has a rotor on the flat part. The one that is labeled "with rotor upside down" has the rotor upside down for the other side of the car so they both point the same way on different sides of the car. The one labeled "with rotor and latches" has the little latches that go in behind the lock sider. I have not printed that it seems like it might be a pain.
I printed them with the cup facing up with supports and a raft. It took around 8 hours with a .28 mm layer height and .4mm nozzle. Without the raft everything came apart and went haywire but im not sure if that was print or printer related.
Fits my 1990 S5 convertible RX-7
I will add pictures when I install.
Compatible vehicles
- 1990 Mazda Rx-7 FC (S5 Convertible)
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Door Handle Cup |
|---|---|
| Make | Mazda |
| Model | RX-7 |
| Year | 1990 |
| Production | 3D printed to order (FDM) |
| Design files | 5 (STEP, STL) |
| Part number | CAT-a9c846d1 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
