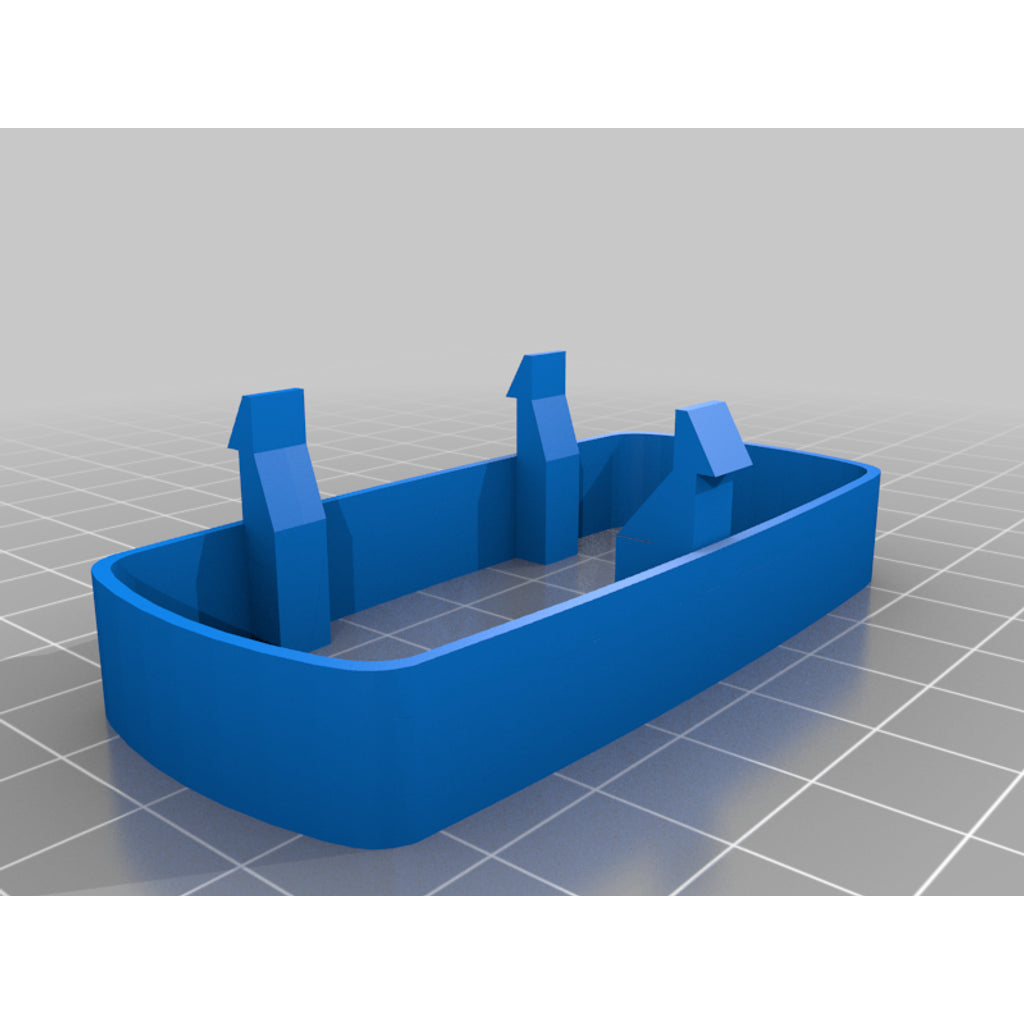

3D-printed door light cover adapter for the 2005 Honda Pilot, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
Thanks to @mikeaj for his amazing design for the light cover. I had purchased the light projector of Amazon (https://www.amazon.com/dp/B07D8JLGRJ/ref=cm_sw_r_tw_dp_U_x_t9nlCbD2TM1BJ) when I found this. Otherwise would probably just sick with the design. It works perfectly with transparent PLA filament.
Made this adapter to a 2008 projection light for my pilot.
The adapter requires hot-glue the projection light to the adapter as I didn't have the skills to properly make it fit. I edited using https://www.tinkercad.com. Not sure if there is other option that is as easy as it is but having more resources.
I will take pictures of the adapter as I can.
The file Car_Light_Adapter_v3_WORKS.stl is the one that fits the best, I added v.1 and v.2 for reference
Compatible vehicles
- 2005 Honda Pilot
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Door Light Cover Adapter |
|---|---|
| Make | Honda |
| Model | Pilot |
| Year | 2005 |
| Production | 3D printed to order (FDM) |
| Design files | 5 (STL) |
| Part number | CAT-a1dbf3dc |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
