3D-printed replacement folding mirror gear made for the 2007-2014 Honda Jazz / Fit MK2: a simple way to replace a cracked, lost or hard-to-find original part.
About this part

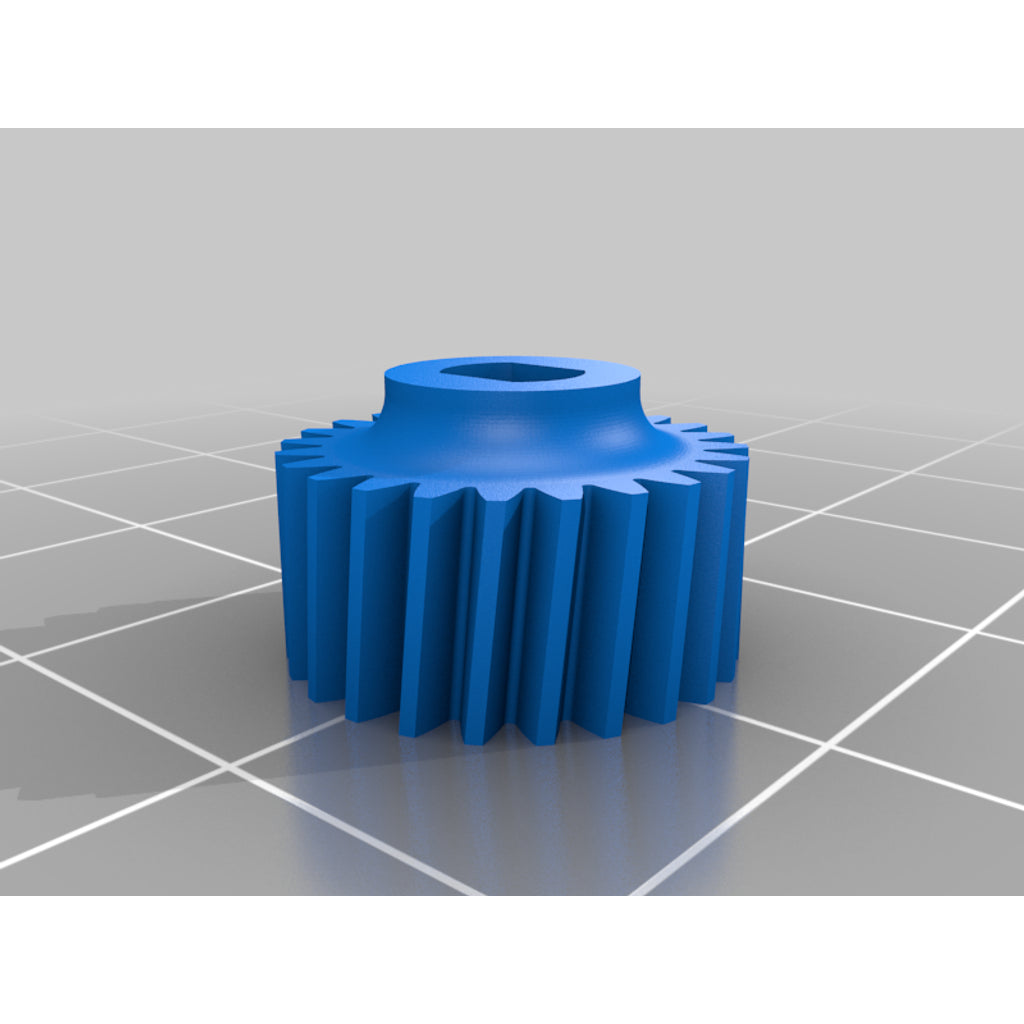

Honda Jazz / Fit mk2 folding mirror gear.
Original gear was broken, motor was continuously turning.
24t 13mm od.
You can find the dissassembly of mirror here:
https://www.dropbox.com/s/2ygdv8r2kj73c8o/Repair%20Fit%20Jazz%20Mirror%20Motor.pdf?dl=0
(not mine)
Don't print a brim, it's difficult to remove and add useless postprocessing.
A nozzle <0.4mm may be a good thing.
Compatible vehicles
- 2007-2014 Honda Jazz / Fit MK2
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Folding Mirror Gear |
|---|---|
| Make | Honda |
| Model | Jazz |
| Year | 2007 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-aa4de2a6 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
