Front Door Speaker Mounting Adapter Bracket – 2014-2018 Mazda 3

Need a replacement front door speaker mounting adapter bracket for your 2014-2018 Mazda 3? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

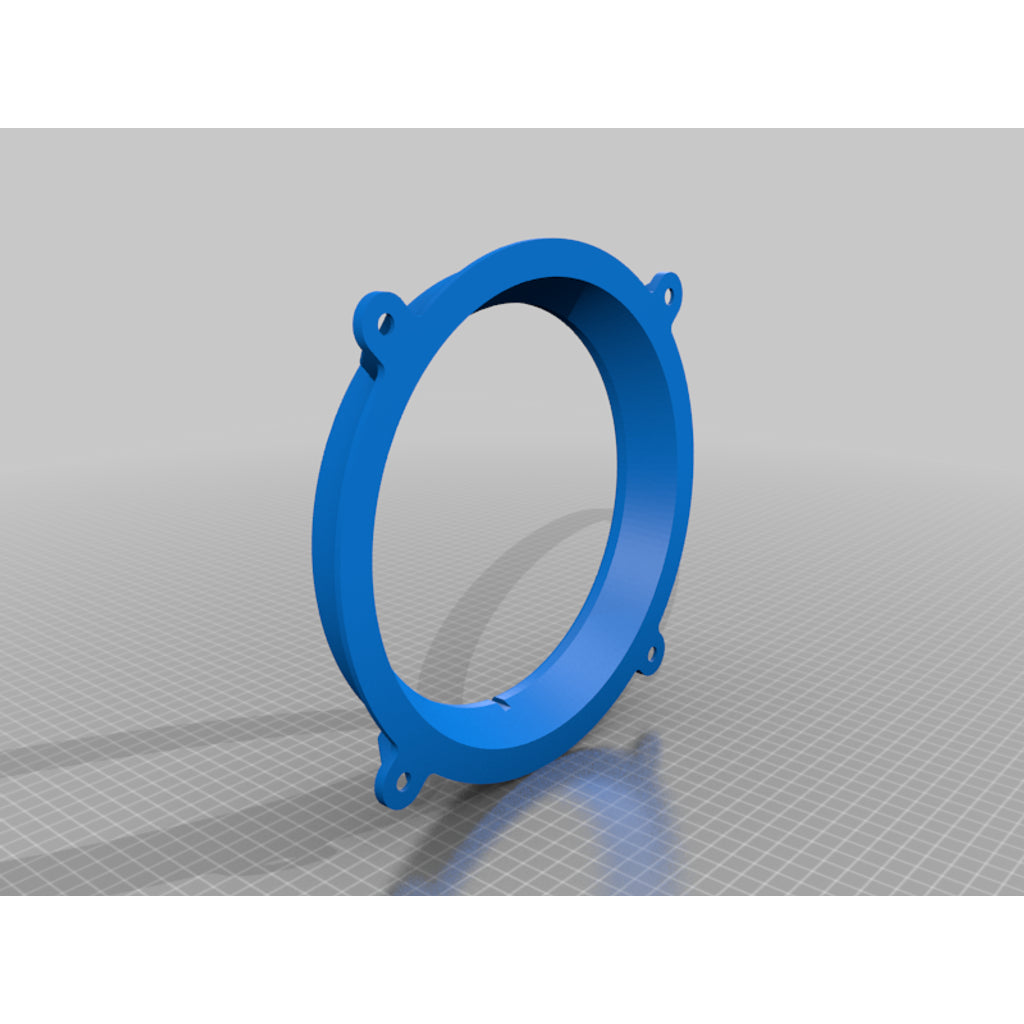

This adapter allows for installation of an 8 inch speaker in the front doors of the 2014-2018 Mazda 3. It will likely work in other Mazda's from this gen that use the same size speaker. It consists of the adapter itself, and a water shield for the back of the speaker.

The design is slightly asymmetrical (thanks mazda), so orient the adapter with the wire hole up and of course the shield up. Use the original mounting screws to mount the adapter and shield sandwiched together (recommended to use double-sided tape in between the pieces, and of course speaker mounting foam between the shield and door).

The V1 versions are based on the design I used to mount a non-standard volvo speaker, which gives you ~19mm gap to the door panel and ~70mm of top mount depth.

The V1 DEEP files are modified to allow for mounting of a deeper speaker, and while in theory based on my initial measurements they should fit fine, these are very much untested. They give you ~14mm gap to the door panel, but ~85mm of top mount depth.

Compatible vehicles

• 2014-2018 Mazda 3

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Mazda parts

Browse all Mazda replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
