Front Grille Turn Signal Lens – 1974-1977 Ford F-100
Front Grille Turn Signal Lens – 1974-1977 Ford F-100

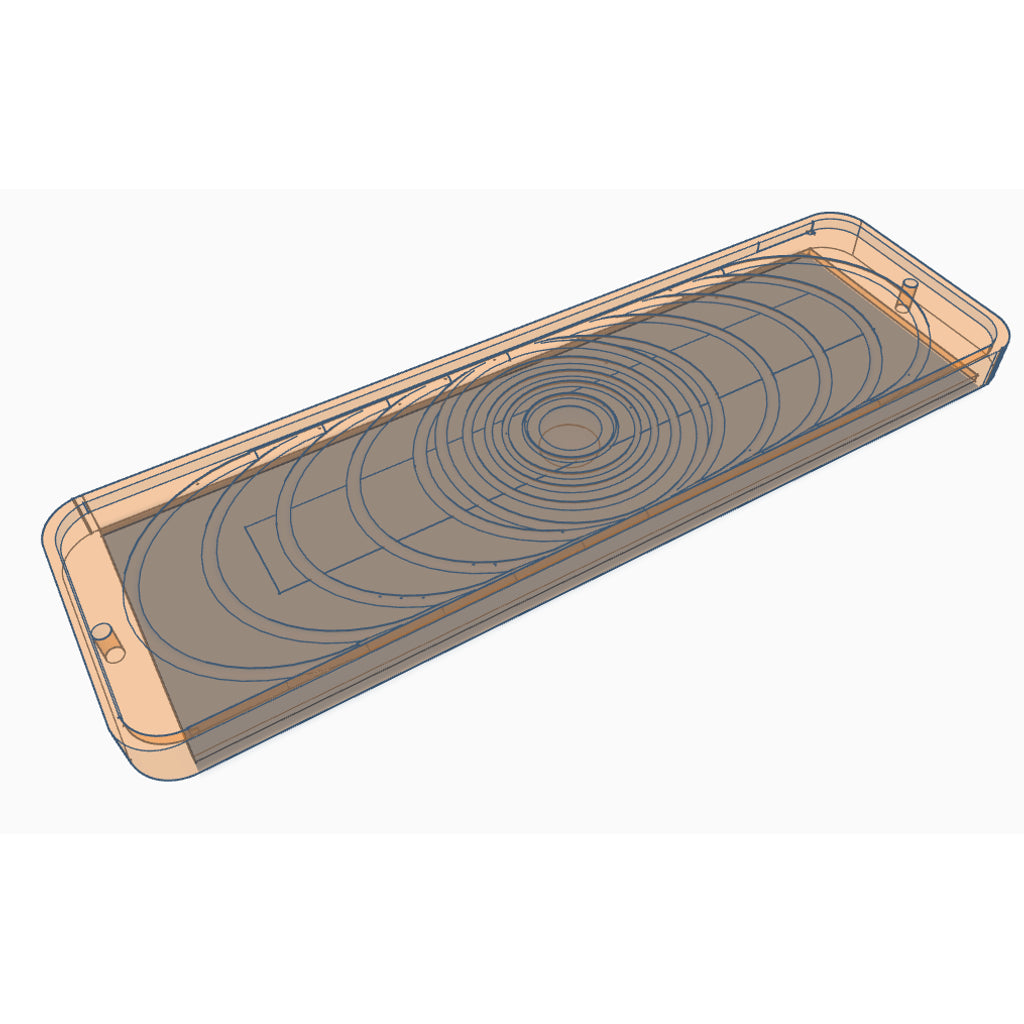

3D-printed front grille turn signal lens for the 1974-1977 Ford F-100, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
Would request someone with a Ford print this, offer feedback on critique to get this correct,
Front Grill Turn Signal Lens
The standard front grill-mounted turn signal lenses for 1974–1977 Ford trucks generally follow these specifications:
Approximate Dimensions: 8.47" L x 2.62" W x 2.86" H.
Lens Type: These are typically rectangular clear or amber lenses that mount directly into the grill.
Fitment: Parts like the D5TZ-13200-A are designed specifically for the 1975–1976 model years and fit both driver and passenger sides.
For a 1975 Ford truck (F-100, F-150, F-250, or F-350), the two front mounting holes on the turn signal lens are spaced 4-9/16 inches (approximately 116 mm) apart.
Mounting Details:
Lens Part Number: This spacing corresponds to the standard rectangular lens used for the 1975–1976 model years, often identified by Ford part number D5TZ-13200-A.
Screw Placement: There are two screws—one on the left and one on the right of the lens—that pass through these holes to secure the lens directly to the bulb housing/bucket assembly.
Housing Opening: Behind the lens, the bulb assembly usually fits into a 2-inch circular hole in the grill or valance.
Fitment Variations
Early vs. Late 1975: This 4-9/16" spacing is typical for "early" 1975 models (before serial number C50,001) which featured clear lenses.
Comparison: If you find aftermarket lenses where the holes do not line up, they may be intended for the 1973–1974 or 1977–1979 models, which used different grill and light configurations
Compatible vehicles
- 1974-1977 Ford F-100
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Front Grille Turn Signal Lens |
|---|---|
| Make | Ford |
| Model | F-100 |
| Year | 1974 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-ec705feb |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
