3D-printed front speaker 5.25" adapter plate for the 1986 Suzuki Samurai, made to order as an affordable alternative to a discontinued or expensive original part.
About this part

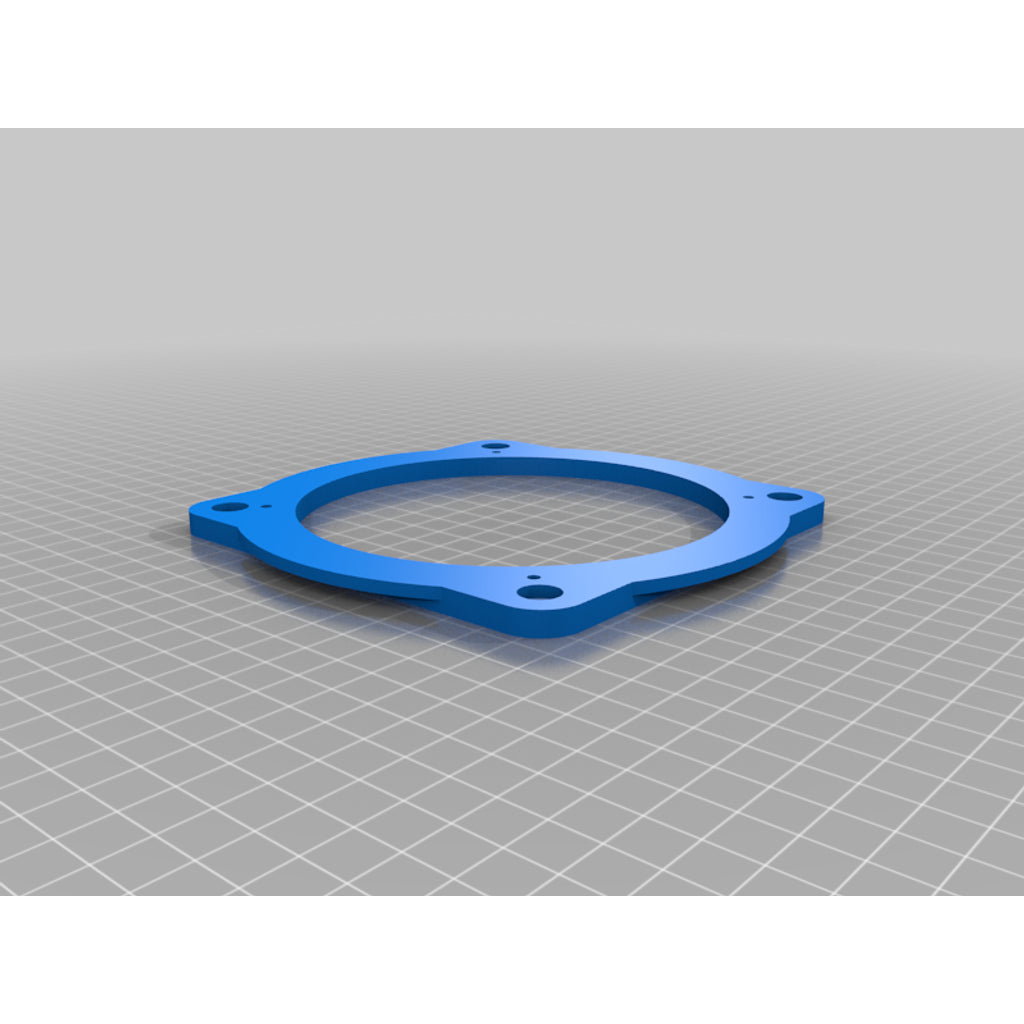

I have a 1986 Suzuki Samurai JX that didn't have a radio or speakers. The speaker holes are odd sized and needed a special plate to seal properly. I designed an adapter plate to fit Pioneer TS 500-M 5.25" round speakers to existing mounting holes with original screws. You will install the plate first in the counter sunk holes and the speaker and speaker cover will overhang countersunk screws slightly. I used the original screws and mounts for plate to vehicle. I used the screws provided with the speakers to mount speakers with speaker cover. Hope this file will help other people.
Compatible vehicles
- 1986 Suzuki Samurai
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Front Speaker 5.25" Adapter Plate |
|---|---|
| Make | Suzuki |
| Model | Samurai |
| Year | 1986 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-a61667a1 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
