Front Speaker Adapter For 5 1 4" Kicker Speakers – 1997-2002 Audi S4 B5
Front Speaker Adapter For 5 1 4" Kicker Speakers – 1997-2002 Audi S4 B5

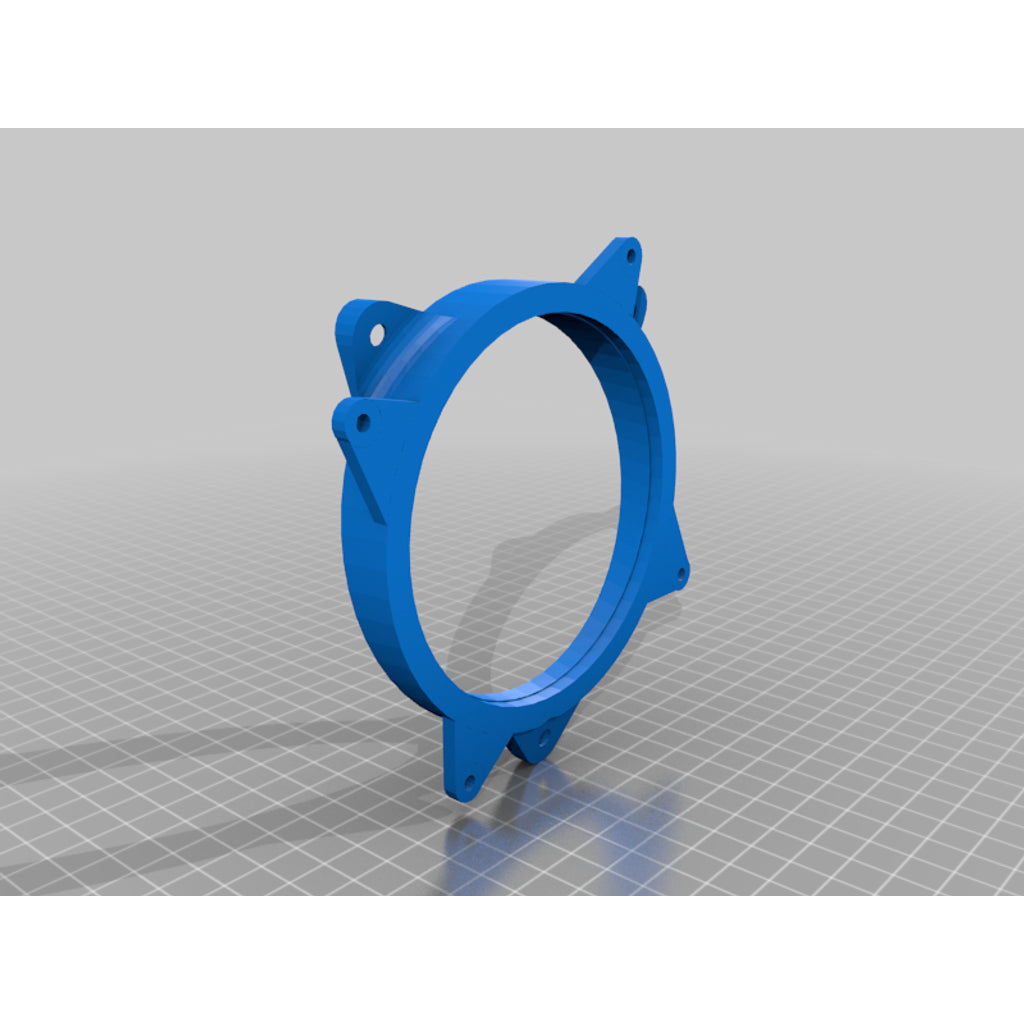

3D-printed front speaker adapter for 5 1 4" kicker speakers for the 1997-2002 Audi S4 B5, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
Modified fergusykes adapter to be able to be used with my Kicker 46CSC54 speakers, linked here: https://www.bestbuy.com/site/kicker-cs-series-5-1-4-2-way-car-speakers-with-polypropylene-cones-pair-yellow-black/6333350.p?skuId=6333350
I believe the original adapter was designed for a 4" speaker, but the kickers are 5-1/4". They fit pretty well, but the driver side was a little finicky to get one and doesn't sit perfectly flush.
The original file included a ring to add TPU or silicone to prevent rattling, which I didn't go with and it sounds perfectly fine.
I included the inventor file, as-well as the original author did so you can modify to your speaker bolt pattern.
Used the original bolts to mount it to the car, and used M4 machine screws with locknut washers to secure the speaker to the mount. I believe they were M4-25.
Compatible vehicles
- 1997-2002 Audi S4 B5
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Front Speaker Adapter For 5 1 4" Kicker Speakers |
|---|---|
| Make | Audi |
| Model | S4 |
| Year | 1997 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-e5f74a6a |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Audi parts
Browse all Audi replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
