Need a replacement front speaker mount for your 1965 Ford Mustang? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part
A 1965 Mustang and many other classic cars have a single 4x10 speaker (or is it called 3x9?) for the mono AM radio. As an upgrade, after-market products are offered where a pair of 3.5" speakers fit in the hole for that 4x10 speaker. Not knowing the quality of the speakers themselves, I designed a mount for two 3.5" speakers so I could pick the speakers. I used two Pyle speakers but I'm sure others would fit or could be adapted.
My 3D printer is not able to print something that is 10" long so I split the design into two identical halves. The two halves interlock and two #8 sheet metal screws hold the parts secure.

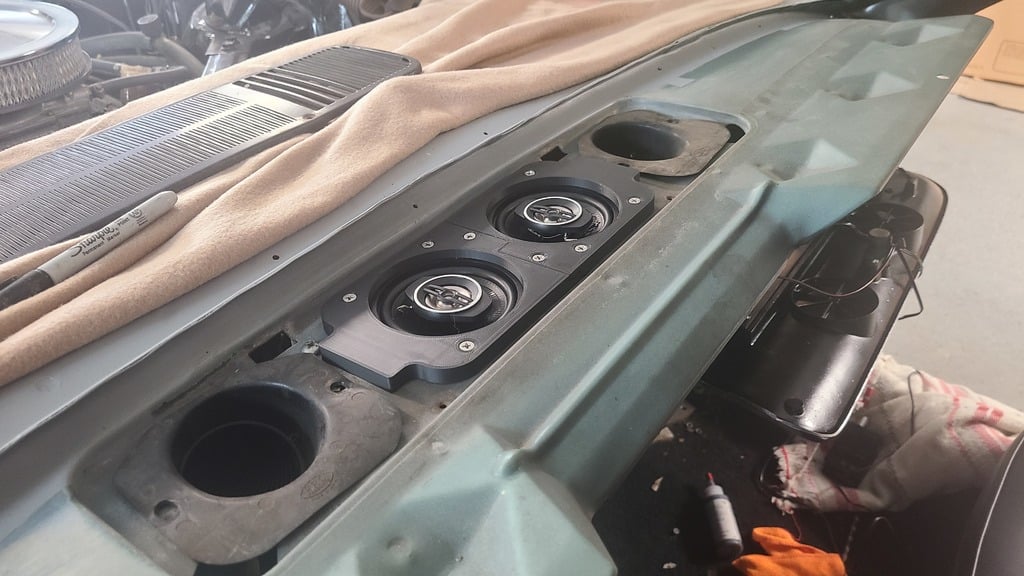

As shown in the pictures, the part interfered with the speaker grill so the design was modified accordingly. The stl file looks slightly different from the pictures due to this mod. If I reprint the parts, I will upload a new set of pictures but I will only do that if I print with another material. I just cut some of the material away with a saw to create my clearance, after taking the pictures. I had other things to do than to reprint!
UPDATE (07/17/25)
I modified the design to make it a single piece which it turns out I could print by turning it to 45 degrees on the build plate. I also turned the speakers so that there are only 3 speaker mounting holes with a single screw holding the speaker tabs that are closest together. There were also some required changes as I assembled my dash for clearance of the speaker grill. I do not have any updated pictures of the printed part but there is a png of the design. I uploaded the 3mf file this time so I hope that works. I don't think that option was available when I first uploaded the design.
UPDATE (07/18/25)
I deleted the 3mf file I uploaded yesterday because it was brought to my attention that someone is selling these parts on Etsy without attribution. Sorry if you need this updated design but I did not want the updated file to be available to them since the original stl file would not permit the grill to be installed properly. So anyone purchasing this on Etsy will not get a functional part! Again, sorry for any inconvenience.
Compatible vehicles
- 1965 Ford Mustang
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Front Speaker Mount |
|---|---|
| Make | Ford |
| Model | Mustang |
| Year | 1965 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-34564082 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
