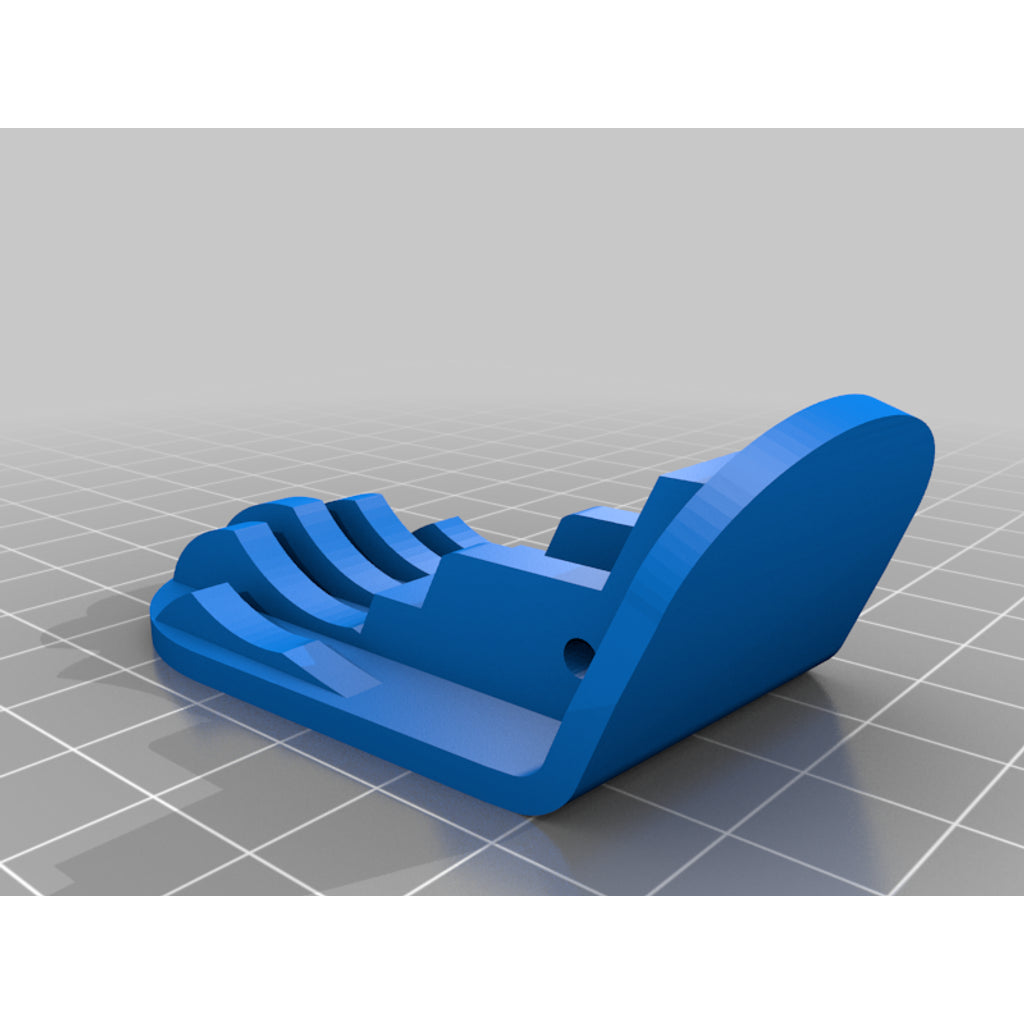

Frunk Hooks – 2020 Tesla Model 3
Frunk Hooks – 2020 Tesla Model 3
Need a replacement frunk hooks for your 2020 Tesla Model 3? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part
8/22/22 NOTE: This was designed around a 2020 Model 3 and apparently is not compatible with current Model 3 design.
See updates below.
Very nice original model. Thanks for sharing!
I prefer to use screws over printed pins and like to avoid supports when possible, so I remixed these frunk hooks to use M3 screws.
It's a little klugey - not sure if the original STLs were screwy or if it's because I imported the STLs into Sketchup to modify, That gets a little dicey sometimes. However, they print and work great. I merely replaced the pins on the hook with an M3 through-hole and sized the holes in the hook base appropriately. The hook through-hole doesn't actually go all the way through (too much trouble to fix the non-parallel surfaces using Sketchup) in the stl but the wall is so thin that it printed as a through-hole for me.
I printed with black PETG at .2 layer height, 3 perimeters and 30% fill. They feel very stout.
The cap-head M3 screws thread directly into the base and I'm sure will be plenty strong. I used M3 x 10 mm. Shorter ones will work just fine. Longer ones will not as they will hit in the middle.
I also used matte black wrap vinyl to cover the exposed hook surface. Looks nice. Yes, those in the installation photo are the printed versions.
Update 3/25/2020: New hook files (the "A" versions). The through-hole was .4 mm out of position compared to the original model. Hole was moved and is now perfectly aligned with parent. I have not printed these versions but they should be otherwise identical.
Update 5/13/20: Gawd, I hate the redesigned Thingiverse interface! Where did the link to the parent design go? This design is a remix of: https://www.thingiverse.com/thing:4081529 by HappyPEJ
Compatible vehicles
- 2020 Tesla Model 3
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Frunk Hooks |
|---|---|
| Make | Tesla |
| Model | Model 3 |
| Year | 2020 |
| Production | 3D printed to order (FDM) |
| Design files | 3 (STL) |
| Part number | CAT-511f02f9 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Tesla parts
Browse all Tesla replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
