Fuse Box Bracket – 1969-1970 Toyota Corolla KE10
Fuse Box Bracket – 1969-1970 Toyota Corolla KE10
3D-printed fuse box bracket for the 1969-1970 Toyota Corolla KE10, made to order as an affordable alternative to a discontinued or expensive original part.
About this part

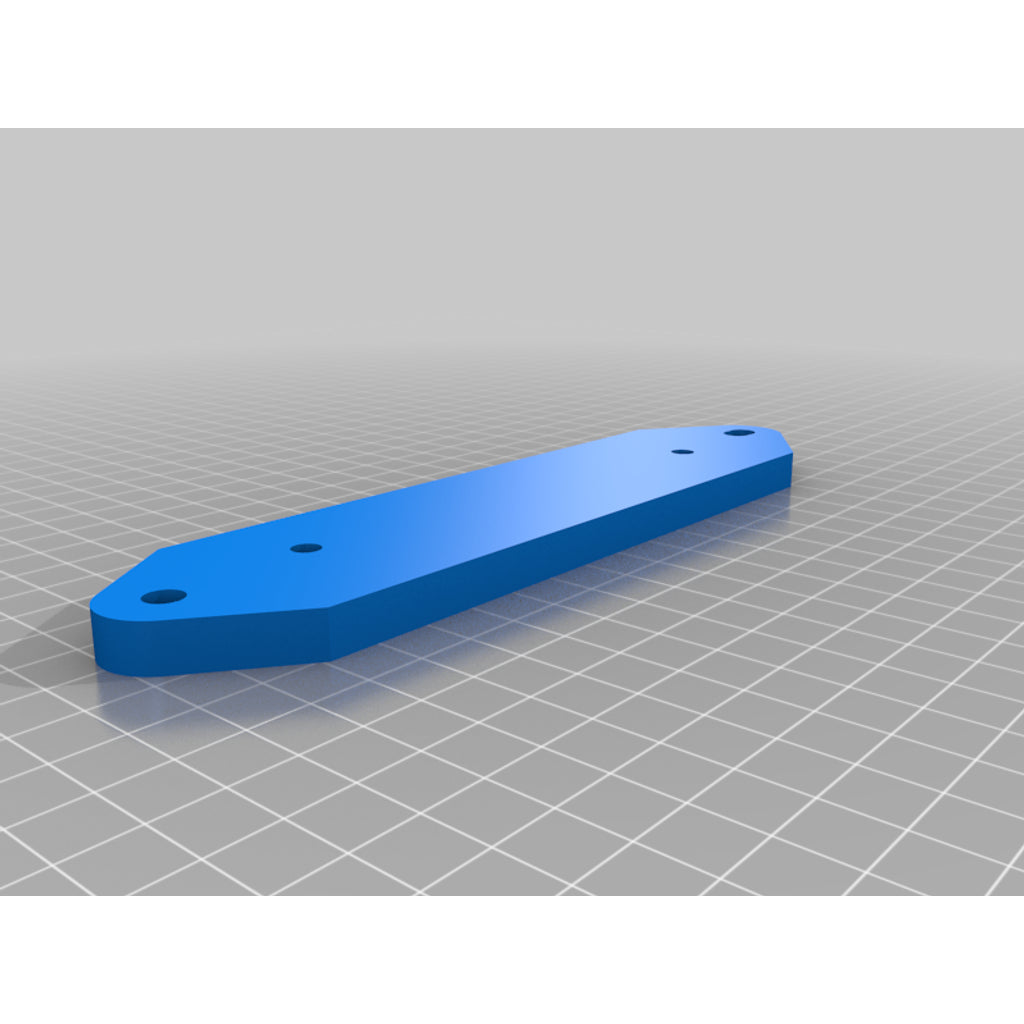

This is a bracket to replace the factory fuse box in a late-model KE10 Corolla - in my case, a 1969 model.
The bracket is designed to take a Narva 54424BL fuse box, which upgrades the vehicle's fuses to standard blade fuses from the factory glass fuses. This enables greater availability in the event that one pops, as well as greater reliability of the blades. Feel free to remix this to take the fuse box of your choice.
It's worth noting that the Narva box mentioned is an 8-way fuse box, while the vehicle has 10 fuses from the factory. I combined the DIM L + R fuses, as well as the MAIN L + R, and upgraded the amperage of the combined circuit to compensate. Of course, this will also mean some small wiring looms need to be made to combine these.
Compatible vehicles
- 1969-1970 Toyota Corolla KE10
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Fuse Box Bracket |
|---|---|
| Make | Toyota |
| Model | Corolla |
| Year | 1969 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-422943df |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Toyota parts
Browse all Toyota replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
