Gear Lever Cable Bushing – 1998-2004 Ford Focus MK1 (Zetec 1.6)

3D-printed replacement gear lever cable bushing made for the 1998-2004 Ford Focus MK1 (Zetec 1.6): a simple way to replace a cracked, lost or hard-to-find original part.

About this part

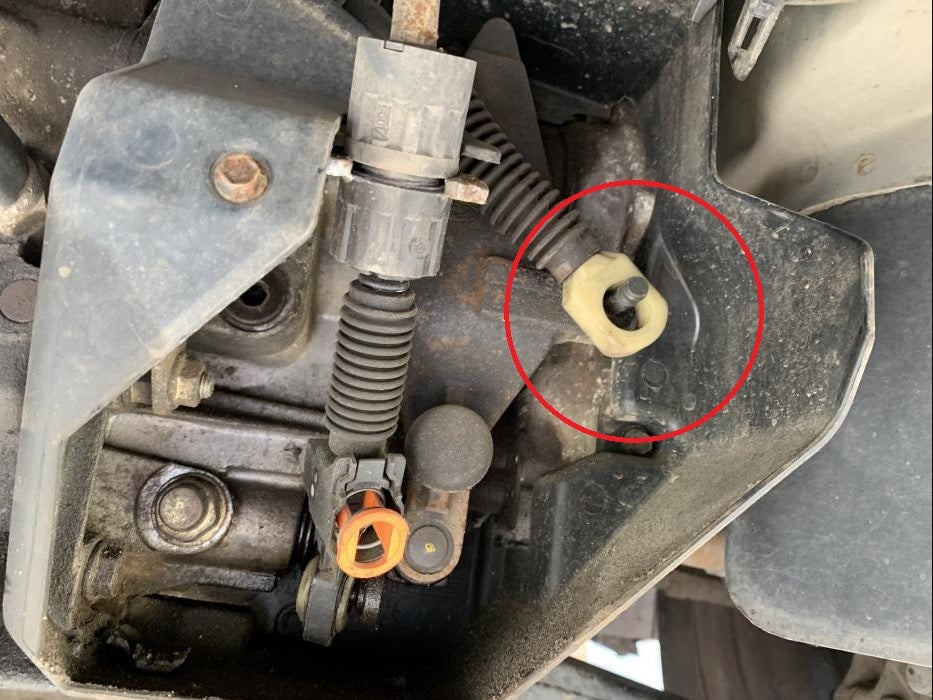

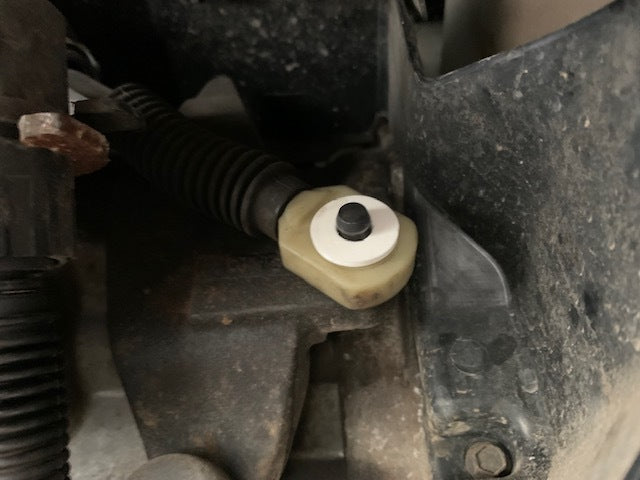

Small part to fill up the space of a missing gear lever cable bushing for Ford Focus Mk1 Zetec 1.6. It will probably fit a whole more load of car models but that's up to you to research.

Obviously print it with 100% infill as it's a constructive part and it takes only 8 minutes to print.

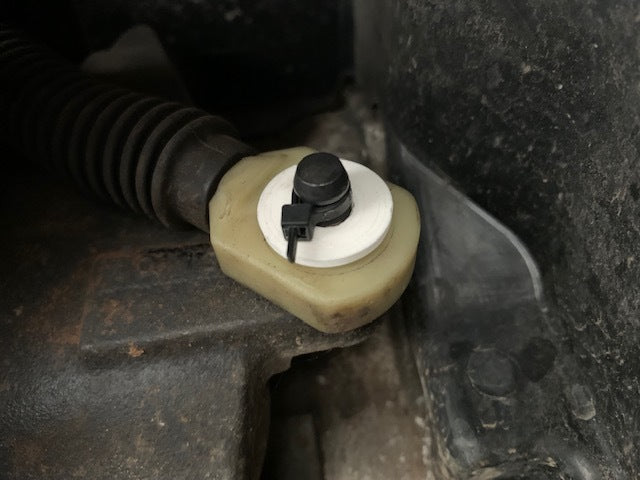

I used a zip-tie to prevent it from sliding off the gearbox (small chance that it would without it). Officially a metal C clip should be used to be sure that it will never come off unintended.

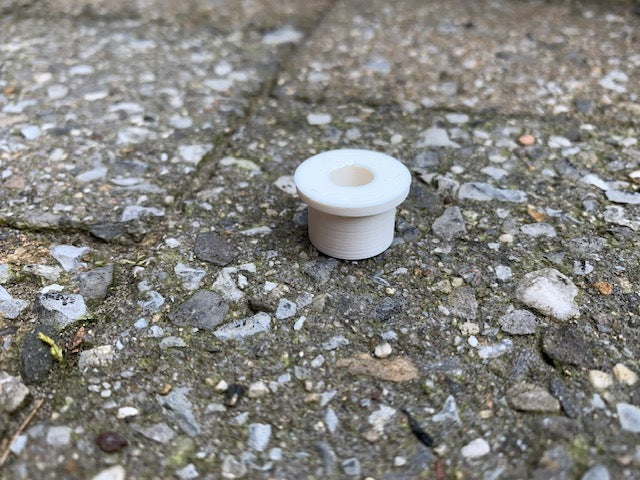

Outer diameter = 16.125mm, inner diameter = 8.4375mm, height = 12.7mm

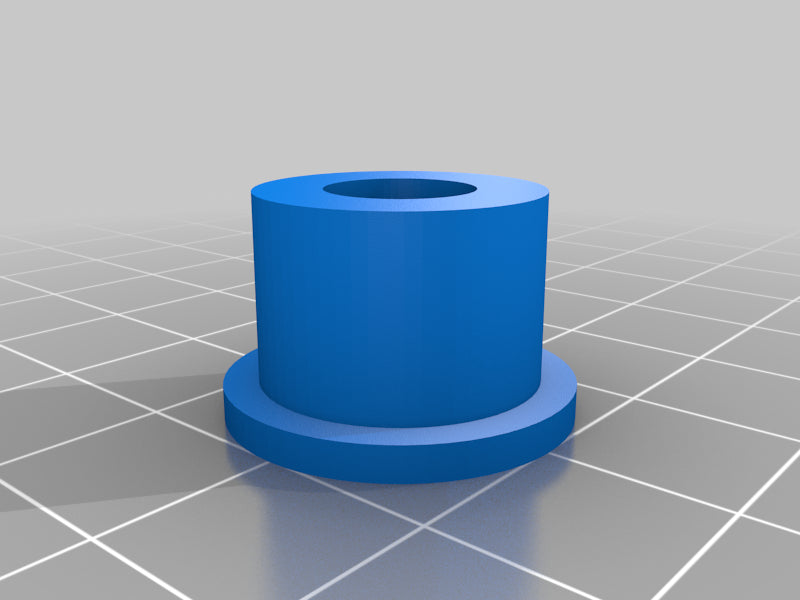

I've also uploaded the scad file i've made this stl with, but i didn't spend time on actually making it configurable. The FN parameter is just the smoothness of the objects which has no use to adjust. I only uploaded it for backup purposes. If you download OpenSCAD you can tinker with the code.

Compatible vehicles

• 1998-2004 Ford Focus MK1 (Zetec 1.6)

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

No special print instructions provided.

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Ford parts

Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
