Glovebox Latch Clips – 2006 Toyota Camry

Replace a broken or missing glovebox latch clips on your 2006 Toyota Camry with this 3D-printed part, produced to order by PartsRemade.

About this part

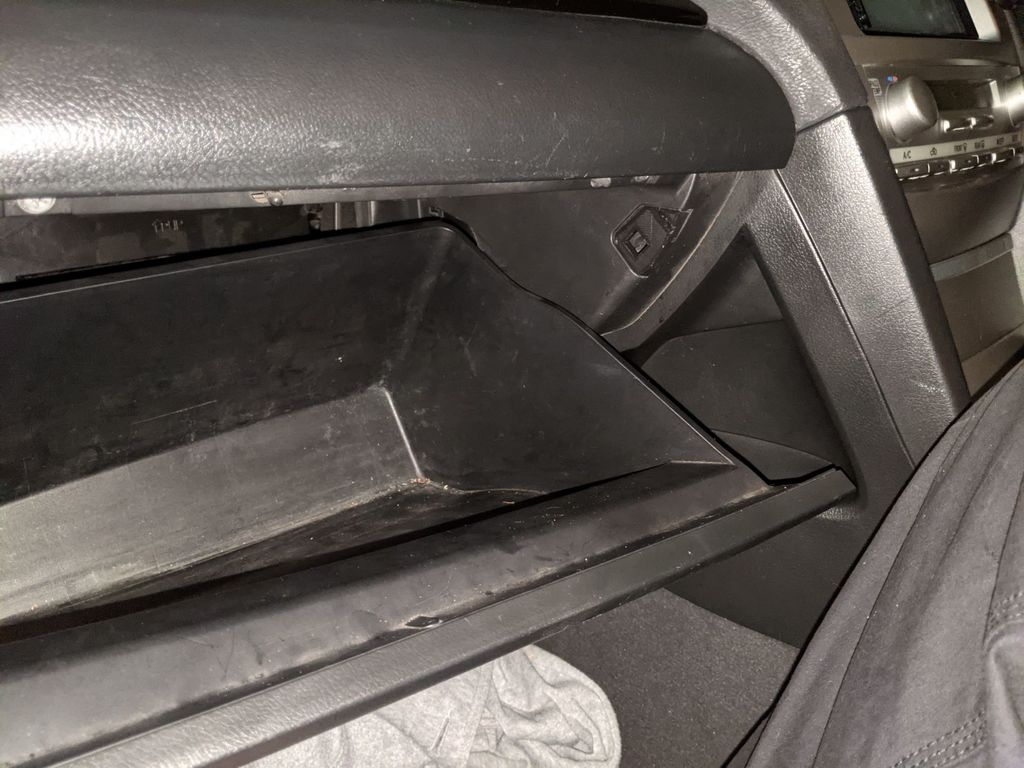

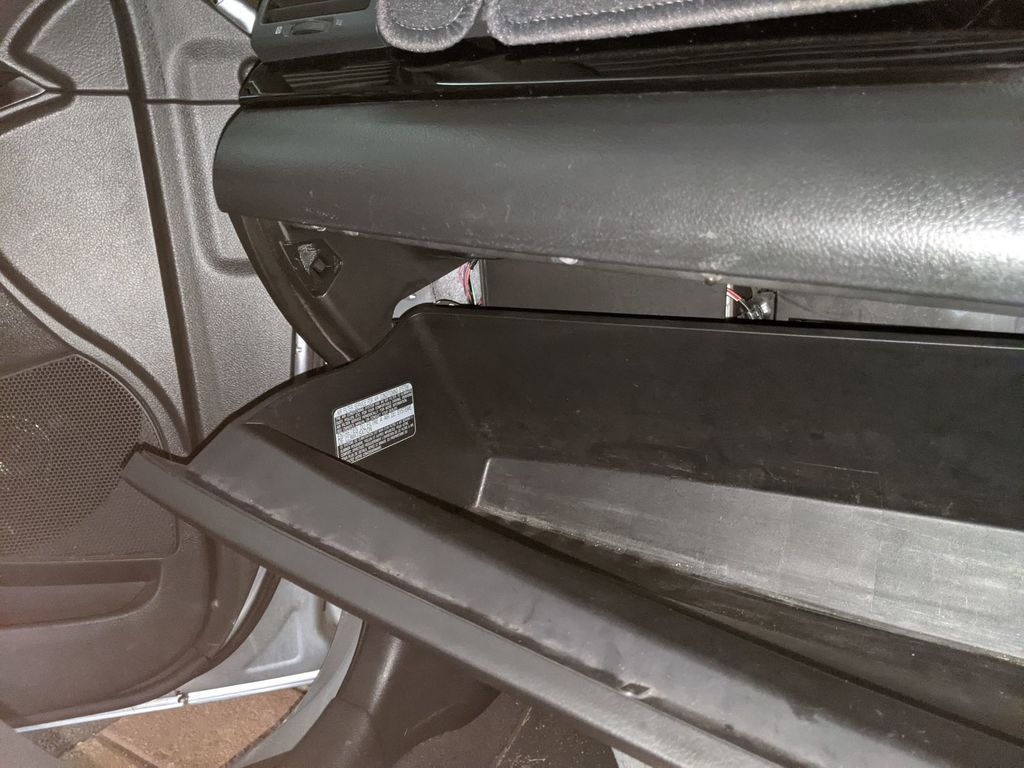

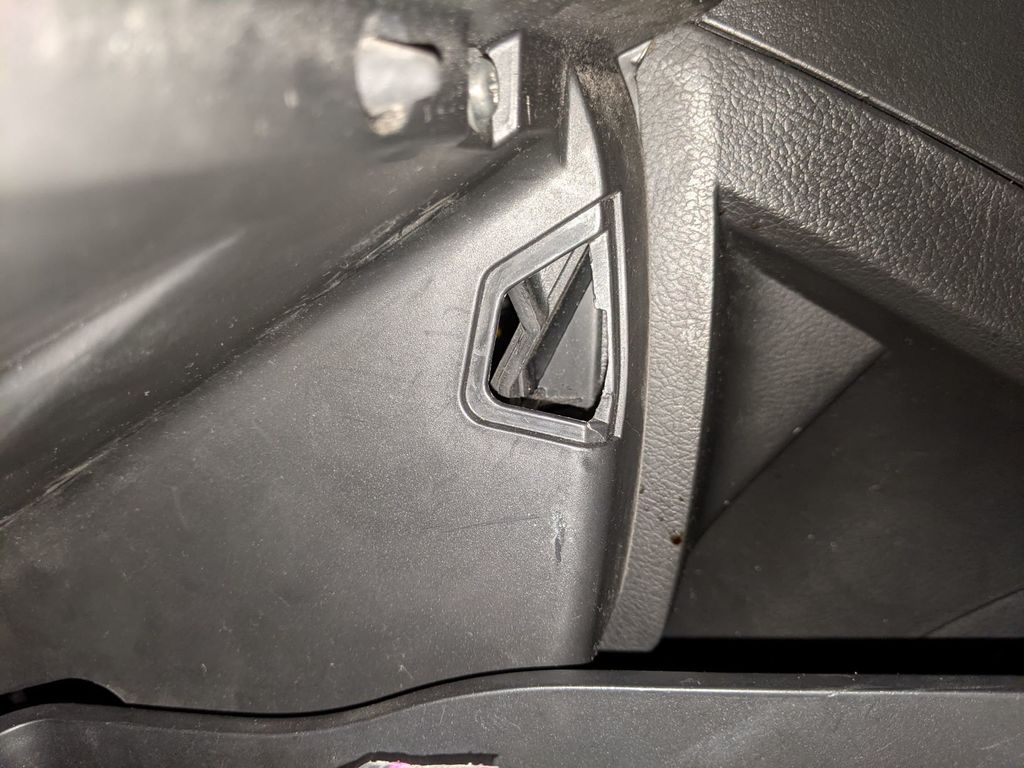

The glovebox never closed properly in my Aurion. The previous owner must've taken out the clips at some point to remove screws and never reinstalled them.

I could only find beige versions online for sale, They also had larger holes than the latch, so I would imagine the latch is quite sloppy in the hole.

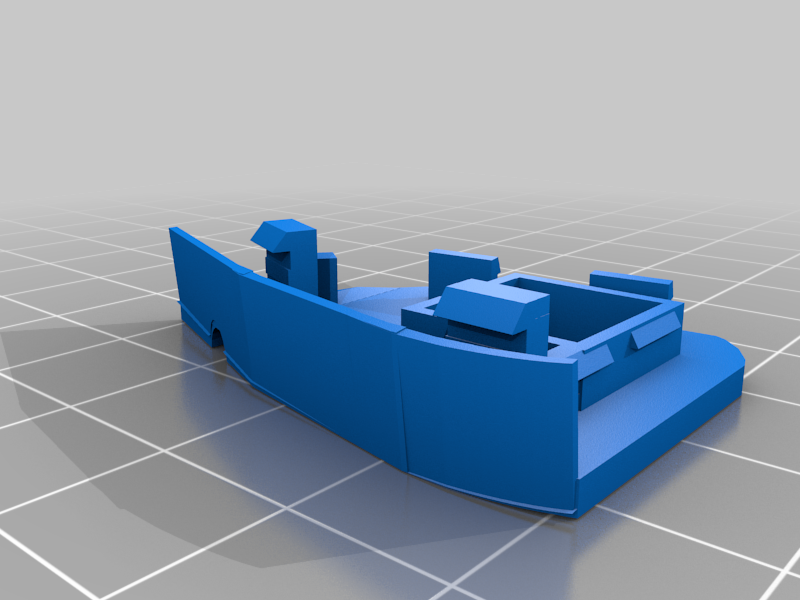

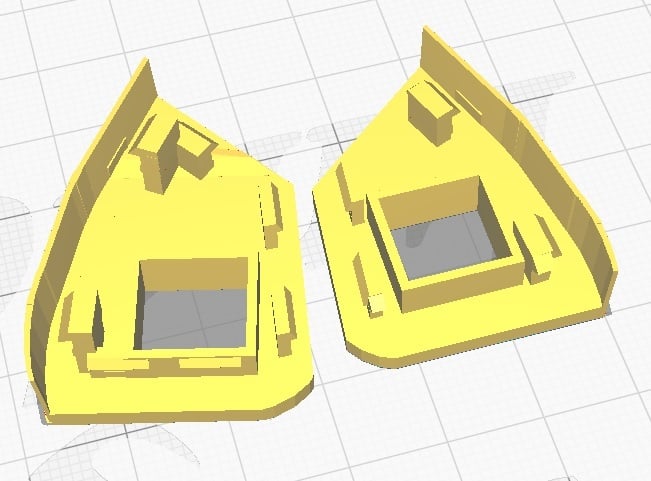

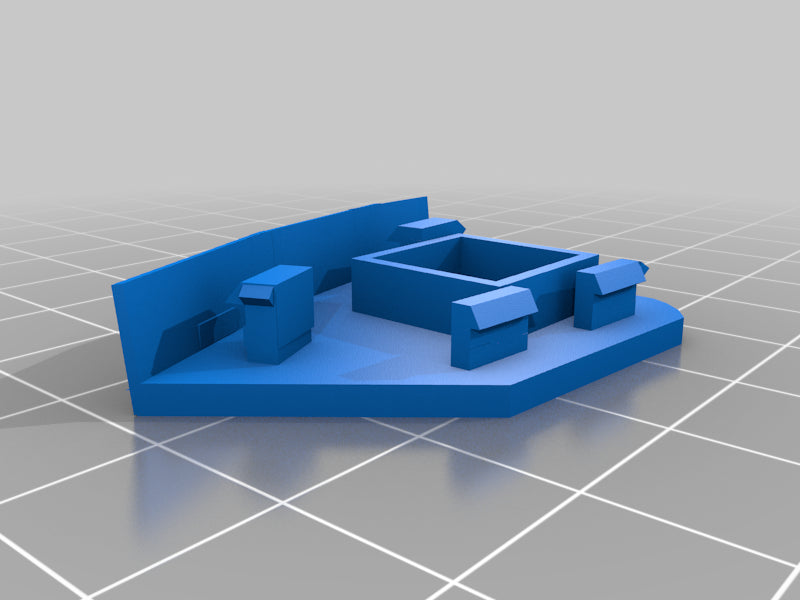

This contains Left and Right clip STL files, They are different sizes so you can't just mirror one.

The clips print fine at .2mm, printed at 100mm/s with 70mm/s walls. 2 layer top and bottom. with accelleration at 1000mm/s on my ender 3.

I did print the final versions that I'm using at .1mm with much slower speeds, as the overhangs on the clips don't droop. Aswell as the fact that it looks much smoother aestheticly. The .2mm versions do fit and snap in correctly, if you're not worried about the aesthetics you don't need to print fine or slow.

There are a few little lips in the models as they were made in tinkercad and I couldn't be bothered cleaning them all up. They're such small lines they don't seem to print anyway.

Compatible vehicles

• 2006 Toyota Camry

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Printer
Brand: Creality
Printer: Ender 3
Rafts: No Supports: No Resolution: 0.2 Infill: 20 Filament: CCDIY PLA+ Black

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Toyota parts

Browse all Toyota replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
