Gt86 Center Console Push Start Mount – 2012-2021 Toyota 86
Gt86 Center Console Push Start Mount – 2012-2021 Toyota 86
Replace a broken or missing gt86 center console push start mount on your 2012-2021 Toyota 86 with this 3D-printed part, produced to order by PartsRemade.
About this part

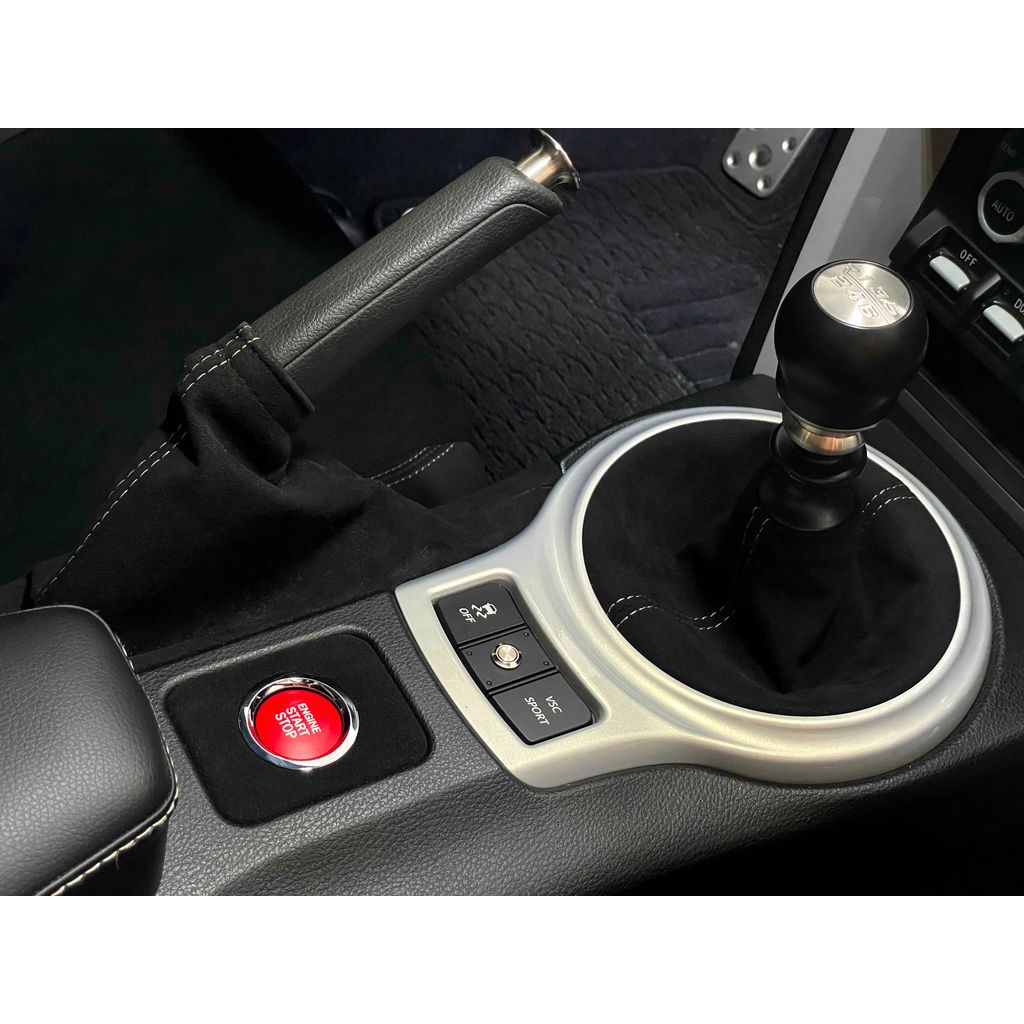

A solution for relocating the push button start to the recessed area in the center console. If you don't have heated seats this is just a blank area. Some people put decorative plates here but this is a more purposeful use of the space. This also allows you to swap out the cubby for the extended one without the push button.
Make sure to print in a material that can handle the heat of a vehicle in the sun. In my experience, PLA does not do well in a hot car. I used TPU for my print. ABS or PETG would work well too.
Print the drill template and remove your center console. Use the drill template to drill the five 3mm holes in the center console. The four in the corners will be used to mount the final piece. The center hole is a pilot hole for a hole saw. Use a 2 1/8" hole saw to cut a large hole in the center of the recessed area.
Now print the actual push button mount. Insert four M3 countersunk screws into the recessed holes in the corners. Use epoxy and/or nuts on the backside to keep the screws from falling out or spinning.
If you put the push button module into the piece you'll notice its a tad loose, this is so you can wrap the piece with some material and get the module in. It will be tight once you wrap it. I used black alcantara to match other trim in my interior. Cut out the center so you can shove the button in there.
Mount the piece into the console, cut and extend the wire harness, and put it all back together.
Compatible vehicles
- 2012-2021 Toyota 86
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Gt86 Center Console Push Start Mount |
|---|---|
| Make | Toyota |
| Model | 86 |
| Year | 2012 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (STL) |
| Part number | CAT-2f12ada8 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Toyota parts
Browse all Toyota replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
