Hard Top Roof Bracket – 2007-2021 Lotus Elise
Hard Top Roof Bracket – 2007-2021 Lotus Elise
Replace a broken or missing hard top roof bracket on your 2007-2021 Lotus Elise with this 3D-printed part, produced to order by PartsRemade.
About this part

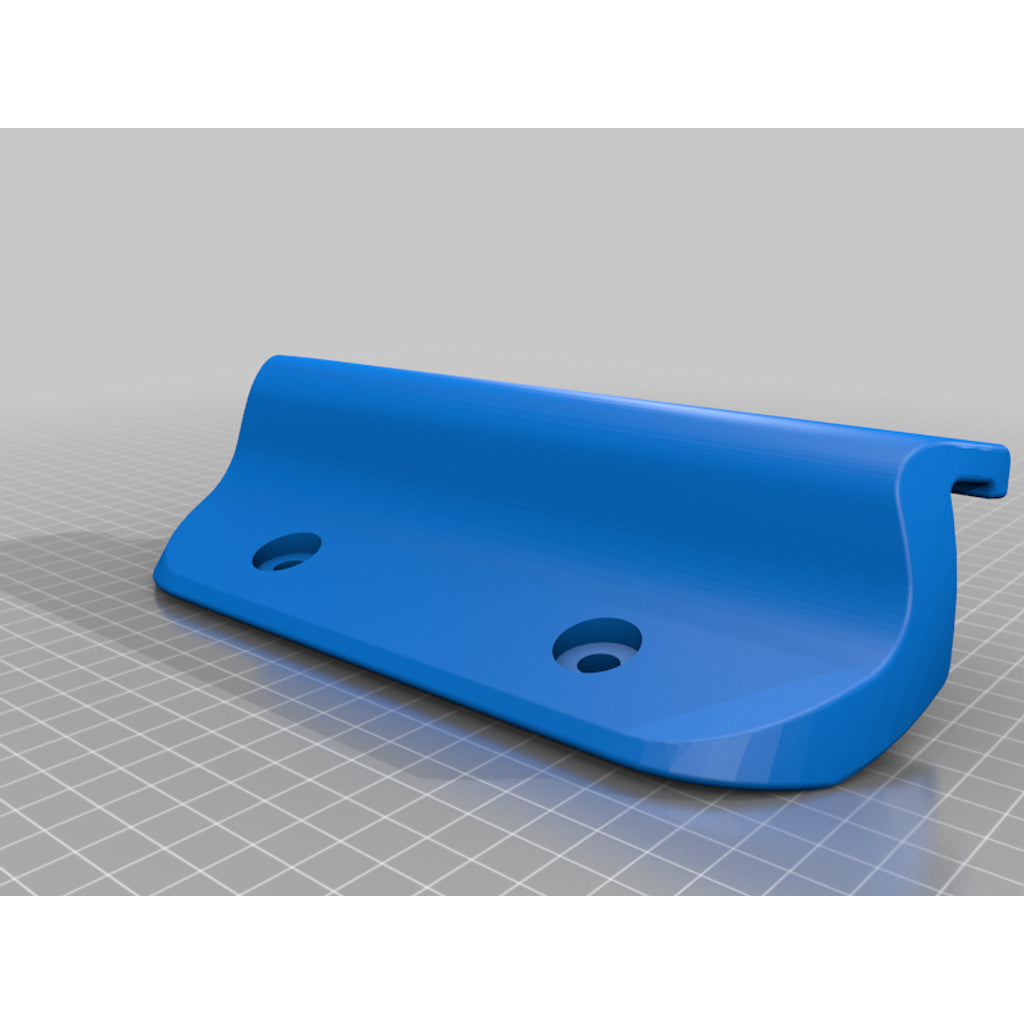

Two versions of a Lotus Elise / Exige Bracket (OEM part A120V0347S) for the OEM hardtop. Lotus 2007 S2 and beyond probably already have this if they have the hardtop. For those of you who do not have this, I HIGHLY recommend it. Do not rely on the two little plastic rear corner cantrails (OEM part C116B0467F, and C116B0466F) to hold the entire backside of the roof down.
Full details can be seen here:
https://www.lotustalk.com/threads/hard-top-3d-printed-rear-bracket.484797/
REV B (my preference) is closest to the OEM bracket.
REV C is simpler to print and uses less material.
*Additional parts needed* -
Well Nuts (threaded insert to drill into the hardtop) - https://www.amazon.com/gp/product/B0040CVWRY/
M8x20mm bolts (2 needed) -
https://www.amazon.com/uxcell-M8x20mm-Stainless-Security-Machine/dp/B01MYX5A39
Compatible vehicles
- 2007-2021 Lotus Elise
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Hard Top Roof Bracket |
|---|---|
| Make | Lotus |
| Model | Elise |
| Year | 2007 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (STL) |
| Part number | CAT-40723eb9 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Lotus parts
Browse all Lotus replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
