Replace a broken or missing hazard triangle compartment latch on your 2001-2005 Audi A4 Avant B6 with this 3D-printed part, produced to order by PartsRemade.
About this part
Update (2/26/21): I've uploaded V3 files. These are similar to the previous version, but the main shaft is hex shaped versus the older "D" style shaft. I noticed that the D style would develop slop in the pawl, so turning the knob to close the door would need more than the 90 degree angle. The shaft is still press fit into the knob and glued into place, but it is meant to be printed on it's side for better strength.

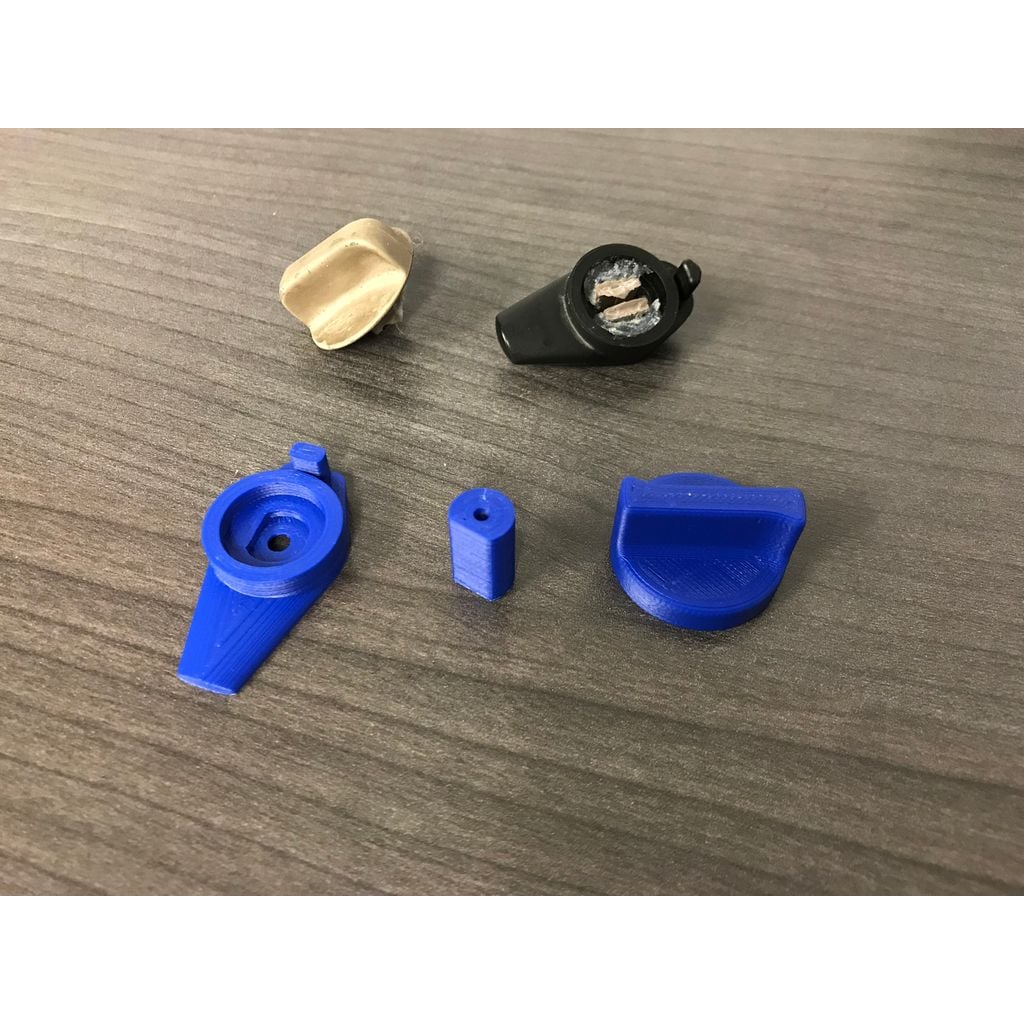

The latch that closes the hazard triangle compartment on my B6 A4 Avant had broken. But unlike others where the catch breaks, the knob on mine broke. It had been previously repaired with glue, so instead of gluing it again only for it fail shortly I decided to use my 3D printer. So I used GrMechEng's assembly which is comprised of three parts, the catch, shaft, and knob. The catch doesn't have a tab like the original Audi part that only allows 90 degree of rotation. However, matthewlaberge's design of the catch does retain this feature. Thankfully, he uploaded the STEP file, so I was able to modify it to accept the shaft from the other design.
Assembly:
1. Apply glue to hole in knob and insert shaft.
2. Slip knob and shaft through hole in Audi cover.
3. Connect catch using a M3 flathead screw, the hole in the shaft is sized appropriately. But if necessary can be drilled out slightly. Done!
Note: Shaft may need to be scaled down slightly to ensure a snug fit.
Compatible vehicles
- 2001-2005 Audi A4 Avant B6
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Hazard Triangle Compartment Latch |
|---|---|
| Make | Audi |
| Model | A4 Avant |
| Year | 2001 |
| Production | 3D printed to order (FDM) |
| Design files | 6 (STL) |
| Part number | CAT-8d812003 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
