Headlight Hinge Bolt Sleeve – 1997-2004 Chevrolet Corvette C5

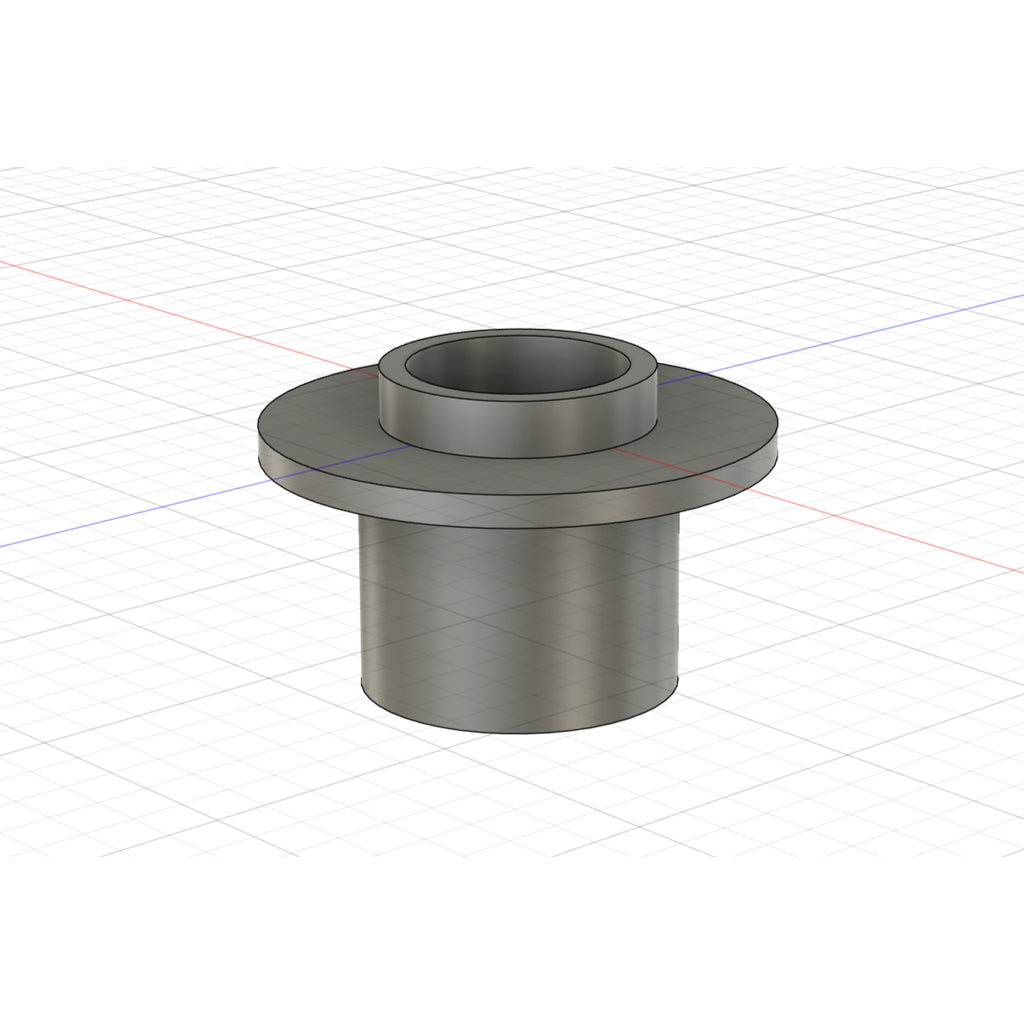

3D-printed replacement headlight hinge bolt sleeve made for the 1997-2004 Chevrolet Corvette C5: a simple way to replace a cracked, lost or hard-to-find original part.

About this part

this kit is for the 1997 - 2004 C5 corvette.
no need to spend $50+ USD on replacement kits that don't even include lock nuts
this print allows you to upgrade/replace your headlight hinge bolts and NYLON shims to a better more snug fit then OEM!
for this project you will need:
4pcs- M5 x16mm bolts (OEM is also M5)
4pcs- M5 lock nuts
4pcs- M6 normal washers make sure they are M6 NOT M5
4pcs- of these 3D printed shims

should cost you around $5 and about 15mins to install
I recommend printing in ABS but other materials should be fine as well, supports will be needed and infill shouldn't matter too much

Compatible vehicles

• 1997-2004 Chevrolet Corvette C5

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Chevrolet parts

Browse all Chevrolet replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
