Headlight Projector Bracket – 2006-2008 Bmw 3 Series E90/E91 (Pre-LCI)

3D-printed replacement headlight projector bracket made for the 2006-2008 Bmw 3 Series E90/E91 (Pre-LCI): a simple way to replace a cracked, lost or hard-to-find original part.

About this part

WARNING!!! I recently found out the projector gets TOO HOT for the HDPE and my bracket melted slightly, enough that it was drooping down in the headlight. I am currently machining the bracket out of aluminum, but wanted to leaves these files up in case someone could print in a high-temperatue plastic.

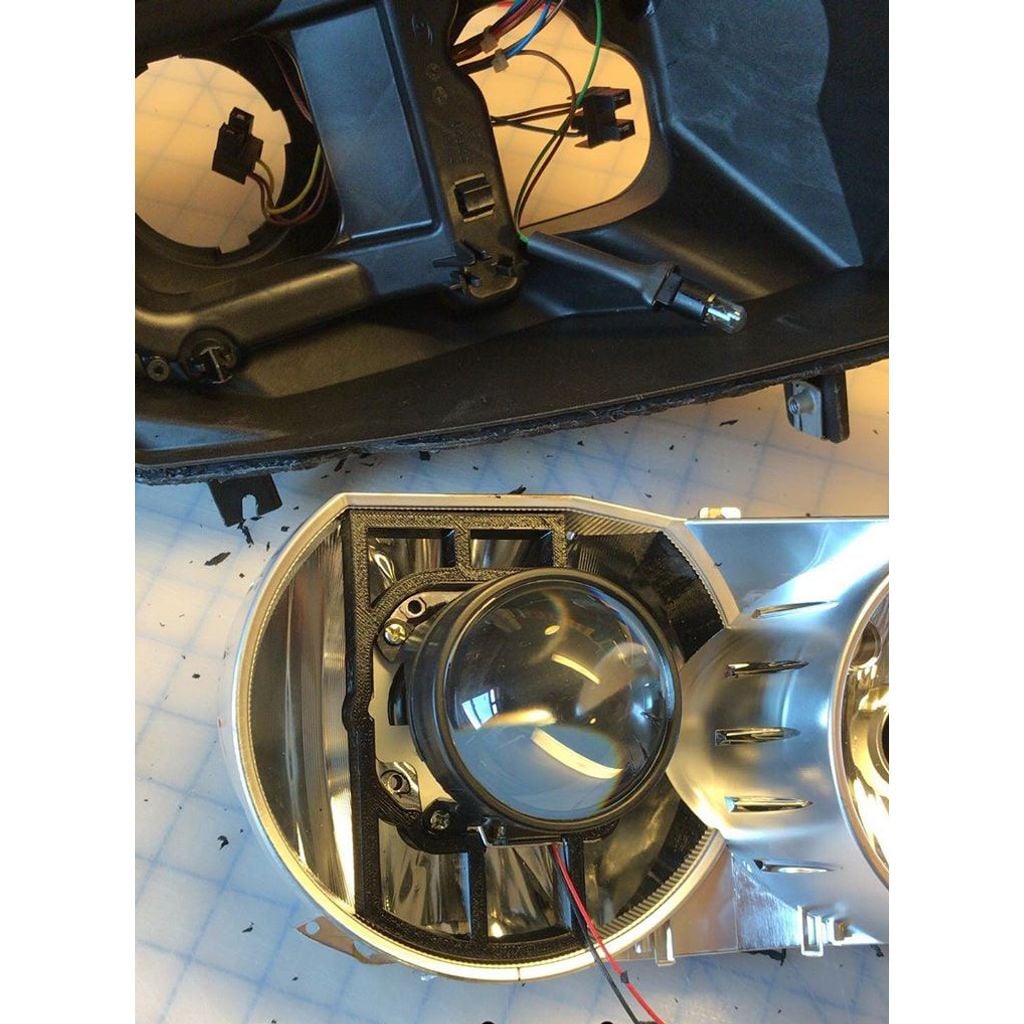

This bracket solves the problem of mounting an H1 mini-style projector in a BMW E90/E91 pre-LCI housing, due to the low beam hole being offset to one side. It also assures that the projector is mounted in the correct vertical and rotational position for E46-R extended shrouds (https://www.theretrofitsource.com/e46-r-extended-48771.html). It is designed specifically for the ACME Super H1 bi-xenon projectors (https://www.theretrofitsource.com/bi-xenon-acme-super-h1.html), but may fit earlier versions of the Morimoto mini, and some other generic H1 projectors.

Also included are mounting blocks for ACME RGB LED demon eyes that slide into the top rectangle of the bracket.

Compatible vehicles

• 2006-2008 Bmw 3 Series E90/E91 (Pre-LCI)

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More BMW parts

Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
