Replace a broken or missing headlight switch internal plastic on your 1990-2000 Bmw 3 Series E36 with this 3D-printed part, produced to order by PartsRemade.
About this part
ATTENTION UPDATE V2 added.
Description in English and Português
English
UPDATE 2018/03/05
V2 is created to solve some problems with V1.
V1 some times doesn't switch the presence light and the left rear light

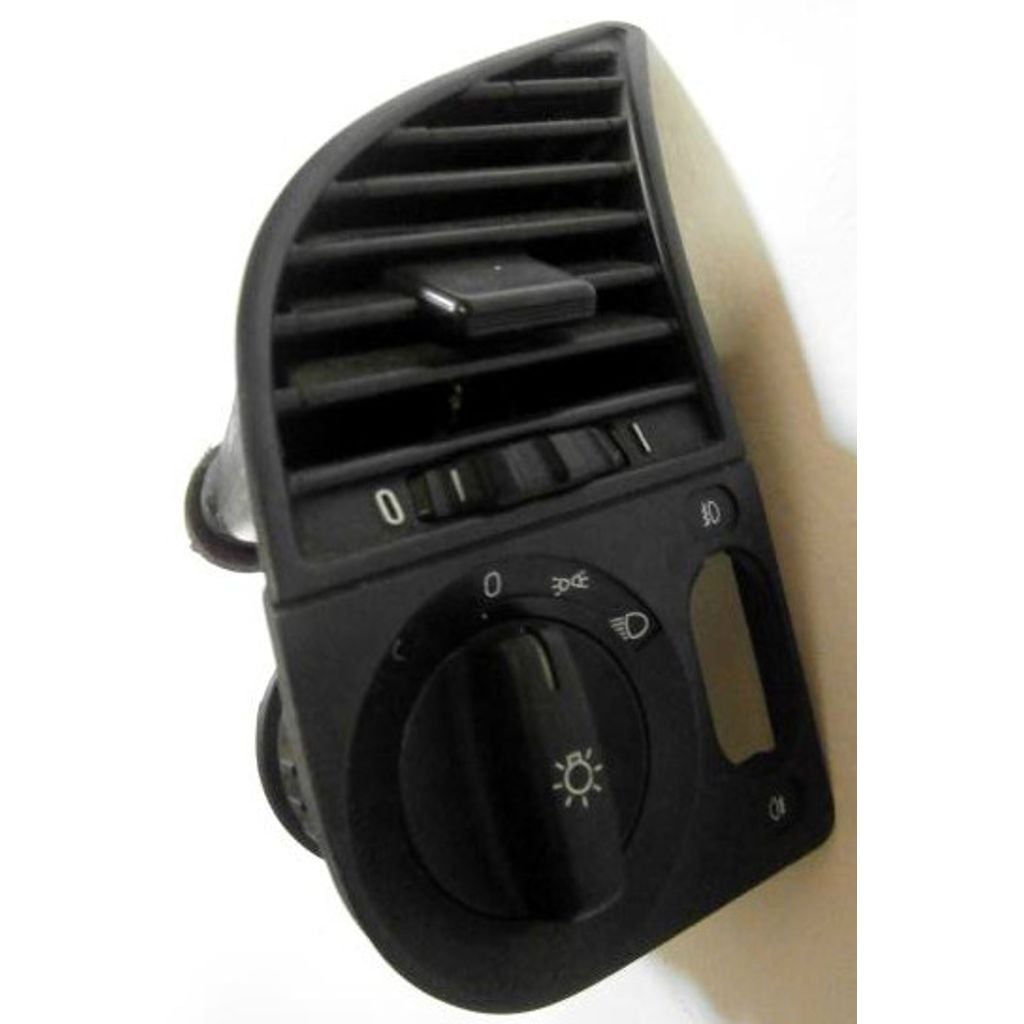

This is the inside plastic of light switch.
I have bought another in car spares and it was worst than mine.
The design it's not perfect but it works very well and the light warnings stopped :)
IMPORTANT, when assembling the part:
- Be careful with the plastic pin as shown in picture 20171006_183517b.jpg it needs to be to the right side.
- If the base is too thick and doesn't go all the way down, then the switch will be stuck. Maybe you need to sand it a little bit.
Spray some WD40 on the metal contacts while its open.
My other BMW design: https://www.thingiverse.com/thing:4147732
Portuguese (translated):
UPDATE 2018/03/05
V2 was created to solve some problems with V1.
V1 sometimes doesn't turn on the front presence lights and the left rear light.
This part is the interior of the light switch.
I bought one at a salvage yard and it was much worse than mine.
The design is not perfect but it works well and the light warnings stopped :)
IMPORTANT, before installing the part:
- Be careful with the plastic pin as shown in photo 20171006_183517b.jpg, it needs to be on the correct side. V1 sometimes doesn't turn on the presence lights and the left rear light.
- If the base is too thick and doesn't go all the way to the bottom, the switch will get stuck. It may be necessary to sand it a little.
Take the opportunity to spray WD40 on the metal contacts while it is open.
My other BMW design: https://www.thingiverse.com/thing:4147732
Compatible vehicles
- 1990-2000 Bmw 3 Series E36
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Headlight Switch Internal Plastic |
|---|---|
| Make | BMW |
| Model | 3 Series |
| Year | 1990 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (STL) |
| Part number | CAT-c54b41bd |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
