Headlight Ventilation Grommet – 2003-2010 Bmw 5 Series E60/E61

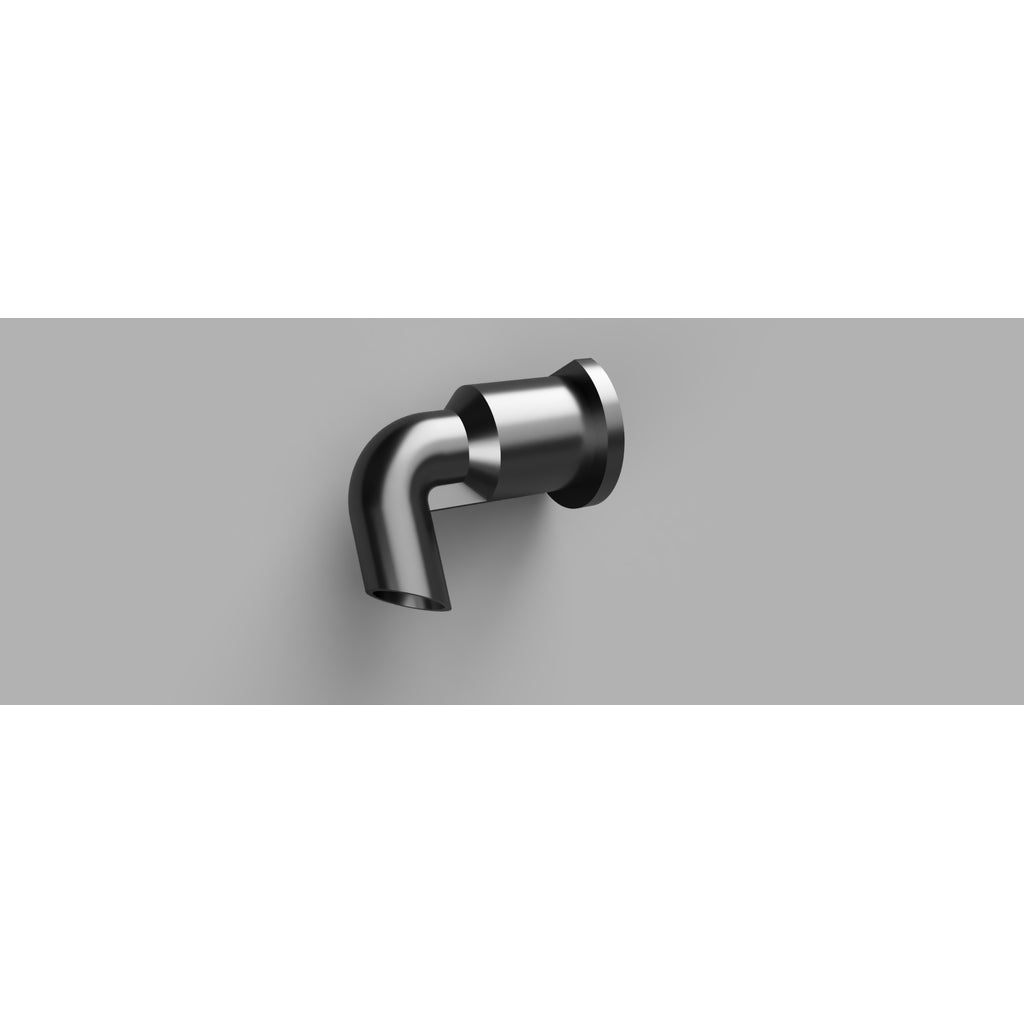

3D-printed replacement headlight ventilation grommet made for the 2003-2010 Bmw 5 Series E60/E61: a simple way to replace a cracked, lost or hard-to-find original part.

About this part

On Bi-Xenon headlights of BMW E60/E61 there are 2 critical grommets for venilation on each headlight. If they are lost or damaged (specially the outer ones) it's likely that you get huminity or even fluid water in your headlights. Print them with TPU to use them and applicate some silicone fat.

There are also other possible reasons like the "eyebrows" light sockets in the headlights as described by Hella (https://www.hella.com/techworld/de/bi/BMW-E60-Scheinwerfer-Betauung-9586/) but these grommets are at least one possible part of the puzzle.

Update: I found the original form a bit hard to print so I updated it a little bit thickening the exiting tube and enlagring the support there. You'll find that in the second design.

Best print it standing on the flange without any supports. Use the highest possible temperature for your TPU fillament (I do use sunlu TPU 190-210°C so I used 210°C) and use round about half your usual PLA print speed (for me it was around 1500mm/min). Increase your Extrusion-Multiplikator by roughly 5-10%. No need for heated bed. I printed with raft even though that's not needed.

Compatible vehicles

• 2003-2010 Bmw 5 Series E60/E61

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
