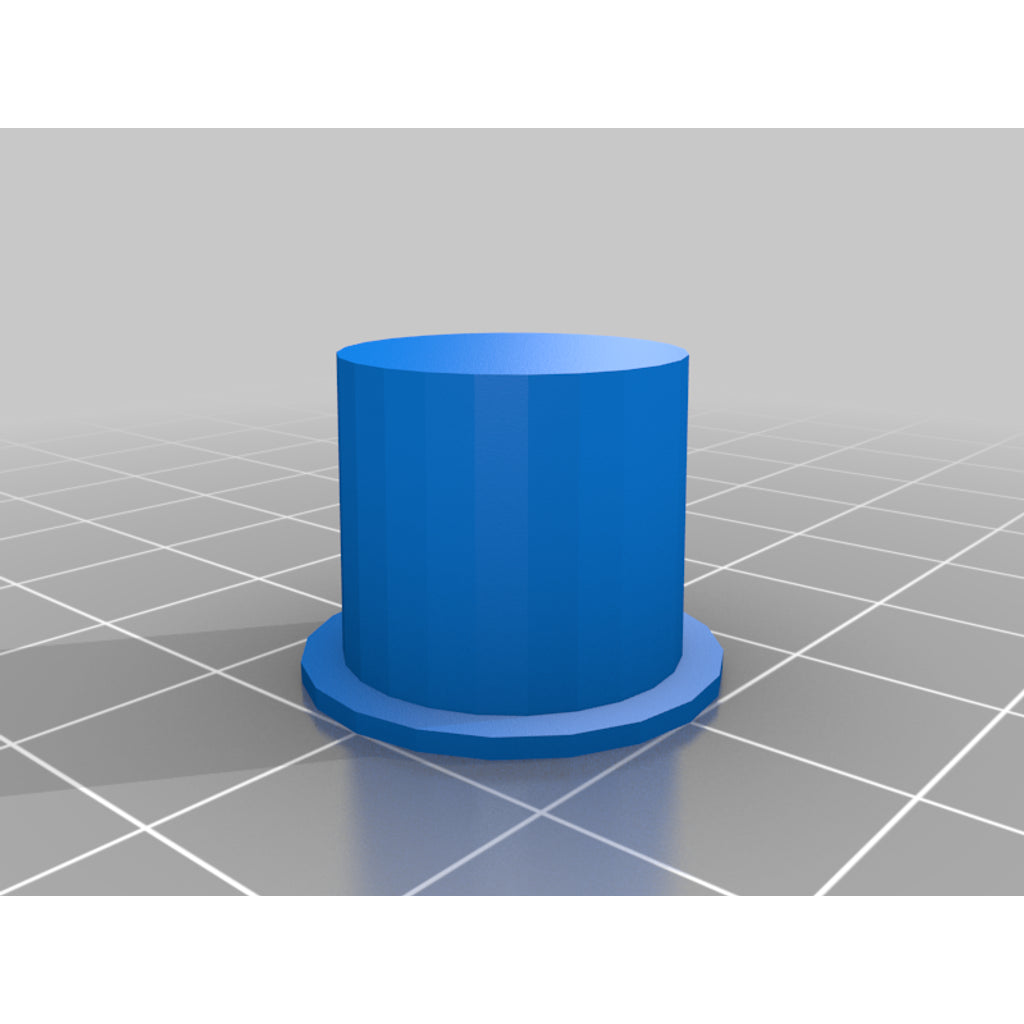

Heater Hose Quick Connector Plug – 2000-2005 Audi A4 B6

3D-printed replacement heater hose quick connector plug made for the 2000-2005 Audi A4 B6: a simple way to replace a cracked, lost or hard-to-find original part.

About this part

The quick connector between the Audi A4 B6 often cracks and gives you a slow coolant leak which most, top off to compensate since its not that bigger deal. However, these connectors often snap severing the connection between the heater hose and the coolant flange. This plug will squeeze into the broken connector from the flange side containing your coolant until you receive the replacement parts in the mail. Its tapered a few percent to give a tight fit. To give the printed part the strength to actually plug the connector you will need to anneal the print, 70C / 170f ( in the oven for an hour, then let cool with the oven without removing) Quite often there will be shrinkage from the annealing process, so you will probably have to scale the print 105% to allow for the shrinkage. When you plug the connector you can insulate the print by using a 20mm washer cut out from an old inner tube, and a similar silver foil washer placed between the print and the flange.


This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/hXmycT0sLu5

Compatible vehicles

• 2000-2005 Audi A4 B6

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Audi parts

Browse all Audi replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
