Homelink Bracket – 2023 Tesla Model Y
Homelink Bracket – 2023 Tesla Model Y
Replace a broken or missing homelink bracket on your 2023 Tesla Model Y with this 3D-printed part, produced to order by PartsRemade.
About this part

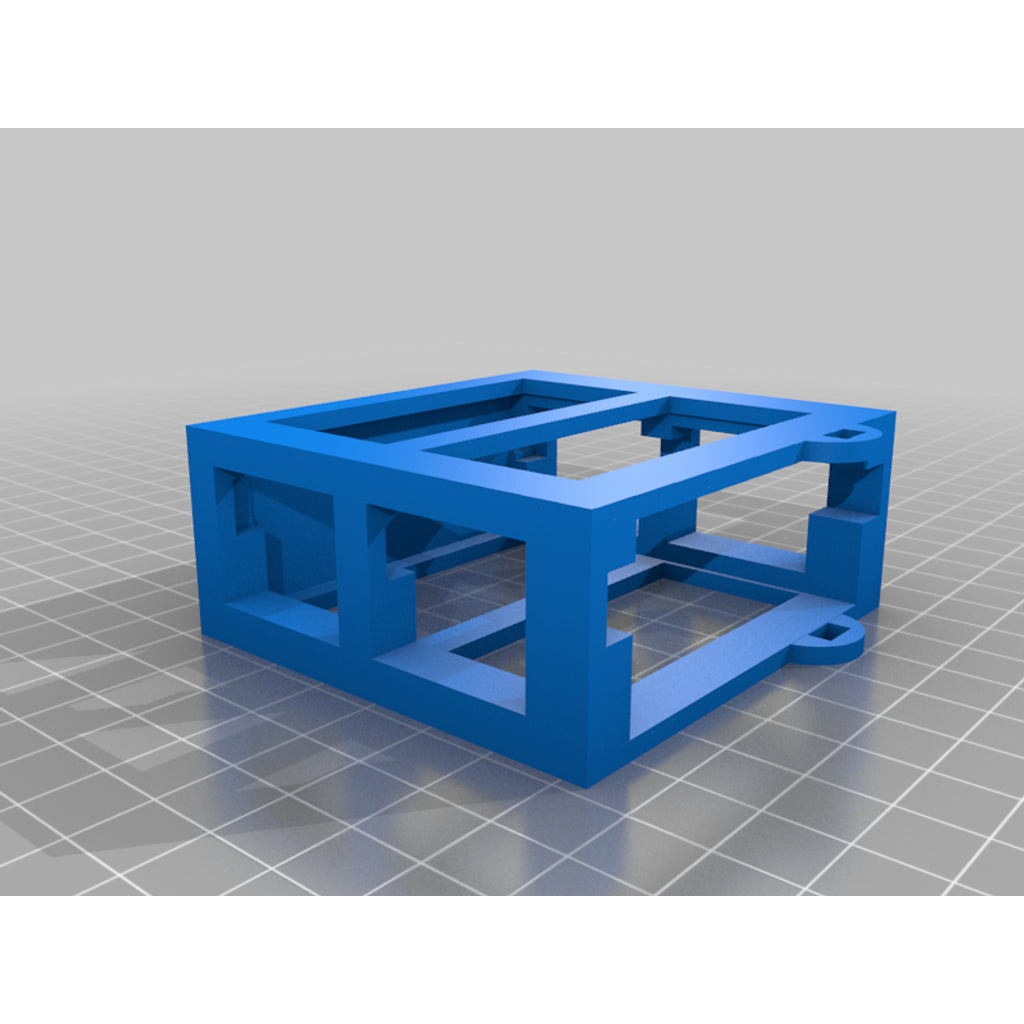

Bracket to retrofit a HomeLink garage door opener into a 2023 Tesla Model Y. Remixed rhovey's bracket with the following changes:
1) Changed mounting position to more closely align with the actual Tesla bracket (from pmlody’s design https://www.printables.com/model/382187-tesla-3-homelink-bracket)
2) Reduced much of the bulk from original design to reduce signal interference
3) Tuned up a few of the joints to add stability
4) Added holes to accommodate a zip tie to help secure the module into the bracket (don't over-tighten the zip tie!)
Reference this video for the step-by-step process (module part number and bolt size included in the video description).
https://youtu.be/6_5_g_Wc75A
Installation and configuration took me only about 20 min total, and did NOT require a Tesla technician. YMMV.
Print settings:
Supports enabled
55% infill
PETG filament to increase durability and heat tolerance
.20 resolution
Compatible vehicles
- 2023 Tesla Model Y
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Homelink Bracket |
|---|---|
| Make | Tesla |
| Model | Model Y |
| Year | 2023 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-a370605e |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Tesla parts
Browse all Tesla replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
