Hood Rod Holder Grommet – 2014 Toyota Corolla
Hood Rod Holder Grommet – 2014 Toyota Corolla

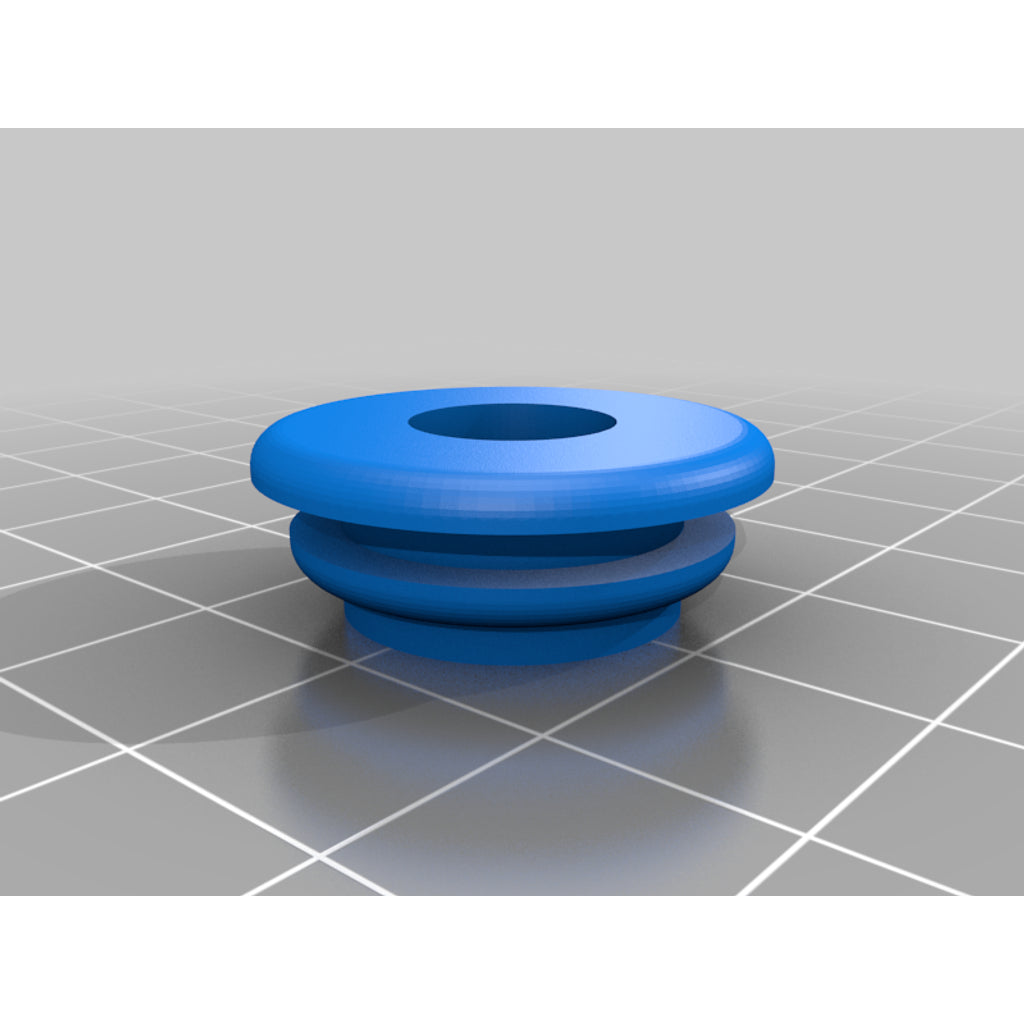

3D-printed replacement hood rod holder grommet made for the 2014 Toyota Corolla: a simple way to replace a cracked, lost or hard-to-find original part.
About this part
Rubber Grommet printed with NinjaFlex, to substitute the original hard plastic part which created noise under certain conditions.
Compatible vehicles
- 2014 Toyota Corolla
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Hood Rod Holder Grommet |
|---|---|
| Make | Toyota |
| Model | Corolla |
| Year | 2014 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-eb6beb63 |
Print settings
##Printing in an UP mini
If printing with **NinjaFlex** on an UP Mini this are the settings I used (printing NinjaFlex on an Up mini was a lot trickier than I thought).
- Extruder Temp: 259?
- Quality: Fine
- Resolution: 0.20mm
- Fill: Loose
- Raft: No raft
In an UP mini not using those setting produces, well... junk!
##Story
After I had an accident and the whole front was replaced, I kept hearing a strange sound only at about 11000RPM's, they where not able to fine any mechanical issues at the body shop nor at the dealer, everything seemed to be in place, and the noise was tricky to reproduce to say the least but quite annoying. After some trial an error I noticed that it had something to do with the Hood rod, since removing it took care of the sound, the original grommet is made of hard plastic (I suspect some sort of Nylon) and it seems like once removed it breaks and needs to be replaced, maybe they kept the original after replacing the front, any how it seemed hard enough not to grab the rod strongly though creating noise when it vibrated.
I looked for a rubber one with not much success and since I had a printer and some NinjaFlex why not make my own? :)
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Toyota parts
Browse all Toyota replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
