Replace a broken or missing hud mount on your 2018 Ford Focus MK4 with this 3D-printed part, produced to order by PartsRemade.
About this part
Hi!

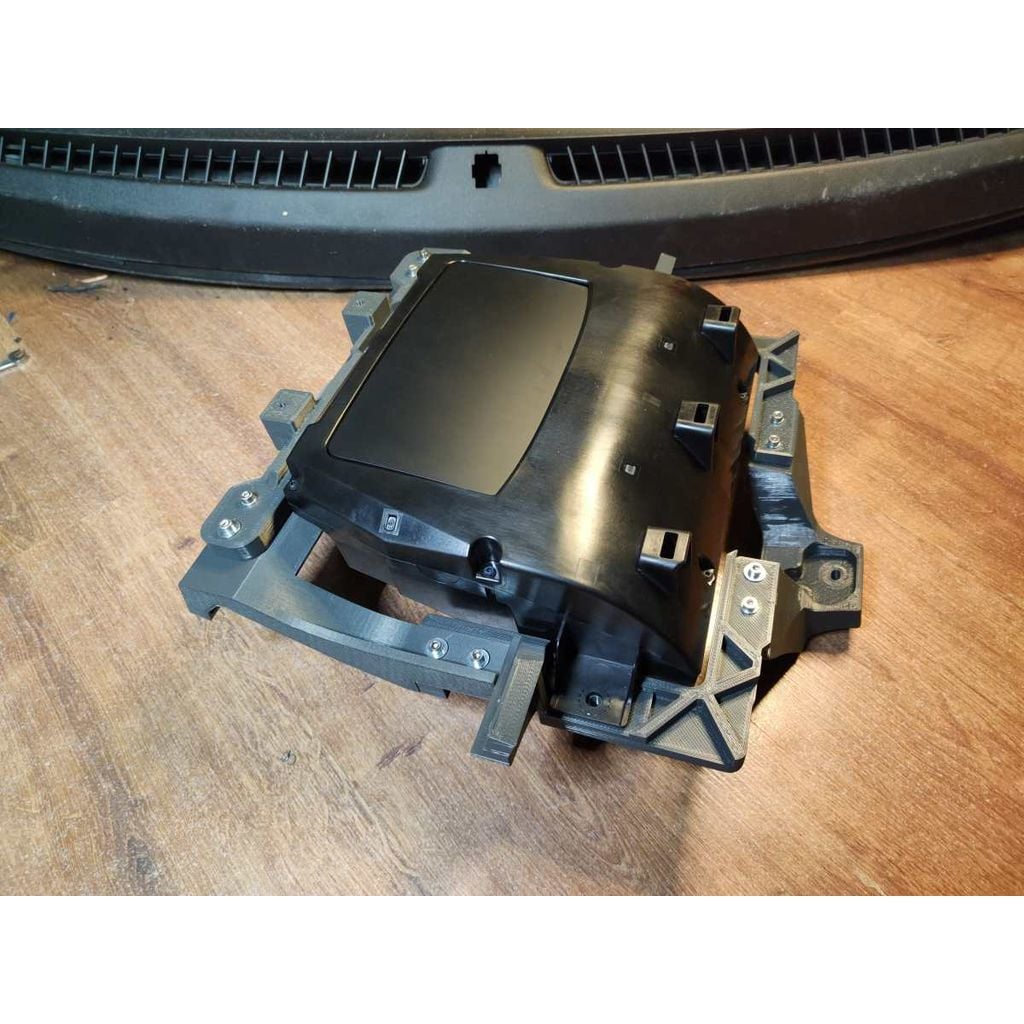

This is a preliminary version of HUD (headup display) mounting frame for Ford Focus MK4.
Retrofitting HUD is complicated and requires many operations. Main problem is to mount the HUD since the part which holds the HUD is not specified as spare part, it always comes with the complete dashboard, thus very, very costly. My project gives an option not to use this expensive part.
The other problem is to cut the dash, so that all mounting holes are in the right place. I have designed some stencils parts which gives a perfect locations for all wholes and easy cutouts.
Stencils are not scaled up! They can be printed in PLA for ease.
Galleries and post-mount info: https://www.formod.eu/hud.php
Compatible vehicles
- 2018 Ford Focus MK4
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Hud Mount |
|---|---|
| Make | Ford |
| Model | Focus |
| Year | 2018 |
| Production | 3D printed to order (FDM) |
| Design files | 18 (STL) |
| Part number | CAT-f6770e9b |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
