Hvac Blend Door Main Gear – 1998 Jeep Cherokee

Replace a broken or missing hvac blend door main gear on your 1998 Jeep Cherokee with this 3D-printed part, produced to order by PartsRemade.

About this part

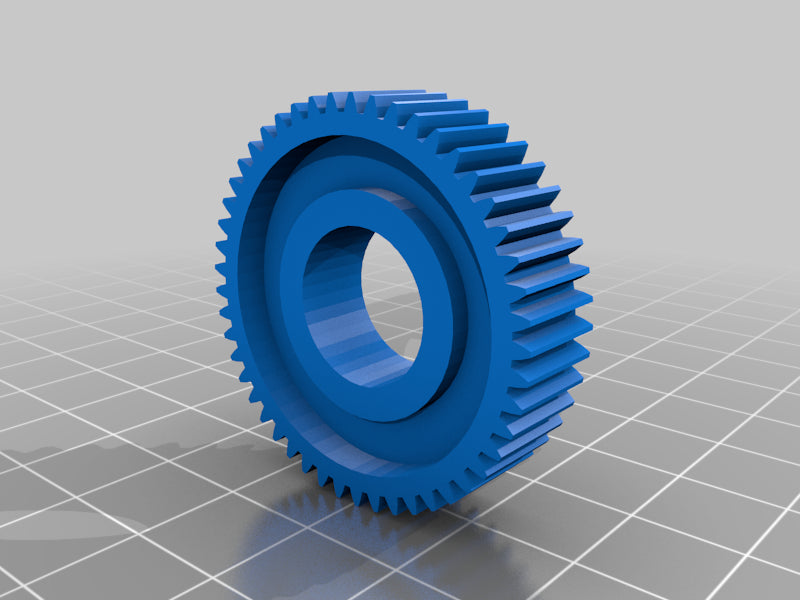

This is a replacement main gear for the HVAC blend door actuator that tends to crack and break with age. From what I could find, this gear should also work for the following units as well in addition to some Mercedes-Benz models. List Below.

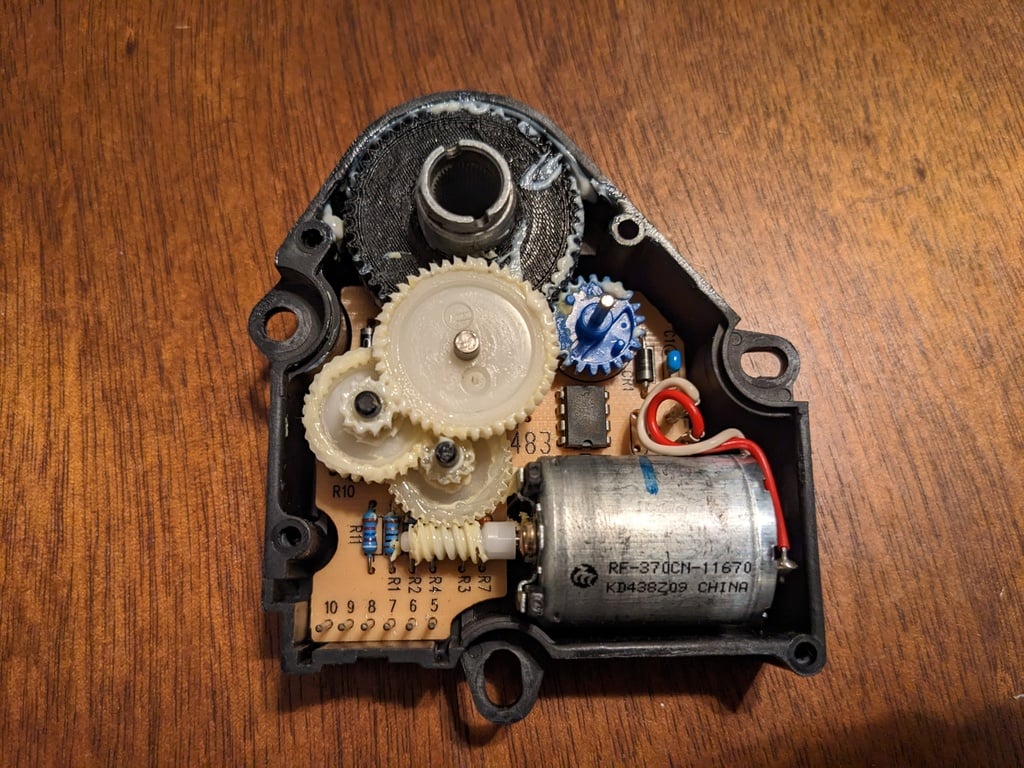

if you are unsure, disassemble your unit and compare with attached photo and gear. It may work for your use case as well.
When servicing take care to note the orientation of the metal shaft in addition to the blue gear to make sure alignment does not get lost. Install with flat side of gear facing up. Be sure to lubricate with a plastic safe lubricant and reassemble!
Print with the flat side to the bed of the printer with maximum infill. Choose suitable filament that can withstand torque and high heat for reliable operation.
BUICK CENTURY 1997-2005
BUICK REGAL 1988-2004
BUICK SOMERSET 1987
CADILLAC ESCALADE 1999-2000
CHEVROLET BERETTA 1987-1990
CHEVROLET C1500 PICKUP 1995-1999
CHEVROLET C1500 SUBURBAN 1995-1997
CHEVROLET C2500 PICKUP 1995-1999
CHEVROLET C2500 SUBURBAN 1995-1999
CHEVROLET C35 1995-2000
CHEVROLET C3500 PICKUP 1995-2002
CHEVROLET CLASSIC 2004-2005
CHEVROLET CORSICA 1987-1989
CHEVROLET CORVETTE 1997-2003
CHEVROLET EXPRESS 1500 2003-2014
CHEVROLET EXPRESS 2500 2003-2015
CHEVROLET EXPRESS 3500 2003-2015
CHEVROLET EXPRESS 4500 2009-2015
CHEVROLET EXPRESS CARGO 2012-2014
CHEVROLET EXPRESS PASAJEROS 2011-2014
CHEVROLET IMPALA 2000-2003
CHEVROLET K1500 PICKUP 1995-1998
CHEVROLET K1500 SUBURBAN 1996-1999
CHEVROLET K2500 PICKUP 1995-2000
CHEVROLET K2500 SUBURBAN 1995-1999
CHEVROLET K3500 PICKUP 1995-2000
CHEVROLET LUMINA 1990-2001
CHEVROLET LUMINA APV 1990-1991
CHEVROLET MALIBU 1998-2003
CHEVROLET MONTE CARLO 1995-2002
CHEVROLET SILVERADO 2500 2000
CHEVROLET SILVERADO 3500 2002
CHEVROLET TAHOE 1995-2000
CHEVROLET VENTURE 1997-2000
GMC C1500 PICKUP 1995-1998
GMC C1500 SUBURBAN 1995-1999
GMC C2500 PICKUP 1995-2000
GMC C2500 SUBURBAN 1995-1999
GMC C3500 PICKUP 1995-2002
GMC K1500 PICKUP 1995-1999
GMC K1500 SUBURBAN 1995-1999
GMC K2500 PICKUP 1995-2000
GMC K2500 SUBURBAN 1995-1999
GMC K3500 1995-2000
GMC SAVANA 1500 2003-2013
GMC SAVANA 2500 2003-2014
GMC SAVANA 3500 2003-2014
GMC SAVANA 4500 2009-2013
GMC SIERRA 3500 2002
GMC YUKON 1995-1999
JEEP CHEROKEE 1998-2001
JEEP LIBERTY 2002-2005
JEEP WRANGLER 2000-2005
OLDSMOBILE ALERO 1999-2004
OLDSMOBILE CUTLASS 1998-1999
OLDSMOBILE CUTLASS SUPREME 1989-1991
OLDSMOBILE INTRIGUE 1998-2001
OLDSMOBILE SILHOUETTE 1990-2000
PONTIAC GRAND AM 1999-2005
PONTIAC GRAND PRIX 1988-2003
PONTIAC MONTANA 1999-2000
PONTIAC TRANS SPORT 1991-1998

Compatible vehicles

• 1998 Jeep Cherokee

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Supports: No

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Jeep parts

Browse all Jeep replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
