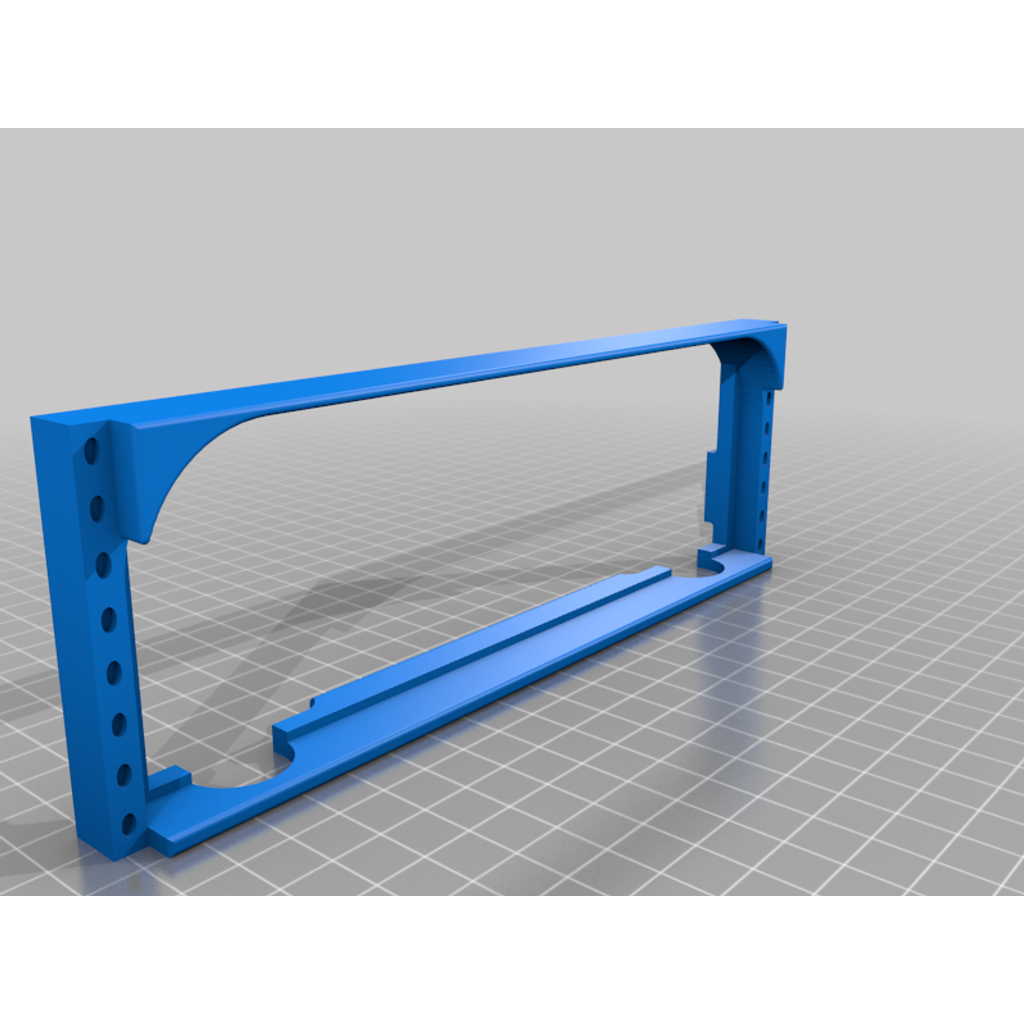

Hvac Control And Obc Relocation Mount Bezel – 1990-1999 Bmw 3 Series E36

Replace a broken or missing hvac control and obc relocation mount bezel on your 1990-1999 Bmw 3 Series E36 with this 3D-printed part, produced to order by PartsRemade.

About this part

This iteration, based on the original design by Szikra44, was created from scratch using Fusion 360 and includes a wider interface where it joins to the backside of the instrument panel, as well as as a series of holes along the flanges to increase surface area for a stronger adhesive bond. The bezel features are rounded to provide a factory appearance and the retainer features that lock the HVAC controller and OBC (On-Board Computer) have been adjusted to provide a snug fit.

Post processing included sanding the visible surfaces smooth and painting with several thin coats of Rust-oleum textured 7220 black spray paint to closely match the factory texture of surrounding components.

Note: Installation requires permanent modification to the factory switch/cigarette lighter panel.

This print is intended to be used for relocating the HVAC controller from its factory location to make room for double-DIN head unit installations.

Additional prints for this project can be found here:

https://www.thingiverse.com/thing:6506610
https://www.thingiverse.com/thing:6506637

Compatible vehicles

• 1990-1999 Bmw 3 Series E36

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More BMW parts

Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
